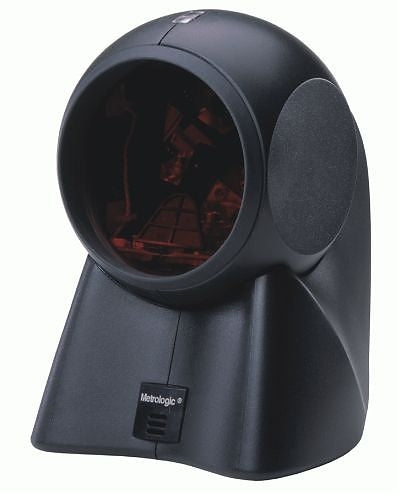

The MS7120—the all-time, best-selling hands-free omnidirectional laser scanner—presents an innovative, elegant and affordable solution for convenience retail applications where counter space is at a premium. Recipient of multiple design honors, the MS7120 has an award-winning shape that enables hand-held scanning of large, bulky items.
- 20 scan line omnidirectional pattern: Provides aggressive scanning as an additional benefit to hand presentation applications
- Single Line Option: With the push of a button, switch to a targeted scan ideal for menu scanning
- Adjustable scan head: Ability to tilt scanner 30º for targeted scanning or larger products
- Flash ROM: Protects infrastructure investment - update firmware from any PC with MetroSet®2 software provided free from Metrologic
- EAS: Deactivate an EAS tag and decode a bar code in a single scan
Scanning
- Scanner type: 1D
- Light levels (direct sunlight): 0 - 4842 lx
- Wavelength: 650 nm
Ports & interfaces
- Standard interfaces: RS-232
Performance
- Product colour: Black
- Certification: FCC Part 15, ICES-003, EN55022 Class B, ROHS, CE, UL
Power
- Input voltage: 5 V
- Power consumption: 180 mA
Weight & dimensions
- Width: 102 mm
- Depth: 105 mm
- Height: 150 mm
- Weight: 400 g
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 5 - 95 %
- Storage temperature (T-T): -40 - 60 °C
Logistics data
- Harmonized System (HS) code: 84716070
