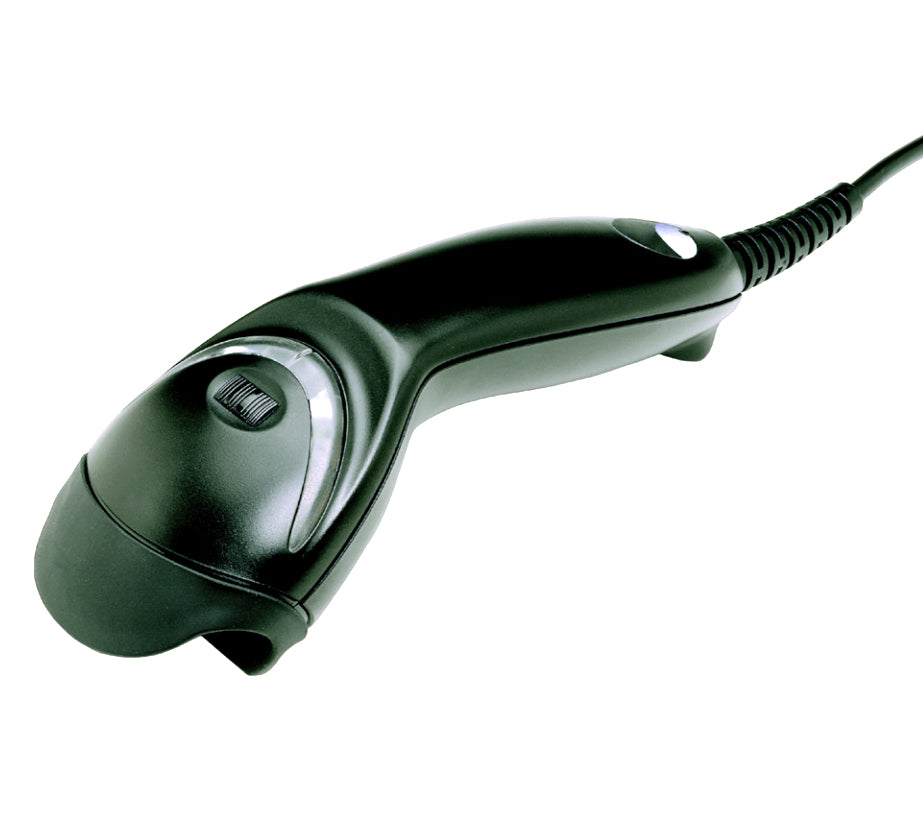

The MS5145 Eclipse is a single-line, hand-held laser scanner. Honeywell’s patented CodeGate® technology allows the user to easily target the desired bar code and complete data transmission with a simple press of a button, making Eclipse a perfect selection for menu scanning, point-of-sale, document processing and inventory control.
CodeGate: Ideal for menu scanning applications
CodeSense: Automatically switches from “pulse mode” to continuous beaming when a bar code is detected
Powerlink cables: Uses the same user-replaceable cables and power supplies as Voyager, Orbit and Cubit
Flash ROM: Update firmware from any PC via MetroSet2 software provided by Metrologic
OPOS and JPOS system compatible: Easily adaptable to any end-user system environment
Scanning
- Type: Handheld bar code reader
- Scanner type: 1D
- Sensor type: Laser
- 2D (matrix & stacked) barcodes supported: Not supported
- Working distance: 1500 mm
- Read rate (max): 42 reads/s
- Light levels (direct sunlight): 0 - 4842 lx
- Wavelength: 650 nm
- Tilt reading angle: 0 - 52 °
- Pitch reading angle: 0 - 68 °
Ports & interfaces
- Connectivity technology: Wired
- Standard interfaces: RS-232
- Cable length: 2.1 m
Performance
- Product colour: Black
- LED indicators: Yes
- Certification: 1D, GS1, FCC Part 15, ICES-003, RoHS, EN55022 Class B
Power
- Power source type: DC
- Power consumption (typical): 0.672 W
- Input voltage: 5 V
- Power consumption: 675 mA
Weight & dimensions
- Width: 63 mm
- Depth: 169 mm
- Height: 51 mm
- Weight: 100 g
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 5 - 95 %
- Storage temperature (T-T): -40 - 60 °C
Technical details
- Compliance certificates: RoHS
Logistics data
- Harmonized System (HS) code: 84716070
