The MS3780 Fusion combines omnidirectional and single-line laser bar code scanning into a lightweight and ergonomic hand-held form factor. The 20-line scan pattern provides superior scanning over existing single-line scanners, making Fusion ideal for medium-volume retailers including specialty stores, pharmacies, liquor stores, and convenience stores.
- Primary omnidirectional scan pattern: Aggressive scanning of bar codes in any orientation, increasing throughput
- Secondary single-line scan pattern: With a push of a button, switch to a targeted single-line for menu scanning

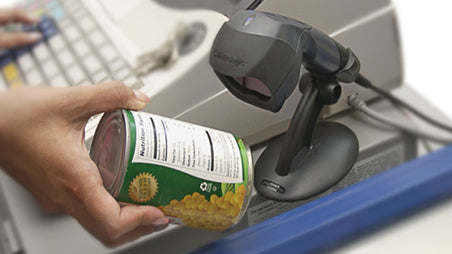

- Automatic stand detection: Hands-free operation for presentation scanning, reducing operator fatigue
- Sleep mode with IR wake up: Multiple sleep modes reduce power consumption, extending life and lowering cost of operation
- Optional EAS integration: Deactivate an EAS tag and decode a bar code in a single scan.
Scanning
- Type: Handheld bar code reader
- Scanner type: 1D
- Sensor type: Laser
- Wavelength: 650 nm
- Pitch reading angle: -60 - 60 °
Ports & interfaces
- Connectivity technology: Wired
- Standard interfaces: USB
Performance
- Product colour: Black
- Certification: FCC Part 15, ICES-003, EN55022 Class B
Power
- Power source type: DC
- Input voltage: 5 V
Weight & dimensions
- Width: 189 mm
- Depth: 65 mm
- Height: 73 mm
- Weight: 195 g
Operational conditions
- Operating temperature (T-T): -20 - 40 °C
- Storage temperature (T-T): -40 - 60 °C
- Operating relative humidity (H-H): 5 - 95 %
Logistics data
- Harmonized System (HS) code: 84716070
