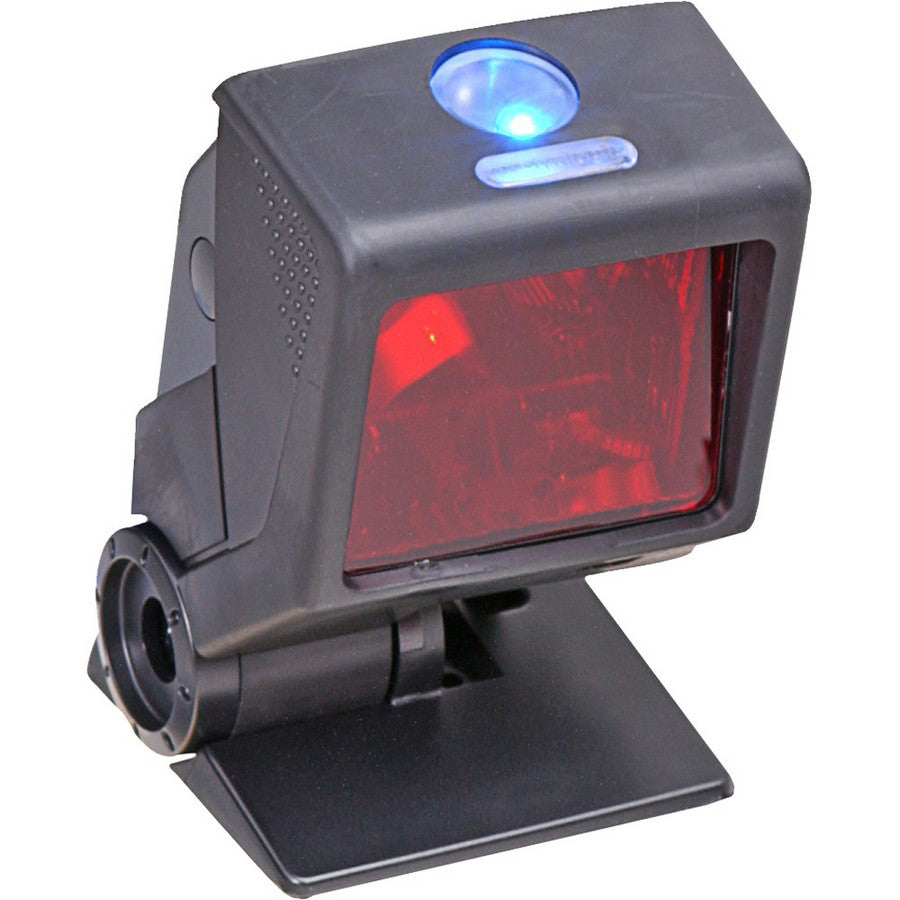

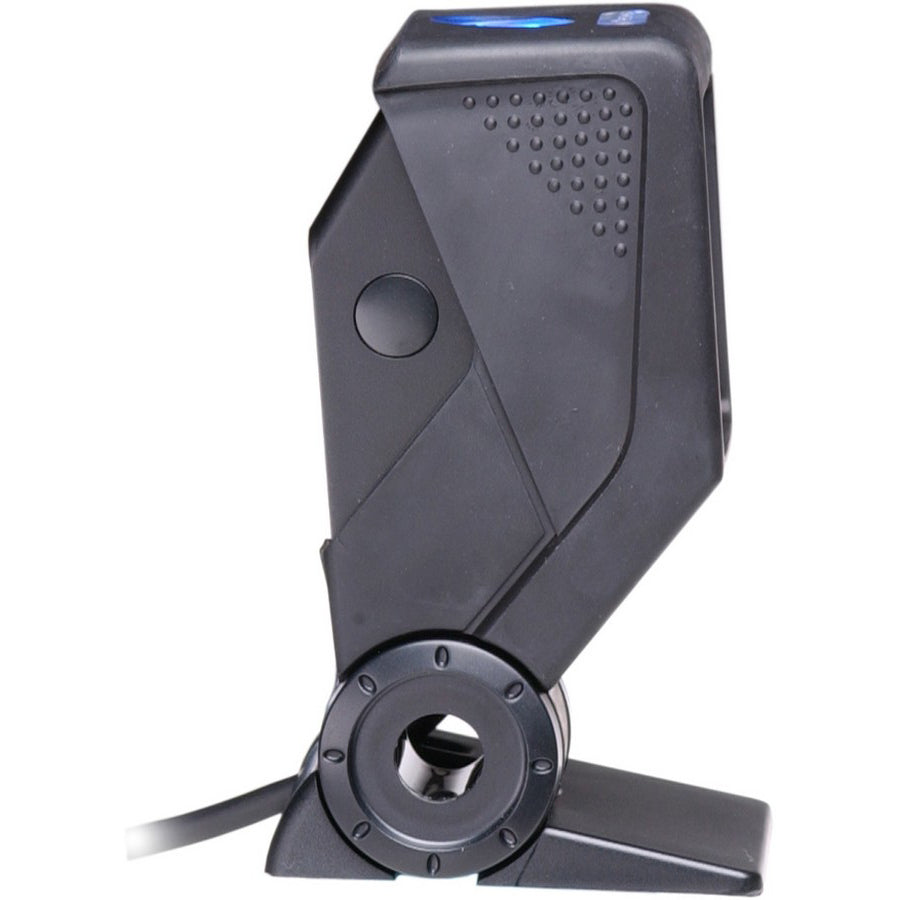

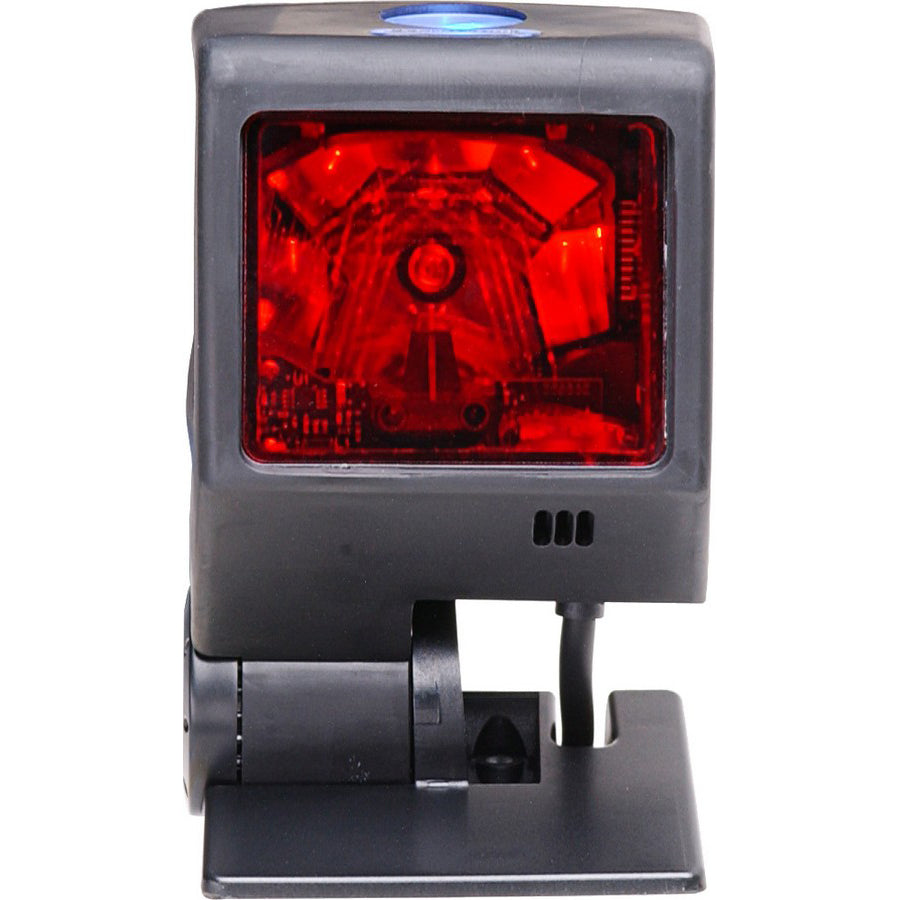

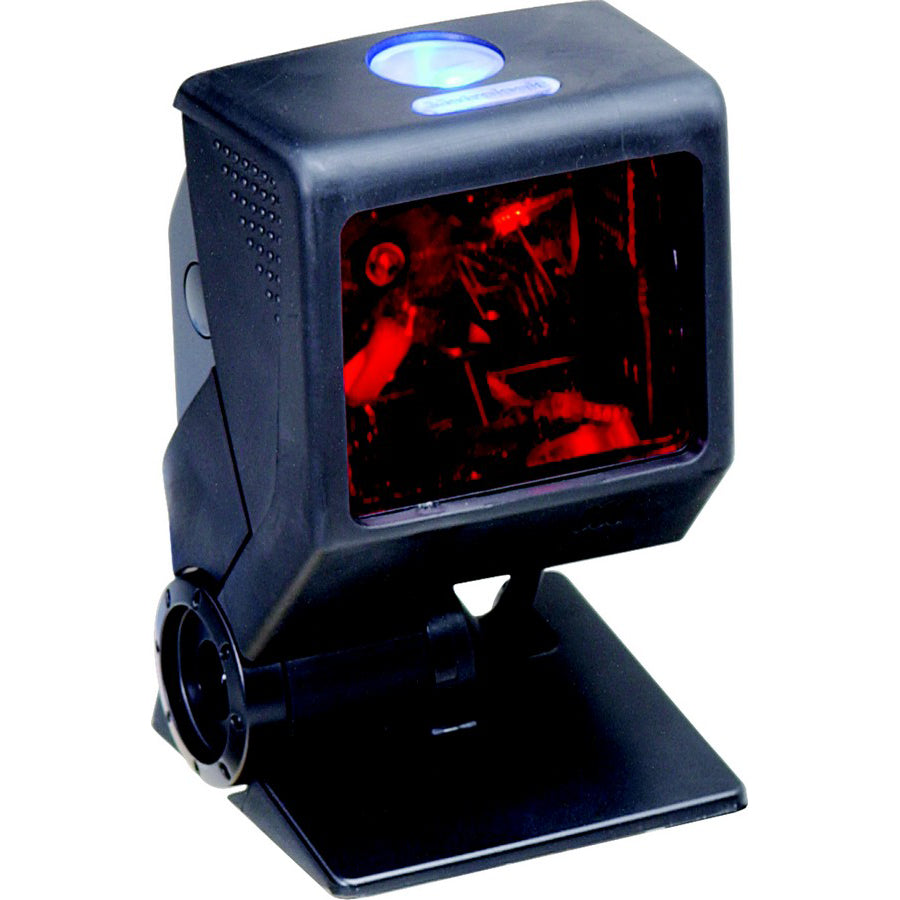

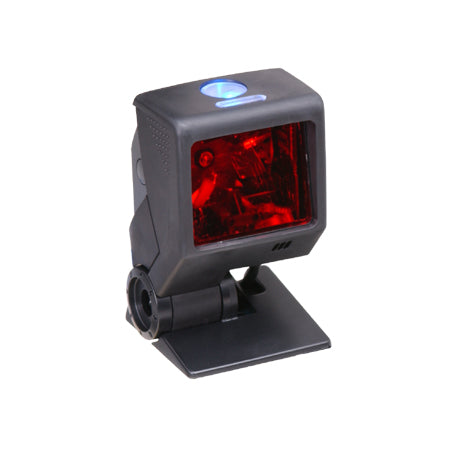

The MS3580 QuantumT provides retailers with industry-leading omnidirectional scan performance and optional single-line scanning in a compact form factor. Patented CodeGate technology saves time and reduces unwanted scans by offering a single-line mode for scanning menu-style codes. A small footprint and numerous stand options minimize required counter space, increasing available room for merchandise and advertisement displays.
Scanning
- Type: Fixed bar code reader
- Sensor type: Laser
- Linear (1D) barcodes supported: GS1-128 (UCC/EAN-128)
- 2D (matrix & stacked) barcodes supported: Not supported
- Light levels (direct sunlight): 0 - 4842 lx
- Wavelength: 650 nm
- Tilt reading angle: 0 - 360 °
- Pitch reading angle: 0 - 60 °
- Yaw reading angle: 0 - 60 °
- Maximum scan width: 279 mm
Ports & interfaces
- Connectivity technology: Wired
- Standard interfaces: USB
Performance
- Product colour: Black
- Buzzer: Yes
- Certification: IEC60825-1, EN60825-1, FCC, ICES, EN55022
Power
- Power source type: AC
- Power consumption (typical): 1.4 W
- Power consumption (standby): 1.2 W
- Input voltage: 5 V
Weight & dimensions
- Width: 67 mm
- Depth: 66 mm
- Height: 108 mm
- Weight: 170 g
Operational conditions
- Storage temperature (T-T): -40 - 60 °C
- Operating relative humidity (H-H): 5 - 95 %
- Operating temperature (T-T): -20 - 40 °C
Logistics data
- Harmonized System (HS) code: 84716070
