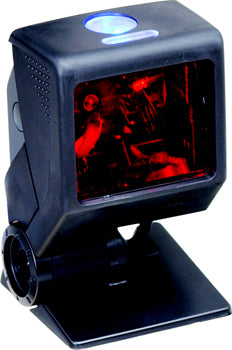

The MS3580 QuantumT provides retailers with industry-leading omnidirectional scan performance and optional single-line scanning in a compact form factor. Patented CodeGate® technology saves time and reduces unwanted scans by offering a single-line mode for scanning menu-style codes. A small footprint and numerous stand options minimize required counter space, increasing available room for merchandise and advertisement displays.
- Omnidirectional/Single-line mode: Alternate between 20 scan lines for omnidirectional scanning and a single scan line for menu scanning
- Sleep Mode with IR wake-up: Multiple sleep modes reduce power consumption, extending life and lowering cost of operation
- Small footprint: Keeps valuable counter space clear
- Optional stands: Customize the height of the scanner for unique applications
- OPOS and JPOS system compatible: QuantumT ® is compatible with systems running the popular industry standards
Scanning
- Working distance: 1500 mm
- Wavelength: 650 nm
- Decoding standards: 1D, GS1
- Scan speed: 1650 sec/page
Ports & interfaces
- Standard interfaces: USB,RS-232
Performance
- Product colour: Black
- Certification: FCC Part 15, class B, ROHS, CE UL
Power
- Input voltage: 5 V
Weight & dimensions
- Weight: 170 g
Operational conditions
- Operating relative humidity (H-H): 5 - 95 %
- Storage temperature (T-T): -40 - 60 °C
- Operating temperature (T-T): -20 - 40 °C
Logistics data
- Harmonized System (HS) code: 84716070
Other features
- Dimensions (WxDxH): 66 x 67 x 108 mm
- Light source: 4842 Lux
