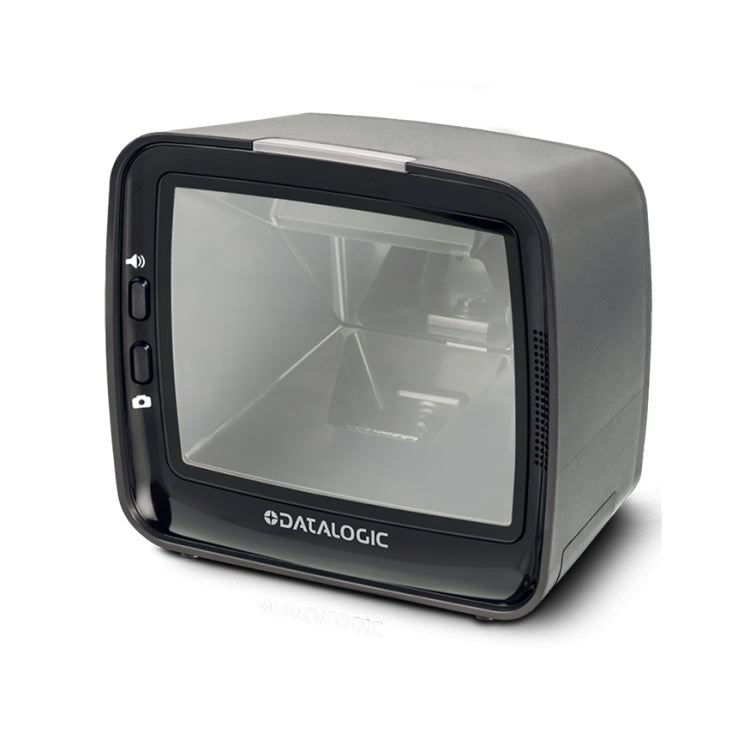

Datalogic Magellan 3450VSi, Built-in bar code reader, 1D/2D, Laser, Aztec Code, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked Omnidirectional, MicroPDF417, PDF417, 14 cm, 0 - 86100 lx

DATALOGICSKU: M3450-010210-07104
1D/2D, RS-232, IP52, 152x137x94mm, 600g, Black/Grey

Pris:
Reapris5,591.72 kr eks. mva.
Lager:
Preliminärt i lager 22.09.2025

Overview

The Magellan 3450VSi scanner offers many of the features that have made the Magellan family of imaging scanners so successful, including seamless 1D and 2D decoding, solid state electronics, image capture, compact size and easy service access for software updates or configuration changes. It also benefits from the advances made in imaging, illumination, processors and software that Datalogic has brought to the multi-plane market with the Magellan 9800i and 9400i scanners. Improvements in both hardware and software enable a significant reduction in the brightness of the illumination while improving throughput, depth of field, and speed to read. The gentle, unobtrusive illumination reduces both direct and reflected illumination visible to users. This ensures a comfortable work environment and all day productivity. The Magellan 3450VSi scanner also has a larger, more intuitive scan zone, enabling more comfortable and efficient sweep scanning.

Scanning

  • Type: Built-in bar code reader
  • Scanner type: 1D/2D
  • 2D (matrix & stacked) barcodes supported: Aztec Code,GS1 DataBar Expanded Stacked,GS1 DataBar Stacked Omnidirectional,MicroPDF417,PDF417
  • Sensor type: Laser
  • Working distance: 140 mm
  • Light levels (direct sunlight): 0 - 86100 lx
  • Tilt reading angle: 0 - 360 °
  • Pitch reading angle: -65 - 65 °
  • Yaw reading angle: -75 - 75 °

Ports & interfaces

  • Connectivity technology: Wired
  • Standard interfaces: RS-232
  • Cable length: 4.5 m

Performance

  • Product colour: Black,Grey
  • International Protection (IP) code: IP52
  • LED indicators: Yes
  • Buzzer: Yes
  • Certification: EN62471, IEC62471

Power

  • Power source type: AC
  • Power consumption (typical): 3.8 W
  • Power consumption (standby): 2.6 W
  • Input voltage: 100-240 V
  • Input frequency: 50-60 Hz

Weight & dimensions

  • Width: 152 mm
  • Depth: 137 mm
  • Height: 94 mm
  • Weight: 600 g

Operational conditions

  • Operating relative humidity (H-H): 5 - 95 %
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -40 - 70 °C

Technical details

  • Compliance certificates: RoHS

Logistics data

  • Harmonized System (HS) code: 84716070
+
