Durable, rugged direct thermal printer with intuitive set-up and interface for premium printing performance for transportation and logistics, retail, and manufacturing applications.

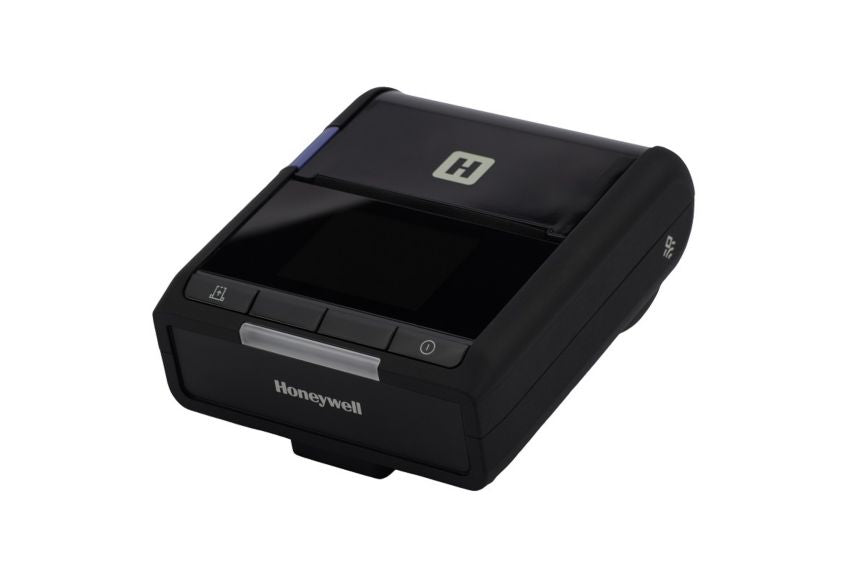

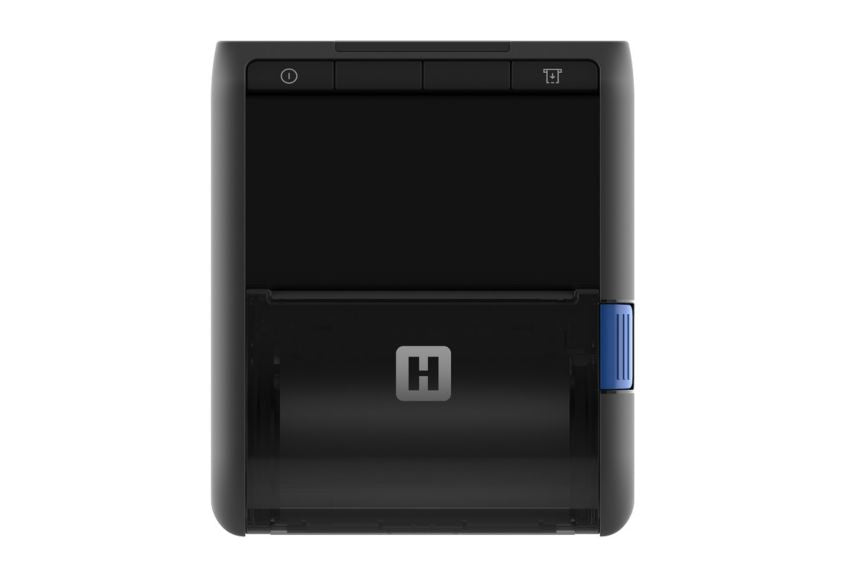

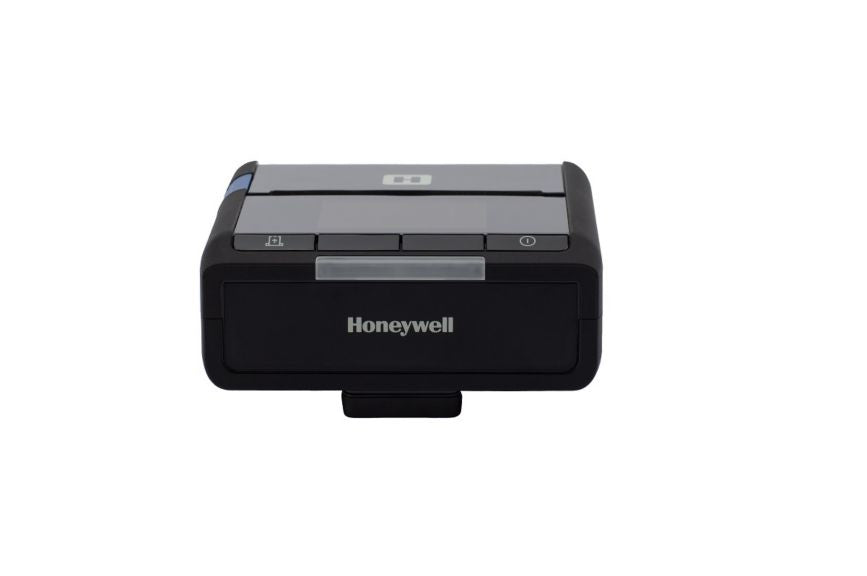

LNX3 mobile label and receipt printer brings the power and reliability of Honeywell printers into a durable, lightweight, direct thermal printer meeting or exceeding industry printer specifications.
The large 2.4 inch color screen display streamlines configuration and operation at the touch of a button and is backed up by a fast energy-saving processor and powerful printheads and high-performance motors.
With leading print speeds up to 5ips, the LNX3 printer supports large-volume label and receipt printing requirements in longer intervals helping boost productivity. A removable high-capacity battery and precise power management system provides uninterrupted printing across long operating and standby times.
Effortlessly connect with MFi, NFC pairing, and both Bluetooth® and Wi-Fi options. Print from almost any device with Windows®, iOS, and Android™ compatibility.
Drive productivity and improve inventory management with the LNX3 Mobile Printer.
Printing
- Print technology: Direct thermal
- Colour: No
- Maximum resolution: 203 x 203 DPI
- Number of printable dots: 8 dot
- Print speed: 127 mm/sec
- Printing characters: 2D barcode
Paper handling
- Maximum roll diameter: 43 mm
- Media thickness: 0.06 - 0.18 mm
- Maximum media length: 1016 mm
Ports & interfaces
- Connectivity technology: Wireless
- Wi-Fi: Yes
- Wi-Fi standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n)
- Bluetooth: Yes
- Bluetooth version: 5.0
- USB port: Yes
- USB 2.0 ports quantity: 1
Performance
- Page description languages: CPCL-native,ESC P,ESC/POS,ZPL II
- Internal memory: 256 MB
- Flash memory: 256 MB
- Built-in barcodes: Code 11,Code 128 (A/B/C),Code 39,EAN13,EAN8,MSI,PDF417,QR Code,UPC-E
- Built-in processor: Yes
- Image formats supported: BMP
Design
- Product colour: Black
- Built-in display: Yes
- Display: LED
- Display diagonal: 2.4 "
- Colour display: Yes
- Backlight display: Yes
- Control type: Buttons
Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- AC adapter output voltage: 5 V
- AC adapter output current: 2 A
- Battery type: Built-in battery
- Battery technology: Lithium-Ion (Li-Ion)
- Battery capacity: 2800 mAh
- Battery voltage: 7.4 V
Battery
- Rechargeable battery: Yes
Operational conditions
- Storage relative humidity (H-H): 10 - 90 %
- Storage temperature (T-T): -20 - 70 °C
- Operating temperature (T-T): -15 - 55 °C
Weight & dimensions
- Width: 117 mm
- Depth: 137 mm
- Height: 55 mm
- Weight: 500 g
Packaging content
- Cables included: USB
- Batteries included: Yes
- AC adapter included: Yes
- Quick start guide: Yes
- Carrying case: Yes
Technical details
- Compliance certificates: CE,Federal Communications Commission (FCC),UKCA
- Sustainability compliance: Yes
