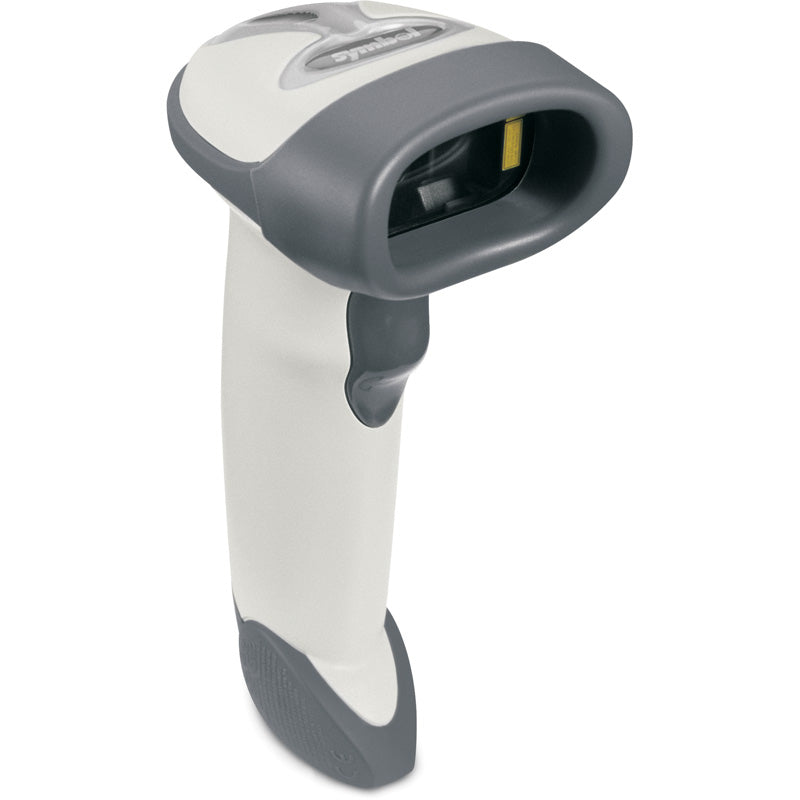

The affordable LS2208 handheld bar code scanner provides fast, reliable scanning in an ergonomic, lightweight form. The wide working range —from near-contact to 17 inches — makes this device ideal for retail, hospital, education or government settings. Multiple on-board interfaces ensure integration with a variety of host systems
Durable, single-board construction
Meets stringent 5-ft drop tests.
Scratch-resistant tempered glass exit window
Is designed for continuous use.
Accurate first-time capture of 1D bar codes
Increased productivity, resulting in shorter check-out lines and better customer service.
Wide working range
Delivers optimal performance from contact to 17 in (43 cm).
Multiple on-board interfaces
Simplify installation and integration and ensures future compatibility.
Plug-and-play, with universal cable
Means rapid deployment, with a single cable connecting to any computing environment.
Intuitive design
Minimizes setup and training time.
Ergonomic, lightweight design
Reduces user fatigue with sleek, balanced form for maximum comfort and productivity.
Hands-free Intellistand
Enables presentation scanning and easy switching between hands-free and handheld modes.
Advanced Data Formatting (ADF)
Enables users to modify data prior to sending to host computer, reducing costly modifications to the host software.
Scanning
- Sensor type: Laser
- Tilt reading angle: -30 - 30 °
- Pitch reading angle: -65 - 65 °
- Yaw reading angle: -60 - 60 °
- Decoding standards: UPC/EAN UPC/EAN + Supplementals UCC/EAN 128 Code 39 Code 39 Full ASCII Code 39 TriOptic Code 128 Code 128 Full ASCII Codabar Interleaved 2/5 Discrete 2/5 Code 93 MSI Code 11 IATA GS1 DataBar
- Scan speed: 100 sec/page
Ports & interfaces
- Standard interfaces: USB
Performance
- Product colour: White
Power
- Input voltage: 5 V
- Power consumption: 130 mA
Weight & dimensions
- Weight: 146 g
Operational conditions
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 5 - 95 %
- Operating temperature (T-T): 0 - 50 °C
Logistics data
- Harmonized System (HS) code: 84716070
Other features
- Light source: 650nm
- Dimensions (WxDxH): 63 x 84 x 152 mm
- Safety: UL 60950-1, C22.2 No. 60950-1, EN 60950-1, IEC 60950-1
- Electromagnetic emissions: FCC Part 15 Class B, ICES 003 Class B
