THE NEXT GENERATION IN 1D SCANNING

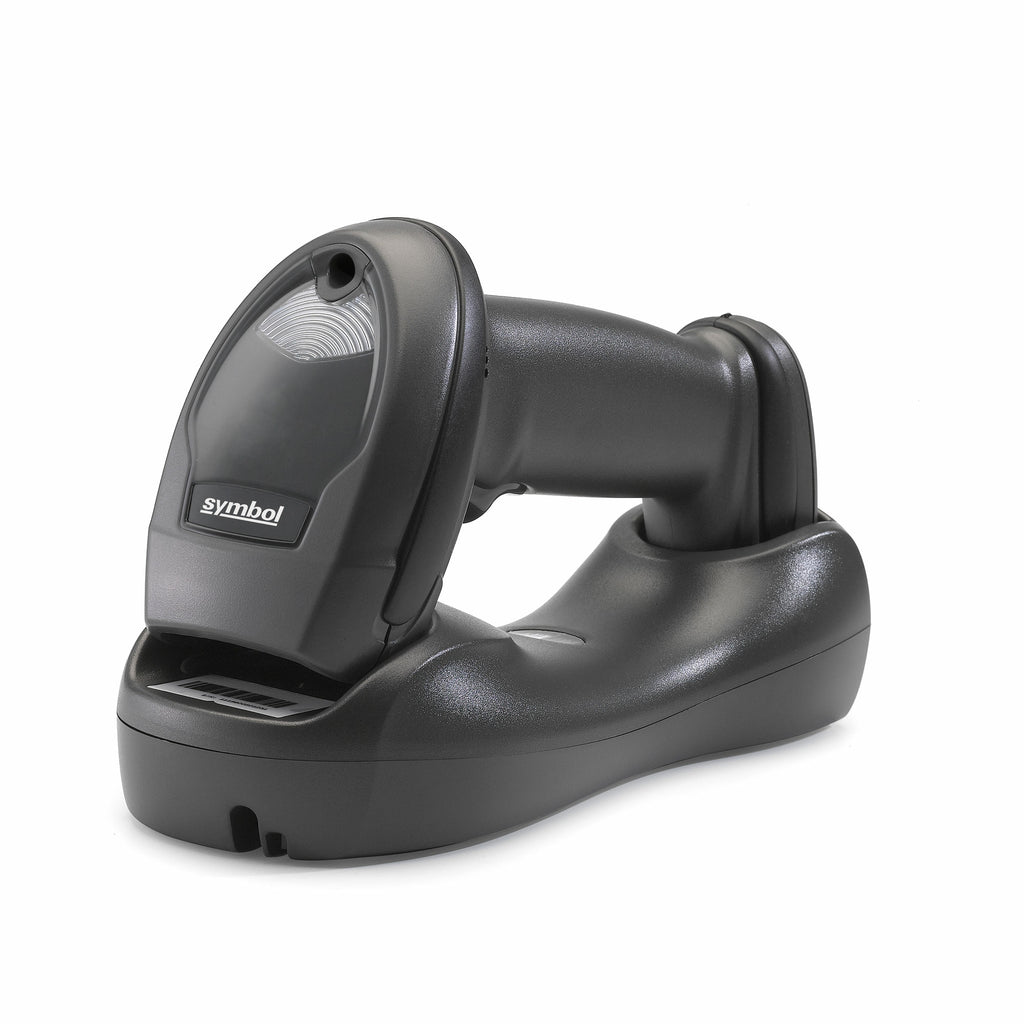

Built for all day and everyday use, the LI4278 offers cordless freedom with Bluetooth compatibility. It also offers better encryption for improved security and better overall wireless performance.
The LI4278 is backward compatible with its key accessory — the cradle — which works with its cousins, the LS4278 and DS6878. Superior battery power management delivers the largest number of scans per battery charge to support scan intensive applications. You can use it in dusty and wet environments and it can survive a 6 foot/1.8 m drop.
Scanning
- Read rate (max): 547 reads/s
- Light levels (direct sunlight): 0 - 108 lx
- Wavelength: 612 nm
- Tilt reading angle: 0 - 45 °
- Pitch reading angle: 0 - 65 °
- Yaw reading angle: 0 - 65 °
- Maximum scan width: 100 mm
- Tilt angle range: 0 - 35 °
- Maximum range: 6 m
- Decoding standards: UPC/EAN
Ports & interfaces
- Standard interfaces: RS-232,RS-485,USB,Keyboard wedge
- Bluetooth: Yes
- Cable length: 1.8 m
Performance
- Product colour: Black
- Housing material: Plastic
- International Protection (IP) code: IP54
- LED indicators: Charging,Power
- Certification: EMC FCC Part 15 Class B, ICES 003 Class B, IEC 60601-1-2 RoHS 2002/95/EEC
Power
- Battery technology: Lithium Polymer (LiPo)
Weight & dimensions
- Weight: 224 g
Packaging data
- Cables included: RS-232
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 5 - 85 %
Logistics data
- Harmonized System (HS) code: 84716070
Other features
- Shockproof: No
- Light source: LED
- Safety: C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, UL 60950- 1 LED Class 1
- Display: 0
- Dimensions (WxDxH): 70 x 186 x 98 mm
