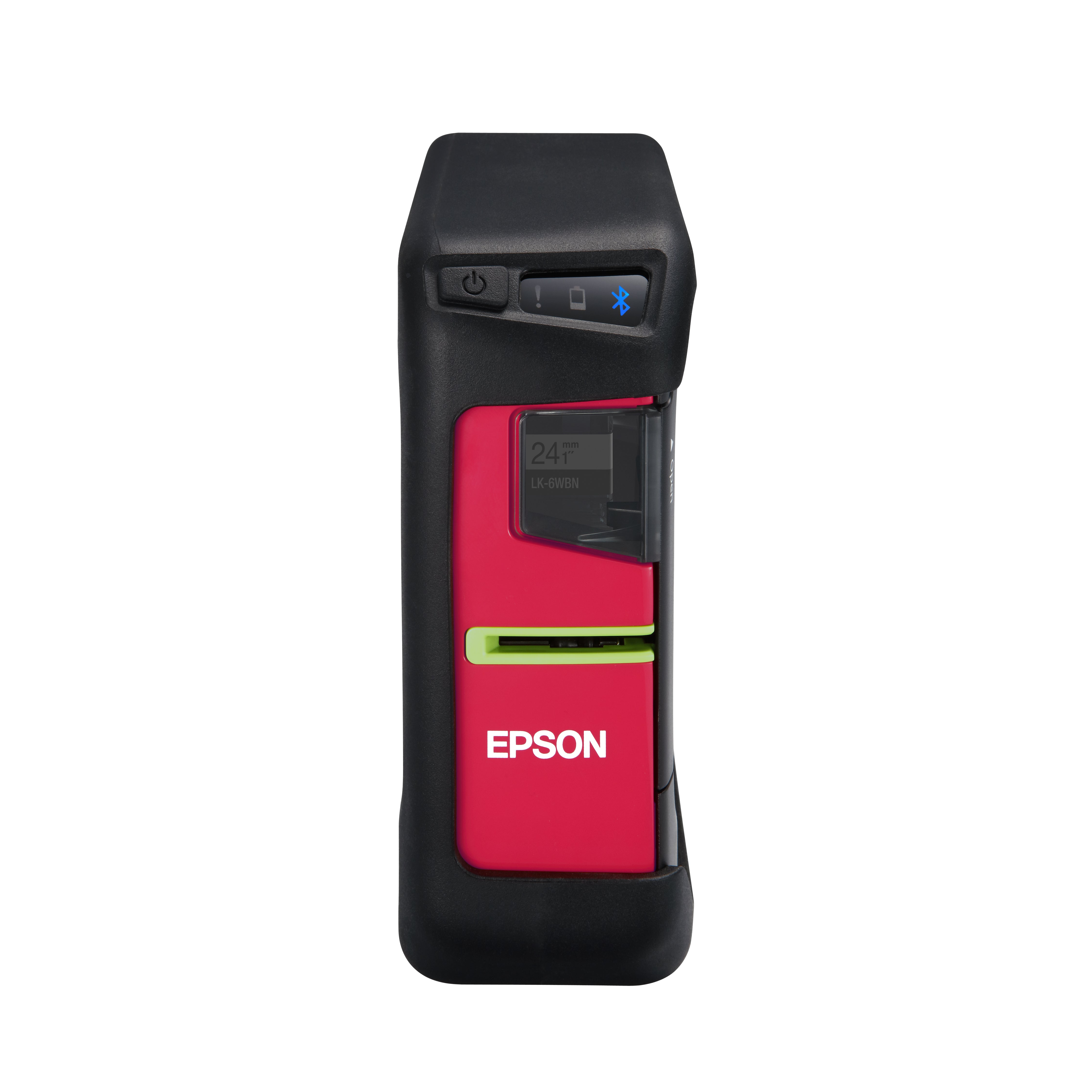

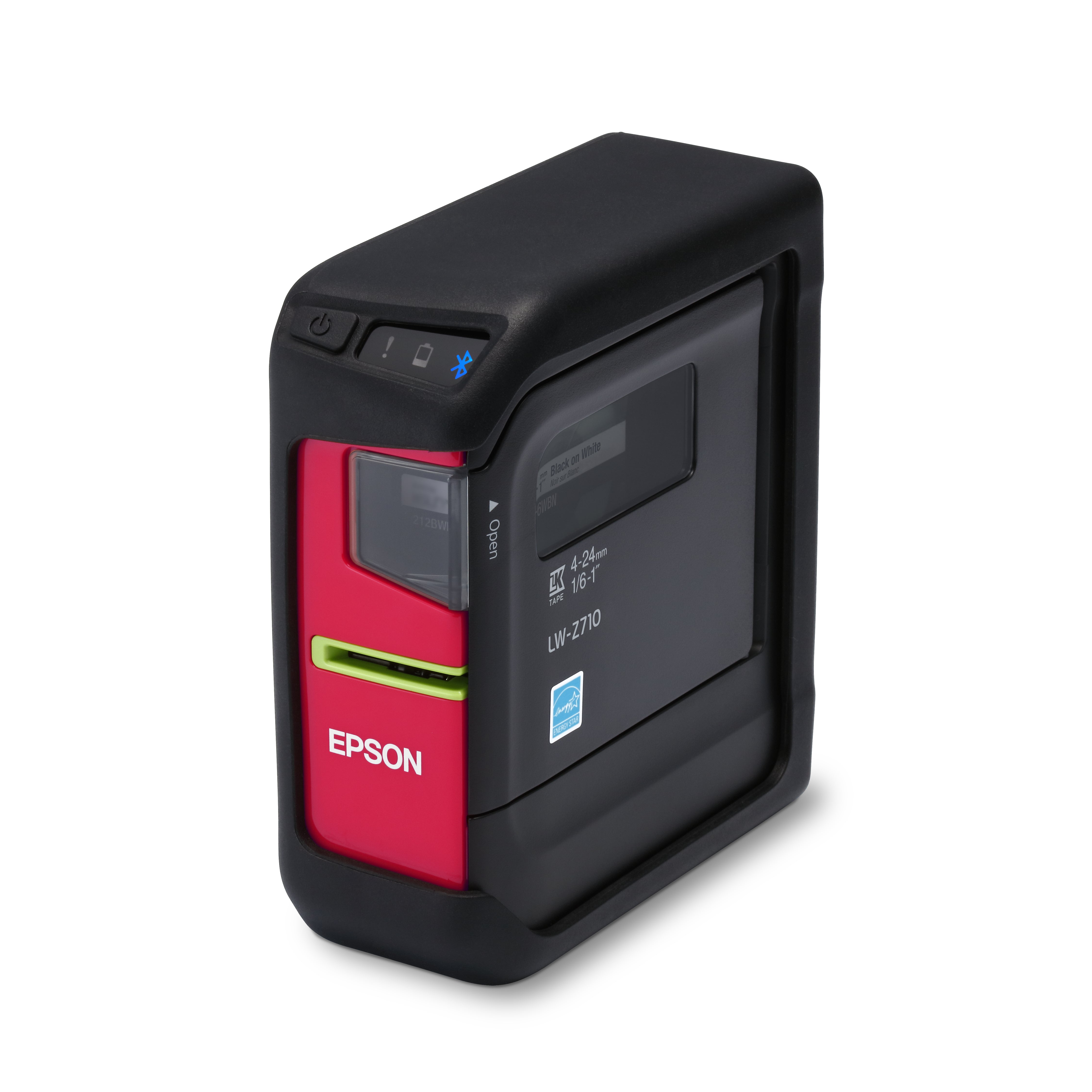

Smartphone and tablet label maker
With its flexible connectivity options, you can either print from your computer, or download the free Epson iLabel app2 to create and print labels directly from your iOS or Android device. Thanks to its Bluetooth connectivity1, you can connect remotely anywhere without the need for a network and share the label maker with multiple users.
Easy-to-use
The user can create labels on the spot - quickly, affordably and accurately. These can easily be applied to electrical, communication cables and equipment (e.g. within server rooms, patch panels).
Fast, quality printing
Featuring 180dpi print quality, labels are crisp and clear. The LW-Z710P also offers print speeds of up to 15mm/sec.
Compact and portable

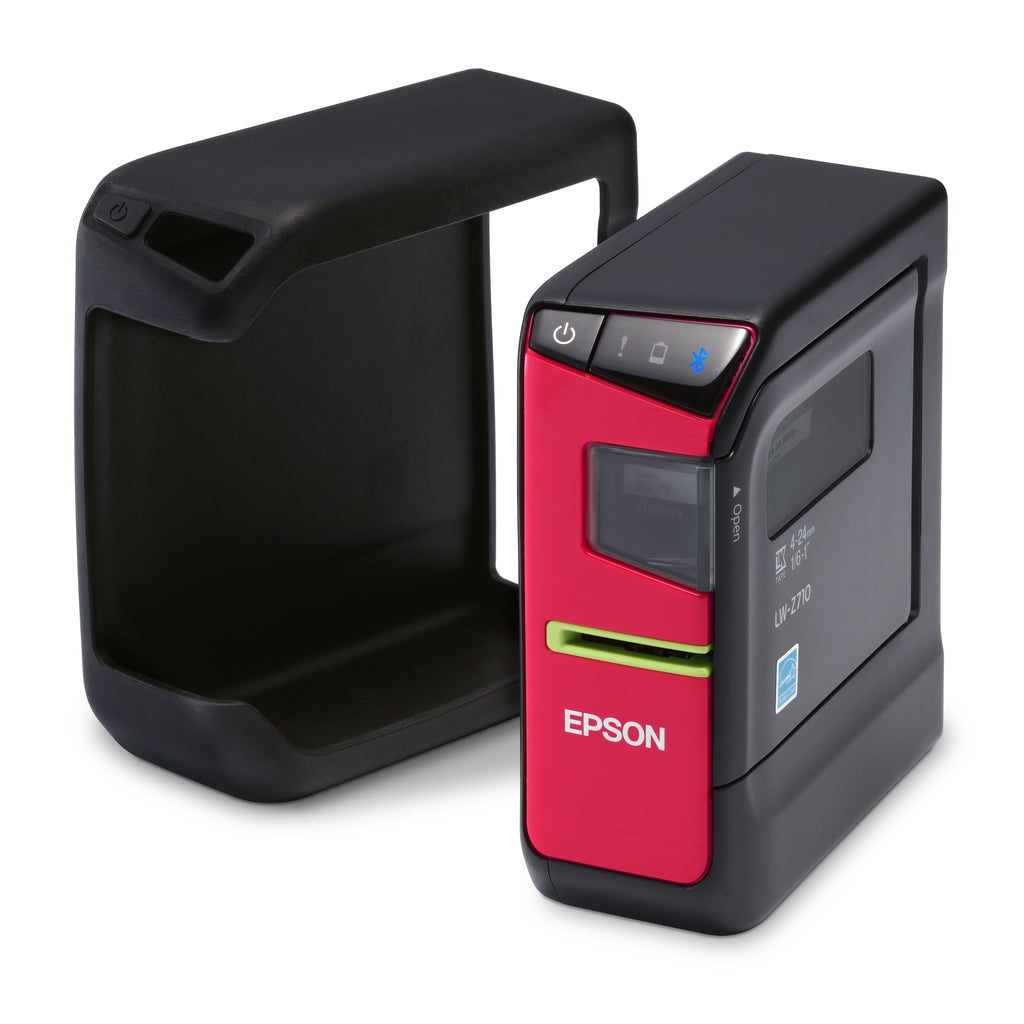

It's lightweight, easy to carry and the strong and durable design is protected by a rugged, soft silicon casing.
Battery and mains powered
It comes with a handy AC adapter or can be used with six AA batteries, so you'll always have power when you need it.
Printing
- Print technology: Thermal transfer
- Maximum resolution: 180 x 180 DPI
- Number of printable dots: 128 dot
- Print speed: 15 mm/sec
- Maximum printing width: 24 mm
- Maximum print height: 18 mm
- Flag style printing: Yes
- Mirror printing: Yes
- Vertical printing: Yes
- Wire wrap printing: Yes
- Text style: Bold,Italic,Normal,Shadow
- Text alignment: Center,Justify,Left,Manual,Right
Paper handling
- Autocutter: Yes
Ports & interfaces
- Connectivity technology: Wired & Wireless
- Bluetooth: Yes
- USB port: Yes
- USB 2.0 ports quantity: 1
Performance
- Built-in barcodes: Code 128 (A/B/C),Code 39,Data Matrix,EAN128,EAN13,EAN8,GS1-128,GS1 DataBar,ITF,MaxiCode,PDF417,QR Code,UPC-A,UPC-E
- Number of symbols: 466
- Fixed length: Yes
- Tape width: 24 mm
- Cutter: Yes
- Alphanumeric memory: Depends on the user's PC
- Number of printing lines (max): Variable
- Tape size detection: Yes
- Open cover detection: Yes
Design
- Product colour: Black,Red
Power
- Power consumption (printing): 12 W
- Power consumption (off): 0.21 W
- Battery type: AA
- Number of batteries supported: 6
System requirements
- Minimum storage drive space: 100 MB
- Mobile operating systems supported: Android 4.2,iOS 5.0,iOS 6.0
- Minimum system requirements: XGA (1024 x 768)
- Windows operating systems supported: Windows 7,Windows 7 x64,Windows 8,Windows 8 x64,Windows Vista,Windows Vista x64,Windows XP
- Mac operating systems supported: Mac OS X 10.6 Snow Leopard
- Minimum display resolution requirement: 1024 x 768 pixels
Weight & dimensions
- Width: 54 mm
- Depth: 132 mm
- Height: 146 mm
- Weight: 440000 g
Packaging data
- Quantity per pack: 1 pc(s)
- Package width: 210 mm
- Package depth: 267 mm
- Package height: 88 mm
- Package weight: 1508 g
Packaging content
- Cables included: AC,USB
- Batteries included: No
- Bundled software: Epson Label Editor
- Warranty card: Yes
- AC adapter included: Yes
- Carrying case: Yes
- Manual: Yes
- Quick start guide: Yes
Logistics data
- Products per pallet (UK): 280 pc(s)
- Pallet weight (UK): 0 g
- Products per pallet layer: 30 pc(s)
- Products per pallet layer (UK): 40 pc(s)
- Pallet height (UK): 780 mm
- Pallet width (UK): 1000 mm
- Pallet length (UK): 1200 mm
- Harmonized System (HS) code: 84433210
- Pallet gross width: 800 mm
- Pallet gross length: 1200 mm
- Pallet gross height: 780 mm
- Pallet gross weight: 0 g
- Products per pallet: 210 pc(s)
- Master (outer) case width: 290 mm
- Master (outer) case length: 450 mm
- Master (outer) case height: 255 mm
- Master (outer) case gross weight: 8236 g
- Products per master (outer) case: 5 pc(s)
- Minimum order quantity: 5 pc(s)
Technical details
- Sustainability certificates: ENERGY STAR
- Battery level indicator: Yes
- Font size: Selectable
- Multi-block: Wählbar
- Autoincrement: 0-9, a-z, A-Z, Alphabetic, Numerical, Date, Time
- Feed button: 1
Other features
- Printing history: Yes
- Printing history features: Browsing
- Lanyard hole: Yes
- Number of frames: 86
- Number of tables: 8
- Country of origin: Philippines
