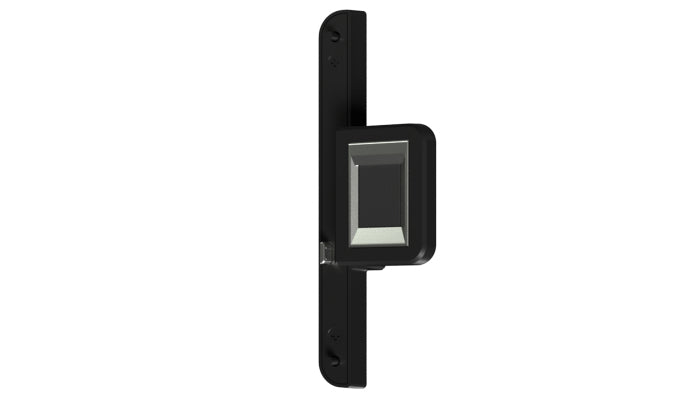

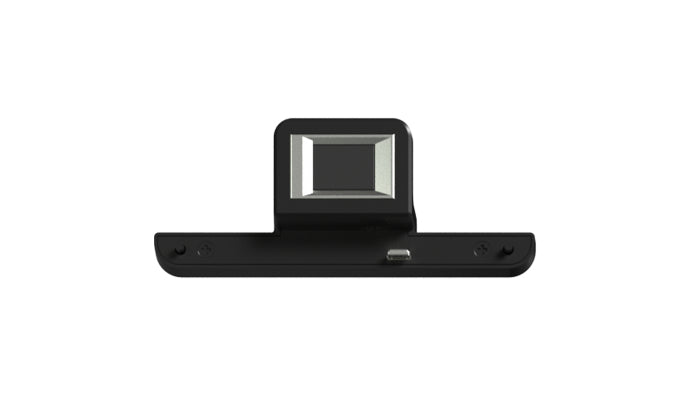

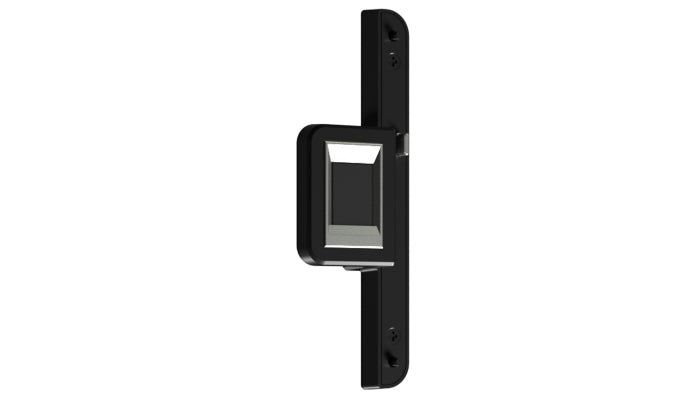

Elo’s Fingerprint Scanner delivers a fast and reliable way to use biometric authentication for individuals who require access to a device or building. From patient and doctor authentication to employee login, the reader seamlessly integrates with a variety of Elo displays via Elo Edge Connect technology. By using a capacitive sensor for scanning, the Fingerprint Scanner can withstand up to four million touches - providing the durability you need with high quality scans time after time.
Technical details
- Interface: Micro-USB
- Scan area: 12.8 x 18 mm
- Greyscale levels: 8
- Maximum scan resolution: 508 x 508 DPI
Weight & dimensions
- Width: 119.6 mm
- Depth: 43.7 mm
- Height: 25.3 mm
- Weight: 4 g
- Package width: 114 mm
- Package height: 69 mm
- Package depth: 175 mm
- Package weight: 150 g
Power
- USB powered: Yes
Colour
- Product colour: Black
Operational conditions
- Operating temperature (T-T): 10 - 40 °C
- Storage temperature (T-T): 0 - 50 °C
- Operating relative humidity (H-H): 20 - 80 %
- Storage relative humidity (H-H): 10 - 90 %
