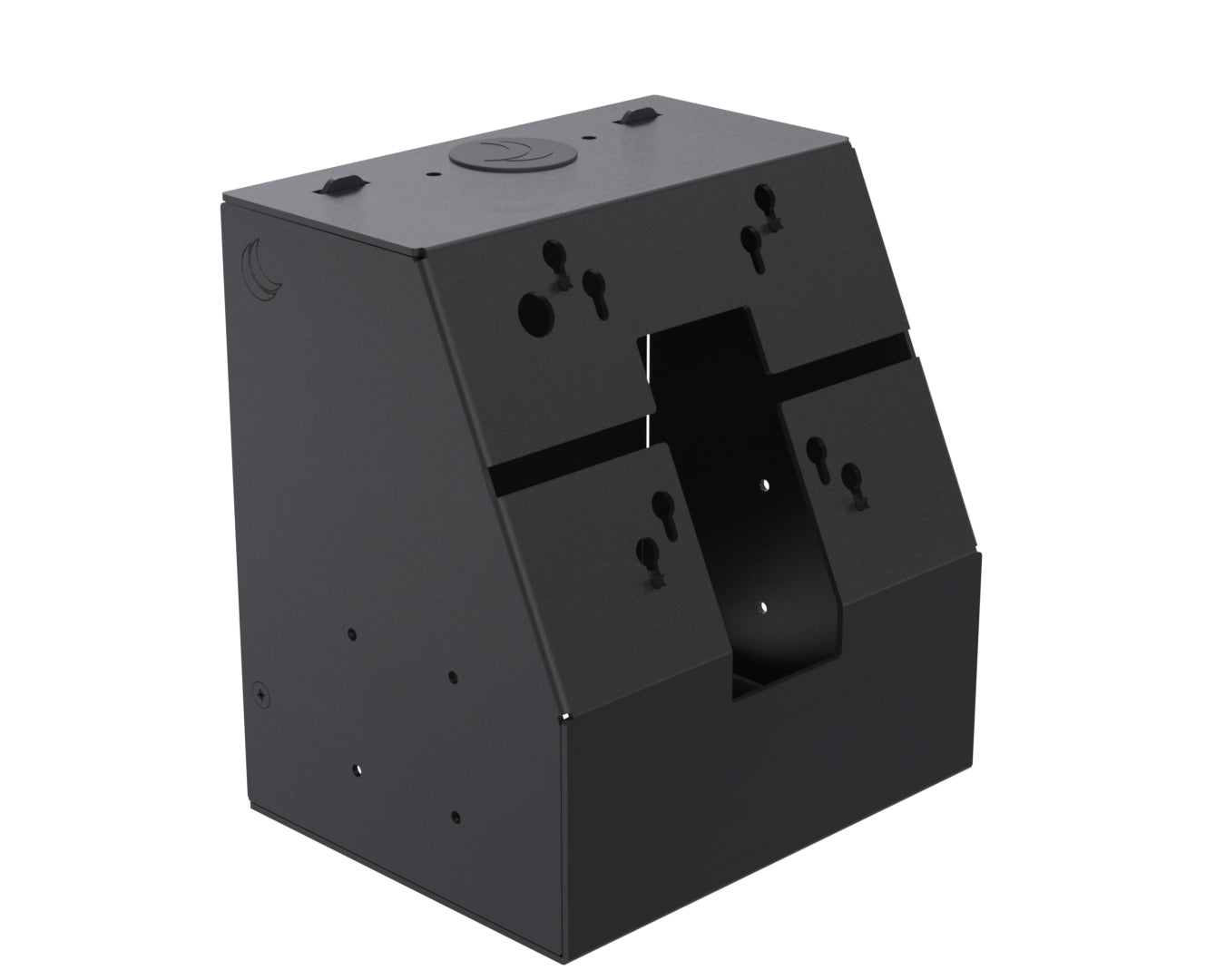

The kiosk top module is the heart of your kiosk solution whether floor, counter or wall mounted. Mount any VESA compatible screen or tablet from 10” to 32”. The configurable nature of the top module also allows for the attachment of a peripheral arm for example, the addition of a payment device. The module also can be configured for the addition of a camera or second screen, NFC reader, or traffic light.
Features
- Product type: Center module
- Product colour: Black
- Material: Metal
- Minimum VESA mount: 75 x 75 mm
- Maximum VESA mount: 100 x 100 mm
- Cable management: Yes
- Maximum screen size: 32 "
- Minimum screen size: 15 "
- Compatibility: GFS4470; GFS4500 Serie; H400; HSP-100; Magellan 1500i; Mc Print2-3; SRP-Q300; TCx 6145-1TN; TM T88; TM-M30 & TM-M30II; TSP143
Logistics data
- Harmonized System (HS) code: 8473308000
- Quantity per pack: 1 pc(s)
Technical details
- Pallet net length: 1200 mm
- Pallet net height: 1770 mm
- Pallet net width: 800 mm
- Pallet net weight: 474060 g
- Compliance certificates: RoHS,REACH
- Version: 1.0
Weight & dimensions
- Width: 206 mm
- Depth: 166 mm
- Height: 229 mm
- Weight: 3960 g
- Package width: 320 mm
- Package depth: 220 mm
- Package height: 180 mm
- Package weight: 4160 g
