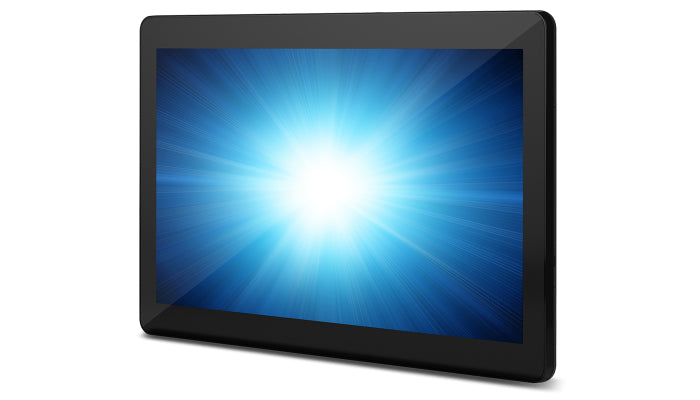

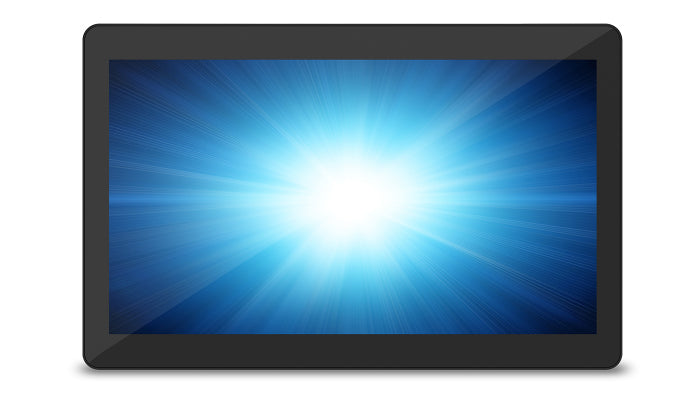

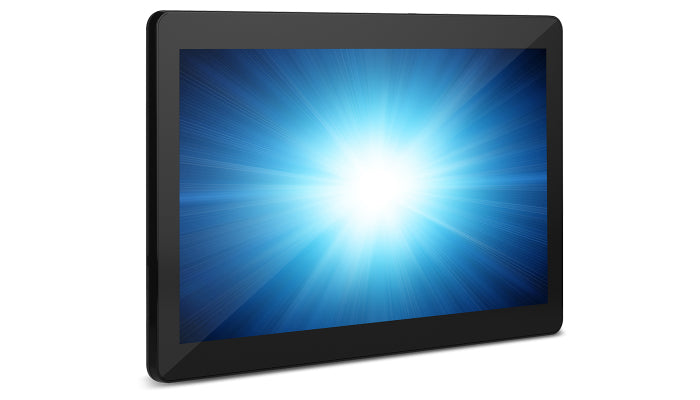

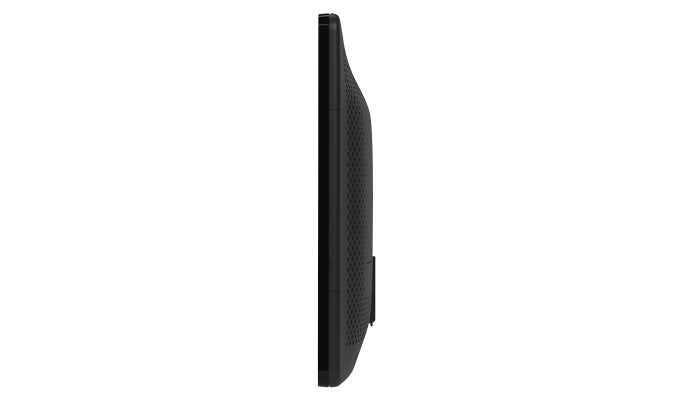

I-Series for Windows
Elo's I-Series for Windows delivers commercial-grade computing with the capabilities, security and enterprise infrastructure of a powerful, Windows-based platform—all in a sleek, yet durable fixed tablet form factor.
Built on a modular platform and available with either 15-inch or 22-inch displays, the I-Series for Windows can be found in installations across the globe, from in-store interaction and point-of-sale to self-service, hospitality and corporate office environments. The uses are virtually unlimited.
Endless Versatility
The Elo I-Series offers versatility across environments. From retail and entertainment to corporate offices and signage, the I-Series is an excellent choice to meet the demands of continuous public use.
Configure with Elo Edge Connect
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripherals that seamlessly attach to the edge of the touchscreen. And you can add or swap them out later as your needs change.
Stands & Mounts

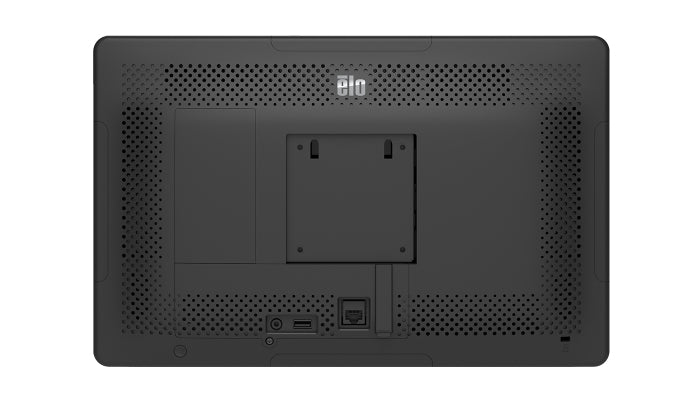

With a standard VESA mount, we give you the flexibility to mount our products however you want.
Windows or Linux. You Choose.
Elo's I-Series utilizes the reliability-tested performance and security of Intel's 8th-generation processors and vPro™ platform. Available with Windows 10 or, for added flexibility, the I-Series offers models with no OS-all pretested with Linux SuSE, Ubuntu and Red Hat operating systems-allowing businesses to get the solution best suited for them.
Get Peace of Mind With EloCare
EloCare is service and support from the people who know your Elo products best. From extended warranties and on-site exchange to advance unit replacement and field services, the highly skilled Elo technical specialists will get you up and running.
Display
- Display diagonal: 15.6 "
- Display resolution: 1920 x 1080 pixels
- Touchscreen: Yes
- HD type: Full HD
- LED backlight: Yes
- Touch technology: Multi-touch
- Native aspect ratio: 16
- Response time: 25 ms
- Screen shape: Flat
Processor
- Processor manufacturer: Intel
- Processor family: Intel® Core™ i5
- Processor generation: 8th gen Intel® Core™ i5
- Processor model: i5-8500T
- Processor cores: 6
- Processor threads: 6
- Processor boost frequency: 3.5 GHz
- Processor frequency: 2.1 GHz
- Processor cache: 9 MB
- Processor cache type: Smart Cache
- System bus rate: 8 GT/s
- 64-bit computing: Yes
- Thermal Design Power (TDP): 35 W
- Configurable TDP-down frequency: 1.6 GHz
- Configurable TDP-down: 25 W
- Processor operating modes: 64-bit
- Processor socket: LGA 1151 (Socket H4)
- Bus type: DMI3
- Processor code: SR3XD
- PCI Express slots version: 3.0
- Maximum number of PCI Express lanes: 16
- Processor codename: Coffee Lake
- PCI Express configurations: 1x16,1x8+2x4,2x8
- Stepping: U0
- Processor lithography: 14 nm
- Tjunction: 100 °C
- Conflict-Free processor: Yes
- Maximum internal memory supported by processor: 64 GB
- Memory types supported by processor: DDR4-SDRAM
- Memory clock speeds supported by processor: 2666 MHz
- Memory bandwidth supported by processor (max): 41.6 GB/s
- Memory channels supported by processor: Dual
- ECC supported by processor: No
Memory
- Internal memory: 8 GB
- Internal memory type: DDR4-SDRAM
- Maximum internal memory: 32 GB
- Memory slots: 2
- Memory slots type: SO-DIMM
- Memory clock speed: 2666 MHz
- Memory layout (slots x size): 1 x 8 GB
Storage
- Total storage capacity: 128 GB
- Storage media: SSD
- Total SSDs capacity: 128 GB
- Number of SSDs installed: 1
- SSD capacity: 128 GB
- SSD form factor: M.2
- Optical drive type: No
- Card reader integrated: No
Graphics
- Discrete graphics card: No
- Discrete graphics card model: Not available
- On-board graphics card: Yes
- On-board graphics card family: Intel® UHD Graphics
- On-board graphics card model: Intel® UHD Graphics 630
- On-board graphics card base frequency: 350 MHz
- On-board graphics card dynamic frequency (max): 1100 MHz
- Maximum on-board graphics card memory: 64 GB
- Number of displays supported (on-board graphics): 3
- On-board graphics card 4K support: Yes
- On-board graphics card DirectX version: 12.0
- On-board graphics card OpenGL version: 4.5
- On-board graphics card ID: 0x3E92
Audio
- Built-in speaker(s): Yes
- Number of speakers: 2
- RMS rated power: 2 W
Camera
- Built-in camera: No
Network
- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
- Wi-Fi standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
- Ethernet LAN: Yes
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- Bluetooth: Yes
- Bluetooth version: 5.0
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
- USB 2.0 ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
- USB 3.2 Gen 2x2 Type-C ports quantity: 0
- Thunderbolt 3 ports quantity: 0
- Thunderbolt 2 ports quantity: 0
- Thunderbolt ports quantity: 0
- HDMI ports quantity: 0
- Headphone outputs: 1
Design
- Product colour: Black
- Panel mounting interface: 75 x 75 mm
- VESA mounting: Yes
Performance
- Product type: All-in-One tablet PC
- Motherboard chipset: Intel Q370
- Trusted Platform Module (TPM): Yes
Software
- Operating system installed: Windows 10
Processor special features
- Intel® OS Guard: Yes
- Intel® AES New Instructions (Intel® AES-NI): Yes
- Intel TSX-NI: Yes
- Intel® Quick Sync Video Technology: Yes
- Enhanced Intel SpeedStep Technology: Yes
- Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID): Yes
- Intel® Identity Protection Technology (Intel® IPT): Yes
- Intel Stable Image Platform Program (SIPP): Yes
- Intel Clear Video Technology: Yes
- Intel® InTru™ 3D Technology: Yes
- Execute Disable Bit: Yes
- Idle States: Yes
- Intel® Clear Video HD Technology (Intel® CVT HD): Yes
- Intel 64: Yes
- Embedded options available: Yes
- Intel Virtualization Technology for Directed I/O (VT-d): Yes
- Processor package size: 37.5 x 37.5 mm
- Thermal Monitoring Technologies: Yes
- Intel Trusted Execution Technology: Yes
- Intel Software Guard Extensions (Intel SGX): Yes
- Intel® Secure Key: Yes
- Intel® Hyper Threading Technology (Intel® HT Technology): No
- Intel VT-x with Extended Page Tables (EPT): Yes
- Intel Enhanced Halt State: Yes
- Intel Virtualization Technology (VT-x): Yes
- Intel Identity Protection Technology version: 1.00
- Supported instruction sets: AVX 2.0,SSE4.1,SSE4.2
- CPU configuration (max): 1
