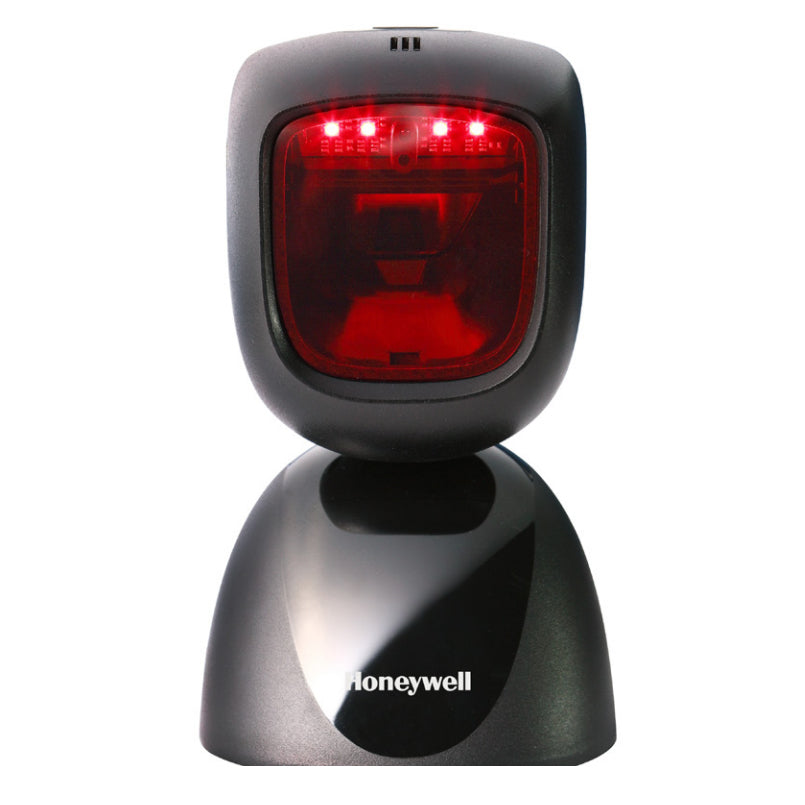

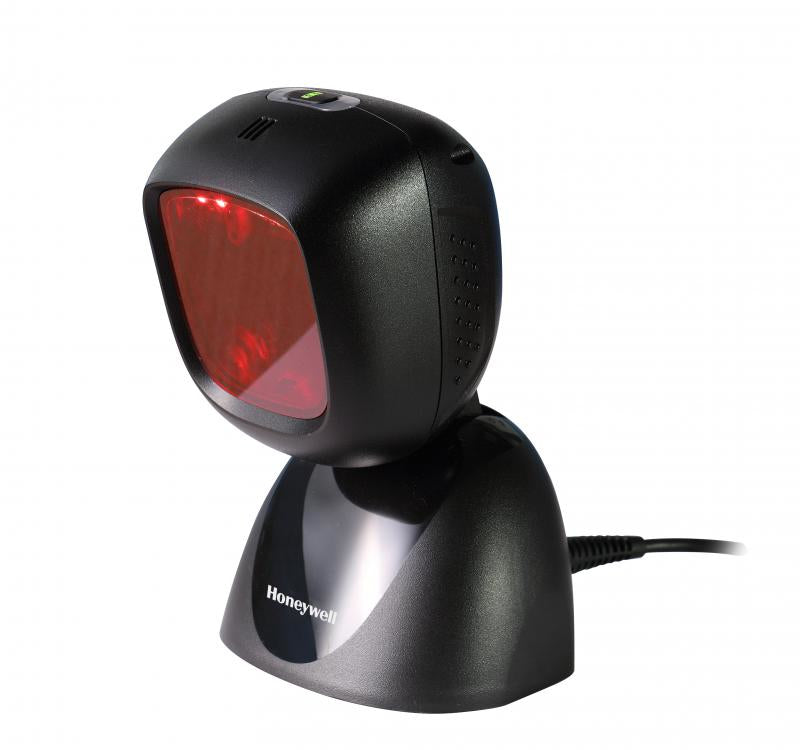

With affordable price and stable performance, HF600 is the ideal choice for various small and medium-sized enterprises with 2D scanning needs, including but not limited to E-membership card reading, mobile coupon scanning, warehousing and logistics document control.
Scanning
- Type: Fixed bar code reader
- Scanner type: 1D/2D
- 2D (matrix & stacked) barcodes supported: Data Matrix,PDF417,QR Code
- Linear (1D) barcodes supported: Code 39
- Sensor type: Photo diode
- Light levels (direct sunlight): 0 - 100000 lx
- Wavelength: 620 nm
- Tilt reading angle: 0 - 360 °
- Pitch reading angle: 0 - 60 °
- Yaw reading angle: 0 - 70 °
Ports & interfaces
- Connectivity technology: Wired
- Standard interfaces: RS-232,USB,Keyboard wedge
- USB 2.0 ports quantity: 1
Performance
- Product colour: Black
- LED indicators: Yes
Power
- Power source type: DC
- Power consumption (typical): 2 W
- Power consumption (standby): 0.45 W
- Input voltage: 5 V
- Power consumption: 400 mA
Weight & dimensions
- Width: 98.2 mm
- Depth: 87.4 mm
- Height: 170 mm
- Weight: 340 g
Operational conditions
- Operating relative humidity (H-H): 0 - 95 %
- Storage temperature (T-T): -40 - 60 °C
Technical details
- Compliance certificates: RoHS
Logistics data
- Harmonized System (HS) code: 84716070
