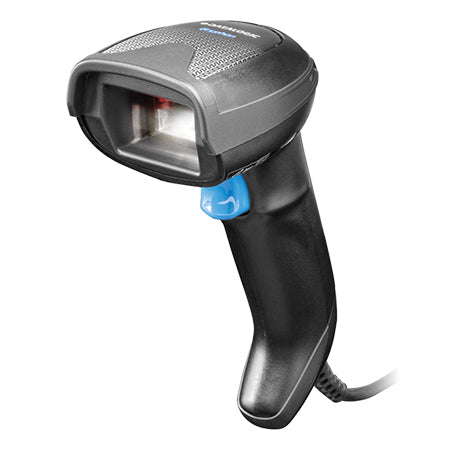

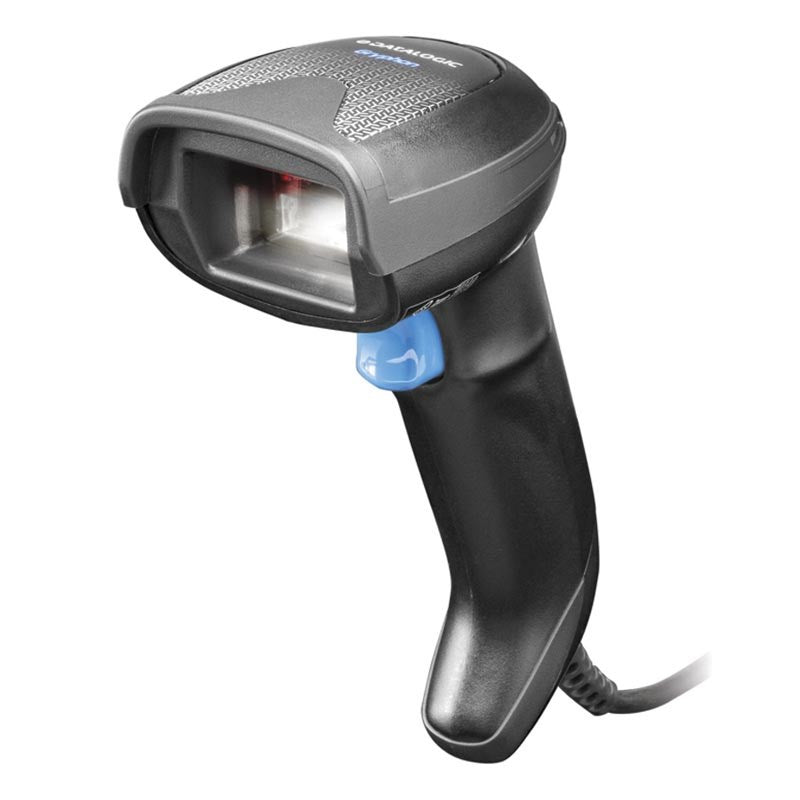

Datalogic Gryphon I GD4520, Handheld bar code reader, 1D/2D, Aztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, QR Code, 1280 x 800 pixels, 0 - 100000 lx, 650 nm

DATALOGICSKU: GD4520-BKK1B
Kit, 2D Mpixel Imager, USB-only, Black

Pris:
Reapris2,895.13 kr eks. mva.
Lager:
Preliminärt i lager -

Kit includes Scanner, All in One Permanent Base and USB Cable 90A052258.

The Gryphon™ 4500 2D series represents the premium range of hand held scanners from Datalogic. The GD4500 scanner is the desk (corded) version for general purpose applications.

The Gryphon I GD4500 imager stands out with an elegant and trendy new design, unchallenged ergonomics and features the most advanced Megapixel sensor with warm-white-illumination 2D technology for outstanding performance.

The Gryphon GD4500 imager takes advantage of Datalogic’s Motionix™ motion-sensing technology which detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode. This technology works with or without the use of a stand, offering both hand held and presentation reading options.

Datalogic’s reading technology with highly visible warm-white illumination is easier on the human eyes and reads colored labels much better. The highly visible 4-Dot aimer defines a precise reading zone and reduces accidental reads, while the aimer’s center cross provides a locator for targeted scanning in a multiple bar code environment.

The GD4500 imager is also available in a Healthcare model with disinfectant-ready and anti-microbial enclosures for applications in the Healthcare industry.

Scanning

  • Type: Handheld bar code reader
  • Scanner type: 1D/2D
  • 2D (matrix & stacked) barcodes supported: Aztec Code,Data Matrix,Han Xin,MaxiCode,Micro QR Code,QR Code
  • Optical sensor resolution (W x H): 1280 x 800 pixels
  • Light levels (direct sunlight): 0 - 100000 lx
  • Wavelength: 650 nm
  • Tilt reading angle: 0 - 360 °
  • Pitch reading angle: -65 - 65 °
  • Motion tolerance (cm/s): 88.9

Ports & interfaces

  • Connectivity technology: Wired
  • Standard interfaces: USB

Performance

  • Product colour: Black
  • International Protection (IP) code: IP52
  • Protection features: Shock resistant
  • Image formats supported: TIFF,BMP,JPEG
  • Certification: IEC 60825 Class 2

Power

  • Power source type: DC
  • Input voltage: 5 V
  • Power consumption: 300 mA

Weight & dimensions

  • Width: 68 mm
  • Depth: 109 mm
  • Height: 166 mm
  • Weight: 161 g

Packaging data

  • Charging base: Yes
  • Cables included: USB

Operational conditions

  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 0 - 95 %

Technical details

  • Compliance certificates: RoHS

Logistics data

  • Harmonized System (HS) code: 84716070
+
