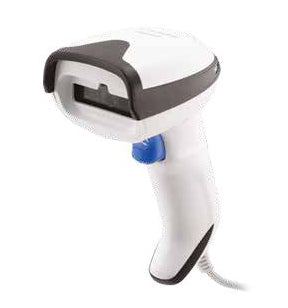

Datalogic Gryphon GM4200, Handheld bar code reader, 1D, CCD, GS1 DataBar, 0.077 mm, 400 reads/s

DATALOGICSKU: GM4200-WH-910-WLC
Linear Imager, 910 MHz, 1D, Wireless Charging, IP52, 166x68x109 mm, White

Pris:
Reapris2,291.51 kr eks. mva.
Lager:
Preliminärt i lager

The Gryphon 4200 series represents the premium range of 1D hand held scanners from Datalogic for general purpose applications. Designed to provide the best-in-class reading performance, the Gryphon 4200 readers’ ability to capture bar codes from near to far, to read both high-density and low resolution codes, to decode hard-to-read, poorly printed or damaged codes and to easily read bar codes from mobile devices simplifies all applications. Ideal for hand held reading, the Gryphon 4200 utilizes Datalogic’s Motionix motion-sensing technology which detects the natural actions of the operator to automatically switch the scanner into the ‘ready-to-read’ scanning mode. Datalogic’s distinctive ‘soft line viewfinder’ helps the operator to easily target the code to be read, making it easier and faster to point, shoot and decode the proper label, reducing accidental reads in a multiple bar code situation. The Gryphon 4200 Series includes 3 models: a corded ‘Desk’ model (GD4200), a cordless model featuring Bluetooth wireless technology (GBT4200) and a cordless model featuring Datalogic’s STAR Cordless System narrow band radio (GM4200).

Scanning

  • Type: Handheld bar code reader
  • Scanner type: 1D
  • Sensor type: CCD
  • Linear (1D) barcodes supported: GS1 DataBar
  • Read rate (max): 400 reads/s
  • Light levels (direct sunlight): 0 - 130000 lx
  • Tilt reading angle: -45 - 45 °
  • Pitch reading angle: -65 - 65 °
  • Yaw reading angle: -65 - 65 °
  • Scanner resolution: 0.077 mm

Ports & interfaces

  • Connectivity technology: Wireless
  • Standard interfaces: RF Wireless
  • Wireless range: 50 m
  • Operating frequency: 910 MHz

Performance

  • Product colour: White
  • International Protection (IP) code: IP52
  • Protection features: Electrostatic Discharge (ESD) protection
  • LED indicators: Yes

Power

  • Power source type: Battery
  • Battery technology: Lithium-Ion (Li-Ion)
  • Battery type: Built-in battery
  • Number of batteries supported: 1
  • Battery capacity: 2550 mAh
  • Battery voltage: 3.6 V
  • Number of reads per charge: 80000
  • Charging time: 4 h
  • Input voltage: 4.5 - 14 V

Weight & dimensions

  • Width: 166 mm
  • Depth: 68 mm
  • Height: 109 mm
  • Weight: 235 g

Operational conditions

  • Operating temperature (T-T): -10 - 50 °C
  • Operating relative humidity (H-H): 0 - 95 %
  • Storage temperature (T-T): -20 - 70 °C

Technical details

  • Compliance certificates: RoHS

Logistics data

  • Harmonized System (HS) code: 84716070
+
