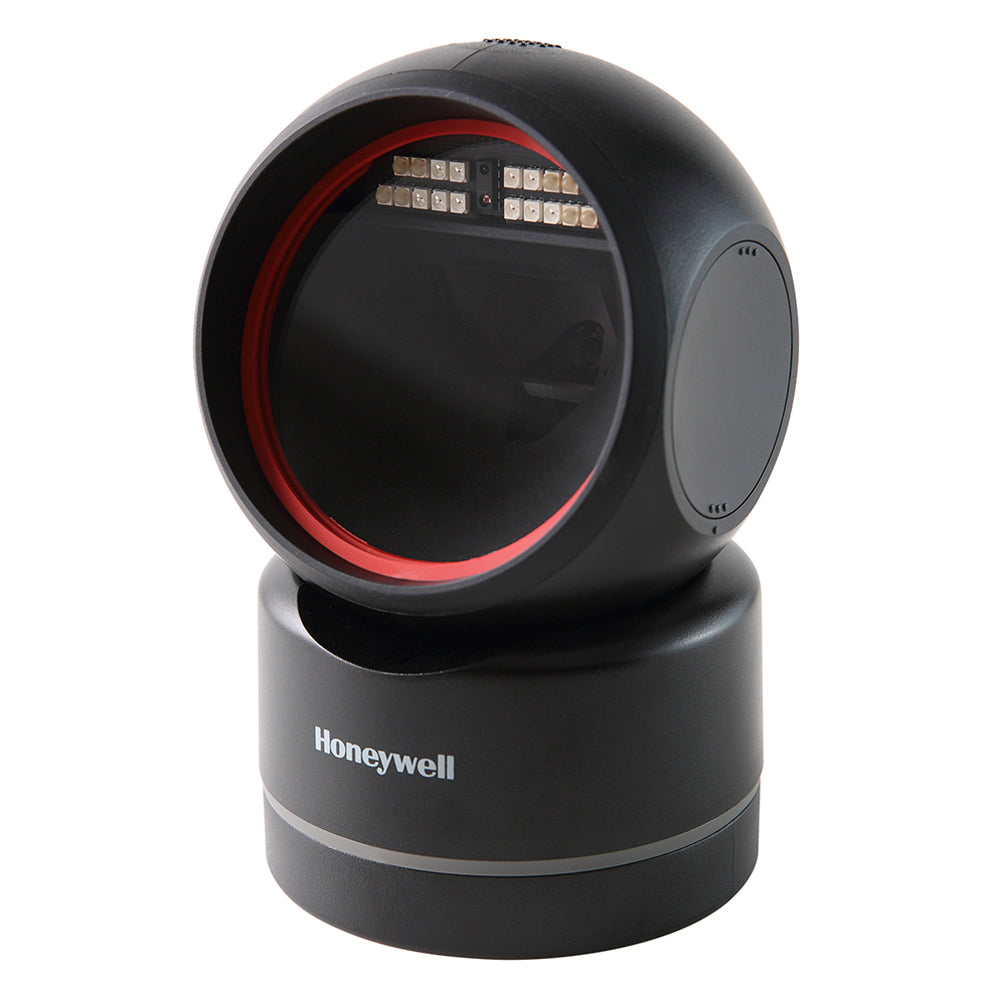

Honeywell’s Orbit HF680 point-of-sale hands free/presentation scanner is the perfect blend of affordability, performance and style. With the Orbit HF680, retailers no longer have to compromise their budgets to get performance and a modern design. Get it all with Honeywell’s Orbit HF680. Customers will zip through the checkout line with the Orbit HF680’s lightning fast scanning of both 1D and 2D barcodes.
And the Orbit HF680 minimizes checkout delays by quickly scanning traditionally difficult to read digital barcodes and even damaged barcodes. The Orbit HF680 scanning is not only fast, it’s also unobtrusive.
The low profile, recessed LED lights in the scan window light up barcodes without irritating your customers. And when the scanner is not in use, its lighting will automatically turn off.
Scanning
- Type: Barcode module bar code reader
- Scanner type: 1D/2D
- Linear (1D) barcodes supported: Code 39,UPC-A
- 2D (matrix & stacked) barcodes supported: Data Matrix,QR Code
- Optical sensor resolution (W x H): 1280 x 800 pixels
- Light levels (direct sunlight): 0 - 100000 lx
- Pitch reading angle: -60 - 60 °
- Motion tolerance (cm/s): 250
Ports & interfaces
- Connectivity technology: Wired
- Standard interfaces: USB
Performance
- Product colour: Black
- Print contrast: 20 %
Power
- Power source type: DC
- Power consumption (typical): 2 W
- Power consumption (standby): 0.85 W
- AC adapter output voltage: 5 V
- Power consumption: 400 mA
Weight & dimensions
- Width: 88 mm
- Depth: 85 mm
- Height: 139 mm
- Weight: 278 g
Packaging data
- External power adapter: Yes
- Cables included: USB
Operational conditions
- Storage temperature (T-T): -40 - 60 °C
- Operating relative humidity (H-H): 0 - 95 %
- Operating temperature (T-T): -10 - 40 °C
