Put plug-and-play high quality scanning wherever you need it
The increasing demands of international commerce and its global supply chain are pressuring companies to deliver more — and to do it faster. From manufacturing to logistics to the end customer, success is driven by the ability to quickly move and track the products that drive your business.

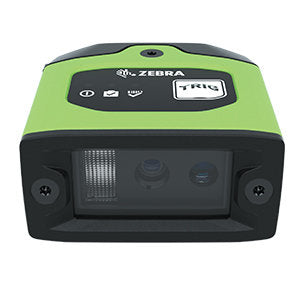

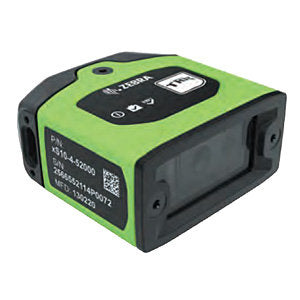

Now, you can address it all with the compact Zebra FS10 Fixed Industrial Scanner.1 With a slim profile, the FS10 easily fits everywhere you need scanning. Just plug the FS10 into the USB port of a workstation, laptop, tablet or any other host device to dependably capture barcode data, from assembly to storage and fulfillment.
Scanning
- Type: Fixed bar code reader
- Scanner type: 1D/2D
- Linear (1D) barcodes supported: Codabar,Code 128,Code 39,Code 93,MSI-Plessey,U.P.C.
- 2D (matrix & stacked) barcodes supported: Aztec Code,Data Matrix,Dot Code A,MaxiCode,Micro QR Code,MicroPDF417,PDF417,QR Code
- Sensor type: CMOS
- Optical sensor resolution (W x H): 1280 x 800 pixels
- Horizontal field of view: 35 °
- Vertical field of view: 26 °
Ports & interfaces
- Connectivity technology: Wired
- Standard interfaces: USB
- USB version: 2.0
- USB 2.0 ports quantity: 1
Performance
- Product colour: Black,Green
- Housing material: Aluminium
- International Protection (IP) code: IP65, IP67
- Protection features: Shock resistant,Vibration proof
- LED indicators: Yes
Power
- Power source type: DC
- Power consumption (typical): 5 W
- Input voltage: 5 V
- Input current: 1 A
Weight & dimensions
- Width: 43 mm
- Depth: 51 mm
- Height: 25.4 mm
- Weight: 120 g
Operational conditions
- Operating temperature (T-T): 0 - 45 °C
- Operating relative humidity (H-H): 5 - 90 %
- Storage temperature (T-T): -40 - 70 °C
