MAXIMIZE SPEED AND SECURITY. JUST THE RIGHT SIZE

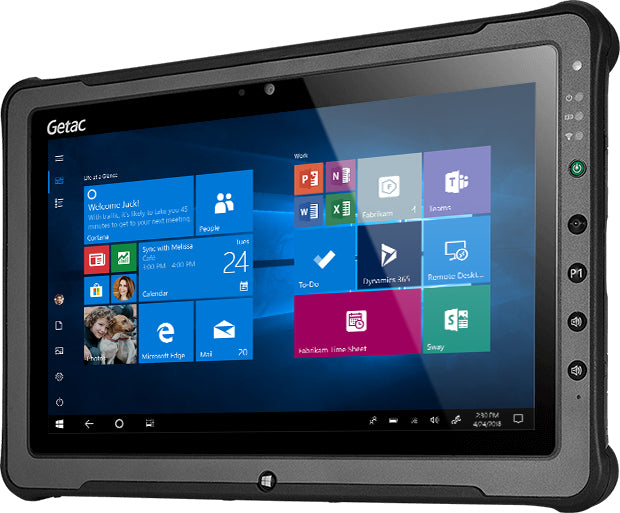

The award-winning F110 is a true revolution in rugged tablet computing. The F110 combines class-leading performance, industry-leading security, a large 11.6” widescreen display and a thin and light design that redefines rugged mobility.
Thin and Light
Designed to be about the size of a typical piece of paper, the new F110 rugged tablet breaks new ground with its large 11.6” display, cutting-edge Intel® Core™ processor, amazing graphics and dual batteries.
LumiBond 2.0: Better, Brighter, Stronger.
The F110 takes advantage of our revolutionary LumiBond 2.0 touchscreen technology, which bonds the display glass with the touch panel and LCD, creating a single pane that is more durable and readable. It features four advanced touch modes (Touch/Rain, Glove or Pen mode, plus an optional Digitizer mode), and the included hard-tip stylus enables you to capture signatures and take more precise notes on drawings, maps, or forms.
Brilliant 11.6” Large FHD Display.
Most rugged tablets choose either a large display or a compact design. We chose both. With a large 11.6” widescreen display, the F110 is ideally suited providing plenty of real estate to run Windows and your apps on.
Dual Battery for Limitless Power.
Instead of one single removable battery, we built the F110 to have two hot-swappable batteries for potentially infinite, uninterrupted battery life. This enables you to remove one of the two rechargeable batteries and replace it with a fresh battery without ever shutting down apps or your Windows OS.
Security Redefined.
Experience a robust suite of security features, including multi-factor authentication, to protect against malicious threats and intrusions.
Windows 10 Security
The F110 fully supports Microsoft’s latest authentication tools, including Windows Hello and Microsoft Passport. Logging in is quick and easy with an optional IR camera, fingerprint reader, smart card reader or dual frequency (LF/HF) RFID reader.
Beyond Expectations.
Our new Bumper-to-Bumper fully rugged warranties go beyond the expected to protect your productivity.
Display
- Display diagonal: 11.6 "
- Display resolution: 1920 x 1080 pixels
- Panel type: IPS
- Touchscreen type: Capacitive
- HD type: Full HD
Processor
- Processor manufacturer: Intel
- Processor family: Intel® Core™ i5
- Processor generation: 7th gen Intel® Core™ i5
- Processor model: i5-7300U
- Processor cores: 2
- Processor threads: 4
- Processor boost frequency: 3.5 GHz
- Processor frequency: 2.6 GHz
- Processor cache: 3 MB
- Processor cache type: Smart Cache
- Processor codename: Kaby Lake
- Processor series: Intel Core i5-7300 Mobile Series
- Thermal Design Power (TDP): 15 W
- Stepping: H0
- Processor package size: 42 X 24 mm
- Tjunction: 100 °C
- Bus type: OPI
- Processor lithography: 14 nm
- Processor operating modes: 64-bit
- Configurable TDP-down frequency: 0.8 GHz
- Supported instruction sets: AVX 2.0,SSE4.1,SSE4.2
- PCI Express configurations: 1x2+2x1,1x4,2x2,4x1
- Thermal Monitoring Technologies: Yes
- System bus rate: 4 GT/s
- Conflict-Free processor: Yes
- Processor code: SR340
Memory
- Internal memory: 16 GB
- Internal memory type: DDR4-SDRAM
- Maximum internal memory: 32 GB
Storage
- Internal storage capacity: 256 GB
- Card reader integrated: No
- Compatible memory cards: Not supported
- Storage media: SSD
Graphics
- Graphics card family: Intel
- Graphics card: UHD Graphics 620
Camera
- Rear camera type: Single camera
- Rear camera resolution (numeric): 8 MP
- Auto focus: Yes
- Front camera: Yes
Network
- Mobile network connection: Yes
- Mobile network generation: 4G
- Bluetooth: Yes
- Bluetooth version: 5.0
- Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
- Wi-Fi standards: Wi-Fi 5 (802.11ac)
Ports & interfaces
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
- HDMI ports quantity: 1
- Combo headphone/mic port: Yes
- DC-in jack: Yes
Design
- Form factor: Slate
- Product colour: Black
- Device type: Tablet PC
- International Protection (IP) code: IP65
Performance
- Position location: Yes
- Trusted Platform Module (TPM): Yes
Security
- Cable lock slot: Yes
- Cable lock slot type: Kensington
Software
- Platform: Windows
- Operating system installed: Windows 10 Pro
- Operating system architecture: 64-bit
Processor special features
- Intel® Quick Sync Video Technology: Yes
- Intel® Hyper Threading Technology (Intel® HT Technology): Yes
- Intel® My WiFi Technology (Intel® MWT): Yes
- Intel® Smart Response Technology: Yes
- Intel TSX-NI version: 1.00
- Intel® Secure Key: Yes
- Enhanced Intel SpeedStep Technology: Yes
- Intel® AES New Instructions (Intel® AES-NI): Yes
- Intel® Identity Protection Technology (Intel® IPT): Yes
- Intel® Clear Video HD Technology (Intel® CVT HD): Yes
- Intel® Turbo Boost Technology: 2.0
- Intel Stable Image Platform Program (SIPP) version: 1.00
- Intel Enhanced Halt State: Yes
- Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID): Yes
- Intel Virtualization Technology for Directed I/O (VT-d): Yes
- Intel Secure Key Technology version: 1.00
- Intel Smart Response Technology version: 1.00
- Intel Stable Image Platform Program (SIPP): Yes
- Intel Clear Video Technology: Yes
- Execute Disable Bit: Yes
- Idle States: Yes
- Intel Software Guard Extensions (Intel SGX): Yes
- Intel Identity Protection Technology version: 1.00
- Intel Trusted Execution Technology: Yes
- Intel Flex Memory Access: Yes
- Intel TSX-NI: Yes
- Intel® OS Guard: Yes
- Intel 64: Yes
- Intel Virtualization Technology (VT-x): Yes
- Intel VT-x with Extended Page Tables (EPT): Yes
- Embedded options available: Yes
Battery
- Battery technology: Lithium-Ion (Li-Ion)
- Battery capacity: 2160 mAh
- Battery voltage: 11.4 V
Power
- AC adapter power: 65 W
- AC adapter input voltage: 100 - 240 V
- AC adapter frequency: 50 / 60 Hz
Weight & dimensions
- Width: 314 mm
- Depth: 24.5 mm
- Height: 207 mm
- Weight: 1390 g
Operational conditions
- Operating temperature (T-T): -21 - 60 °C
- Storage temperature (T-T): -51 - 71 °C
- Operating relative humidity (H-H): 0 - 95 %
Other features
- Processor socket: BGA 1356
- Processor ARK ID: 97472
