Kiosk receipt printer

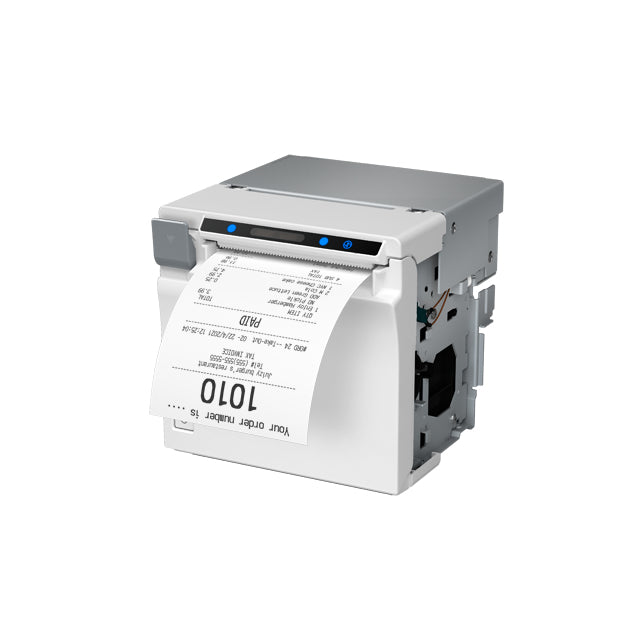

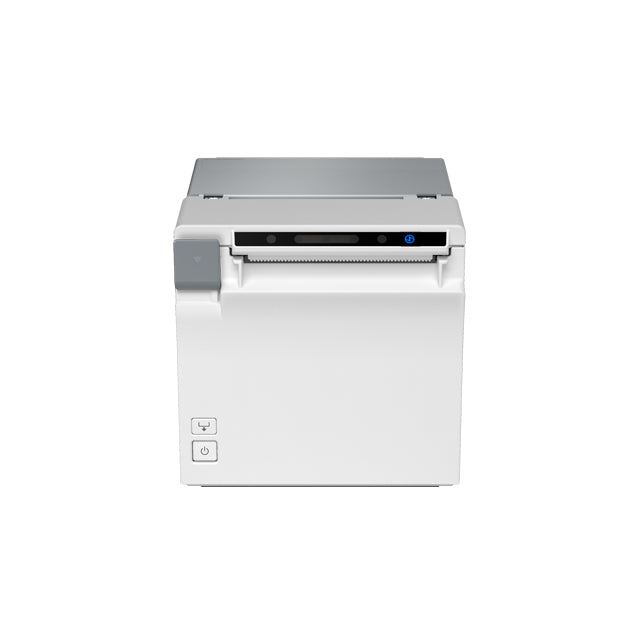

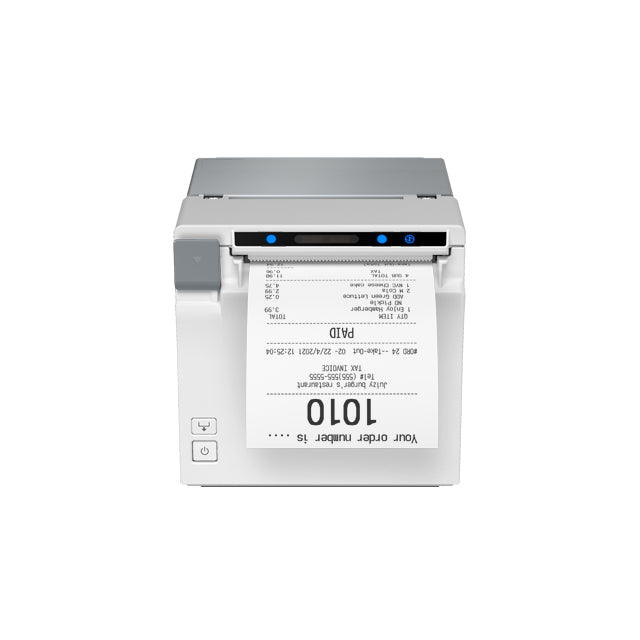

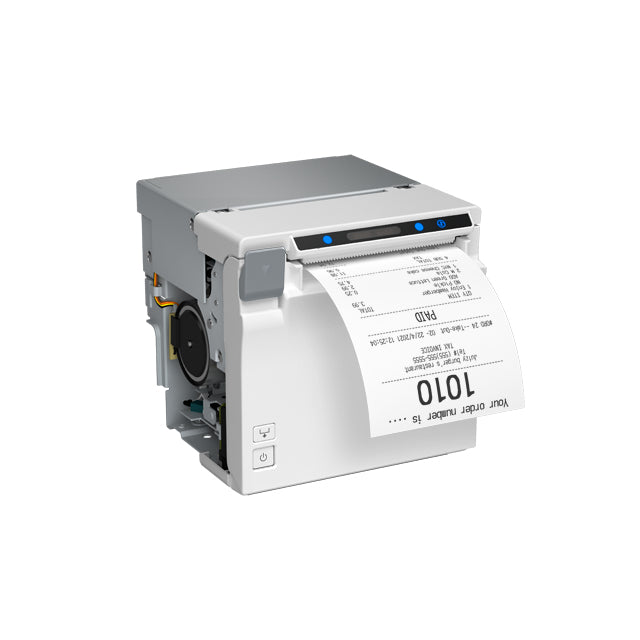

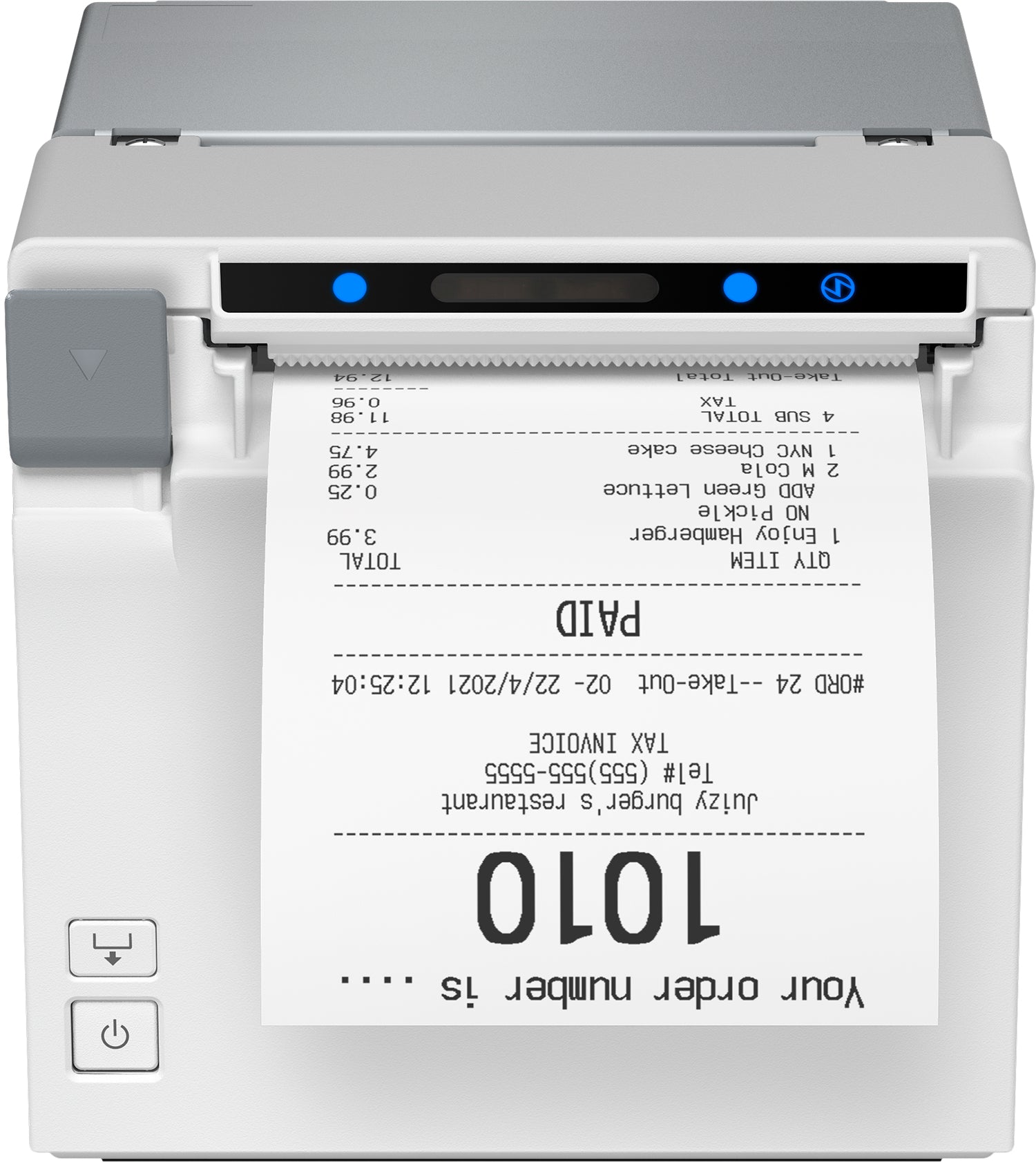

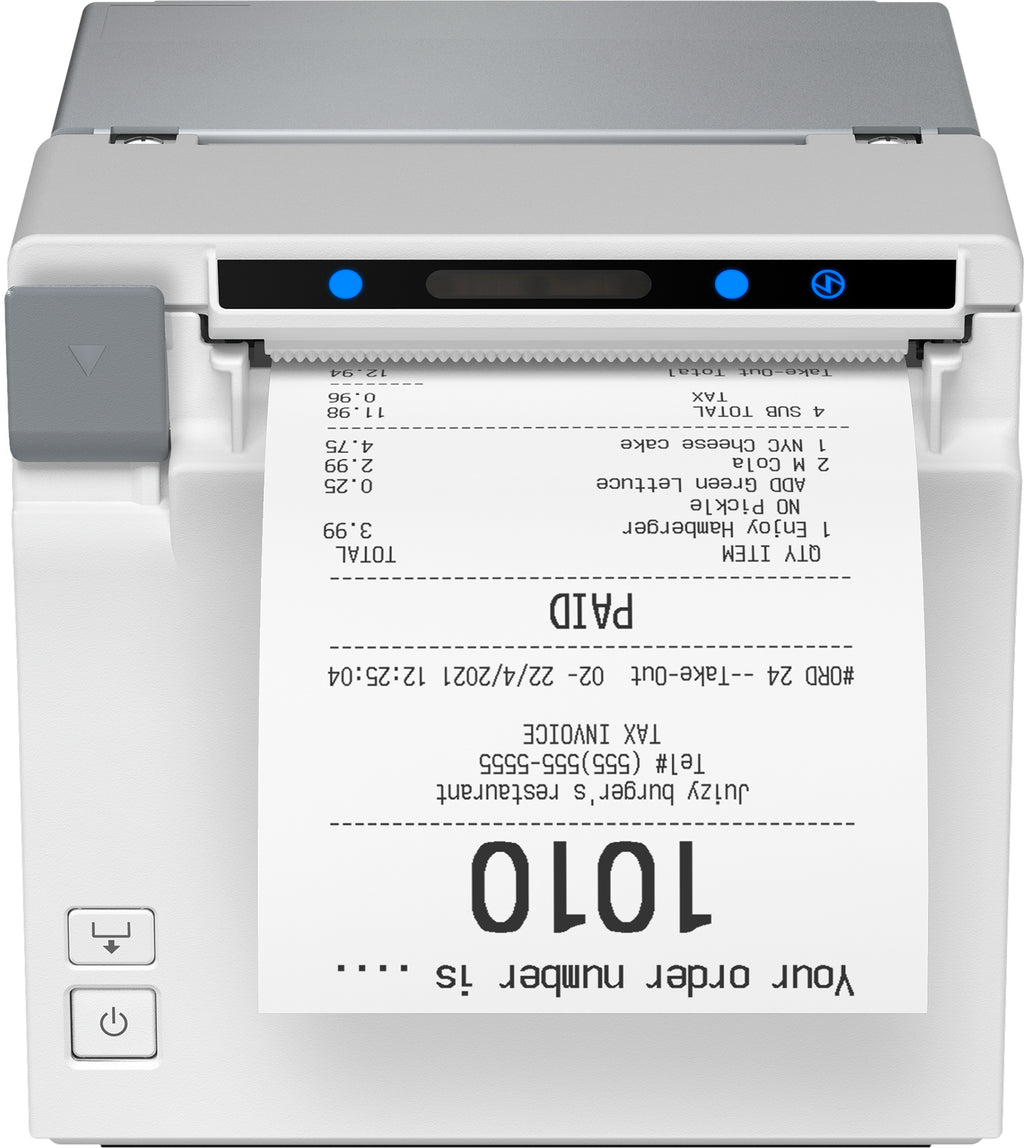

The EU-m30 is based on the highly-successful TM-m30 printer and has been specifically designed for kiosk applications, following direct feedback from customers
High-quality, reliable hardware
Avoid downtime by choosing proven, reliable hardware from a market leader{s1. Ensure happy customers with high-quality and legible printed receipts. The EU-m30's small footprint means less space is needed for the printer.
Easy to connect and monitor

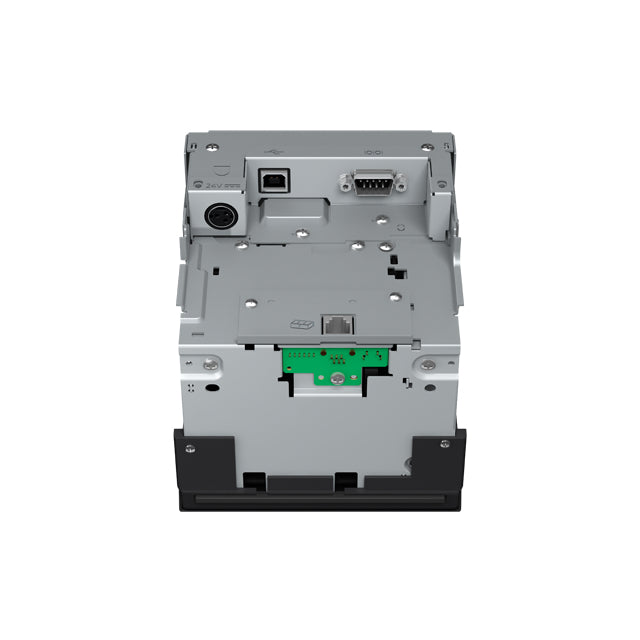

The EU-m30 comes with USB and serial connectivity as standard. Once connected, the printers' clear indicator LEDs allow operators to assess the printer condition at a glance.
Simple maintenance and installation
The EU-m30 comes with an optional mounting kit to help securely mount the printer to the kiosk. This also makes it easier to swap the printer out for necessary maintenance. A large button cover allows both the power and feed button to be shielded from unwanted presses.
Re-export made easier
The EU-m30 is certified as a component, leaving the vendor free to certify the overall kiosk.
Printing
- Print technology: Thermal
- Type: POS printer
- Maximum resolution: 203 x 203 DPI
- Print speed (receipt): 250 mm/sec
- Printing characters: Text,Graphic,Barcode
- Character sets: ANK
Paper handling
- Supported paper width: 58 mm - 80 mm (Breite) mm
- Maximum roll diameter: 83 mm
Ports & interfaces
- Connectivity technology: Wired & Wireless
- USB port: Yes
- Serial interface: Yes
- Near Field Communication (NFC): Yes
Features
- Sound pressure level (printing): 55 dB
- Mean time between failures (MTBF): 360000 h
- Half-cutter: Yes
- Autocutter durability: 1.5 million cuts
- Mounting position: Horizontal
- Country of origin: Philippines
- Print head life: 150 km
- Built-in sensors details: Paper End Sensor, Papier-Sensor
Design
- Product colour: White
Operational conditions
- Operating temperature (T-T): 5 - 45 °C
- Operating relative humidity (H-H): 10 - 90 %
- Storage relative humidity (H-H): 10 - 90 %
System requirements
- Pre-installed software: TMNet WebConfig, ePOS-Device, ePOS-Display, ePOS-Print
Weight & dimensions
- Width: 127 mm
- Depth: 131 mm
- Height: 127 mm
- Weight: 1300 g
Packaging data
- Quantity per pack: 1 pc(s)
- Package width: 195 mm
- Package depth: 235 mm
- Package height: 235 mm
- Package weight: 2146 g
Print technology
- Column capacity: 48/57
Logistics data
- Harmonized System (HS) code: 84433210
Technical details
- Font styles: ANK
- Lifetime: 17000000 lines
Other features
- Mean cycles between failures (MCBF): 65000000
- Buffer size: 12 KB
- Print head life: 150.000.000 Impulse
