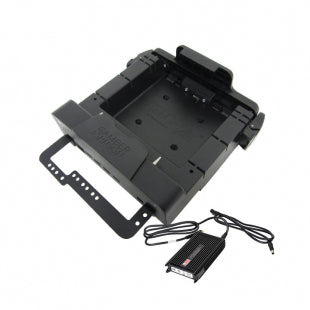

This kit includes a dock (7160-0788-00) to hold your tablet, full port replication, and a power supply to keep it charged. Currently available in Europe only, coming soon to U.S.
- Port repolications for ethernet RJ45 (1), USB 3.0 9-pin (3), HDMI 19 pin, power input.
- Designed and tested for MIL-STD 810G specifications.
- Compatible with Zebra enterprise tablets with the rugged frame option.
- Accommodates expansion back of the ET50/55 to easily add accessories like a scanner/hand strap, battery bay, or stylus.
- Front camera on ET50/55 accessible when the tablet is in the docking station.
- Compatible with Windows or Android operating systems.
- Dual latch/locks provide stability and docking connectivity.
- Guide pins prevent damage to the docking connection when docking the tablet.
- VESA 75mm mounting pattern.
- Steel and composite design for reduced weight.
Performance
- Basic device type: Tablet
- Brand compatibility: Zebra
- Compatibility: Zebra ET50/55 8"
- Product colour: Black
- Material: Steel
Ports & interfaces
- USB 2.0 ports quantity: 0
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
- Audio output: No
- HDMI: Yes
- HDMI connector type: Full-size
- Ethernet LAN (RJ-45) ports: 1
Weight & dimensions
- Width: 229 mm
- Depth: 85 mm
- Height: 254 mm
- Weight: 1180 g
Packaging data
- Quantity: 1
Logistics data
- Harmonized System (HS) code: 84719000
