The touchmonitor just got better.

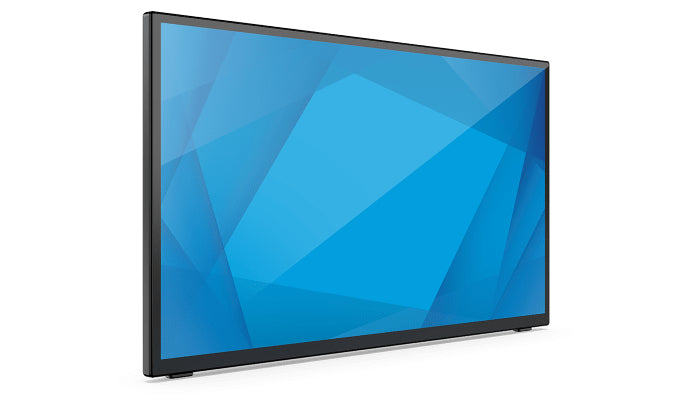

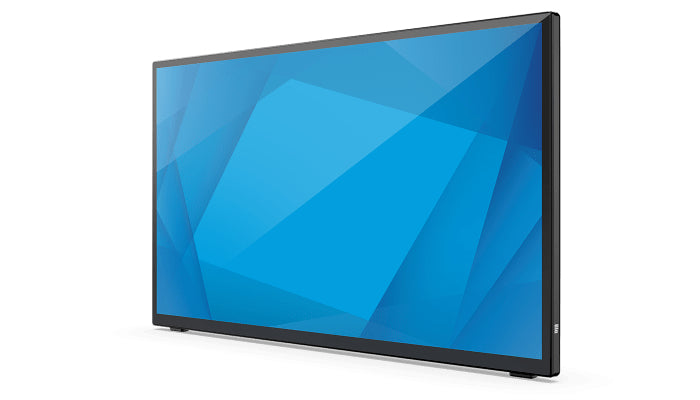

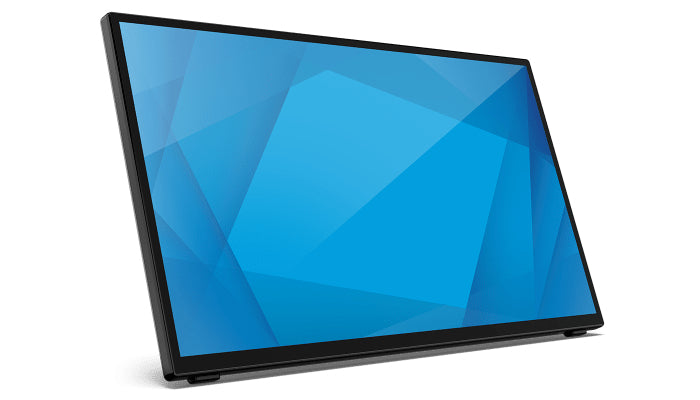

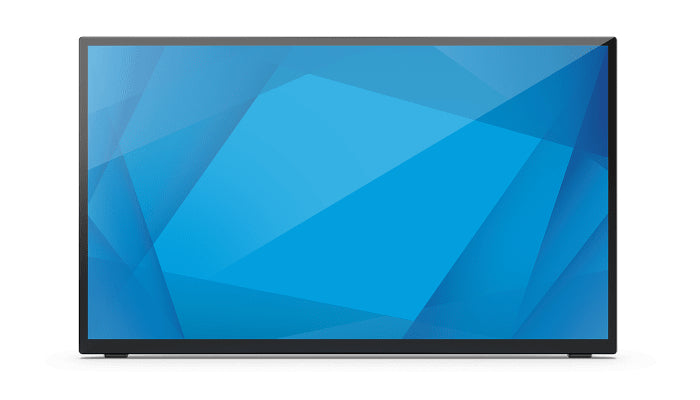

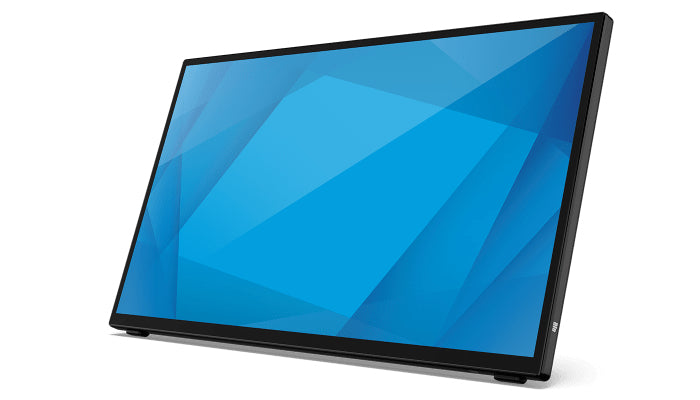

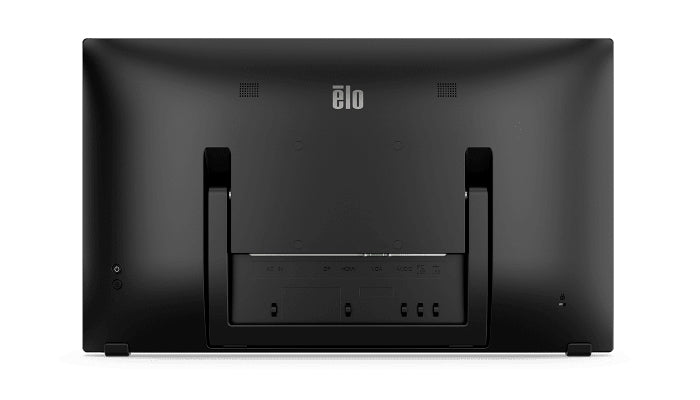

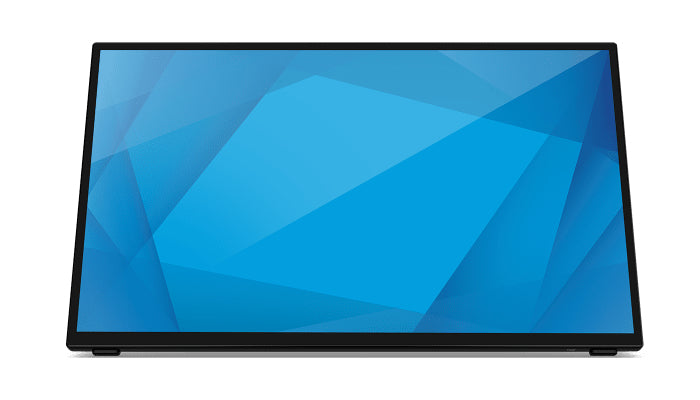

Elo 2470L 24" Full HD Touchscreen Monitor
The bezel just got smaller.
The 2470L 24” touchscreen offers up to a 70% reduction in the bezel compared to similar models.
Minimalistic design to fit any space.
From 20 degrees to 70 degrees, angle the display where you want it.
Place it on a desktop, mount it on a wall or configure the 2470L to fit your space with VESA-compatibility.
Scratch-resistant glass surface
- IK07 impact resistant
- ES8.0 certified for greater
- energy efficiency
Increase viewing comfort with low blue light and flicker free features.
Navigate the OSD directly on the touchscreen.
We have made it easier to manage your On-Screen Display (OSD) controls – Now you can use the touchscreen or the controls you are used to on the rear side of the monitor.
Display
- Display diagonal: 23.8 "
- Display resolution: 1920 x 1080 pixels
- Native aspect ratio: 16
- Display technology: LCD
- Touchscreen: Yes
- HD type: 4K Ultra HD
- Panel type: TFT
- Touchscreen technology: Capacitive
- Touch technology: Multi-touch
- Number of simultaneous touchpoints: 10
- Response time: 16 ms
- Anti-glare screen: Yes
- Screen shape: Flat
- Aspect ratio: 16
- Contrast ratio (typical): 1000
- Maximum refresh rate: 60 Hz
- Viewing angle, horizontal: 178 °
- Viewing angle, vertical: 178 °
- Display number of colours: 1.67 billion colours
- Horizontal scan range: 30 - 82 kHz
- Vertical scan range: 50 - 75 Hz
Performance
- NVIDIA G-SYNC: No
- AMD FreeSync: No
- Flicker-free technology: Yes
- Low Blue Light technology: Yes
Multimedia
- Built-in speaker(s): Yes
- Built-in camera: No
- Number of speakers: 2
- RMS rated power: 20 W
Design
- Product colour: Black
- Certification: UL, FCC A, cUL, IC, CB, CE A, C-Tick A, NOM CoC, CCC
Ports & interfaces
- Built-in USB hub: Yes
- USB upstream port type: USB Type-A,USB Type-B
- VGA (D-Sub) ports quantity: 1
- HDMI: Yes
- HDMI ports quantity: 1
- DisplayPorts quantity: 1
- Audio input: Yes
- Audio output: Yes
Ergonomics
- VESA mounting: Yes
- Panel mounting interface: 100 x 100 mm
- Wall mountable: Yes
- On Screen Display (OSD): Yes
Power
- Energy efficiency class (SDR): D
- Energy efficiency class (HDR): Not available
- Energy consumption (SDR) per 1000 hours: 12 kWh
- Power consumption (typical): 13.8 W
- Power consumption (standby): 0.5 W
- Power consumption (off): 0.16 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Energy efficiency scale: A to G
- European Product Registry for Energy Labelling (EPREL) code: 1365137
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 20 - 80 %
- Storage relative humidity (H-H): 10 - 95 %
Packaging content
- Cables included: AC,HDMI,USB
- Quick start guide: Yes
Weight & dimensions
- Width (without stand): 550.2 mm
- Depth (without stand): 41.8 mm
- Height (without stand): 329.3 mm
- Weight (without stand): 4800 g
Packaging data
- Package width: 630 mm
- Package depth: 418 mm
- Package height: 136 mm
- Package weight: 7100 g
Sustainability
- Sustainability certificates: ENERGY STAR
Technical details
- Compliance certificates: RoHS
Other features
- Mean time between failures (MTBF): 50000 h
