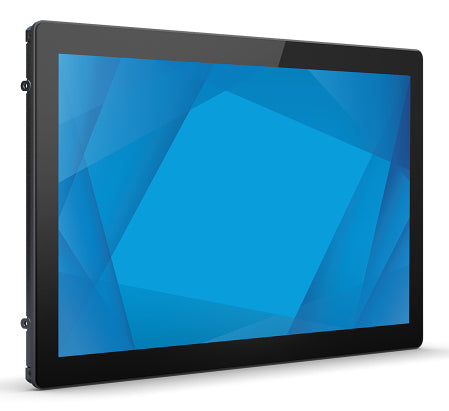

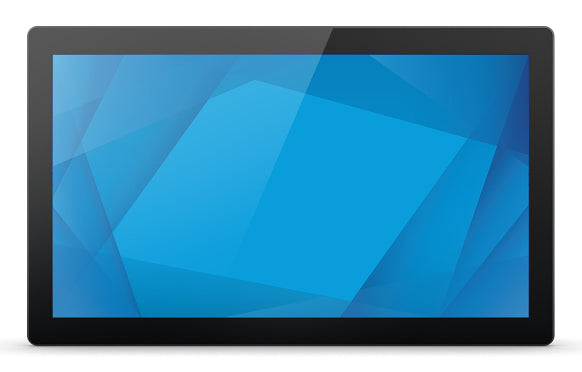

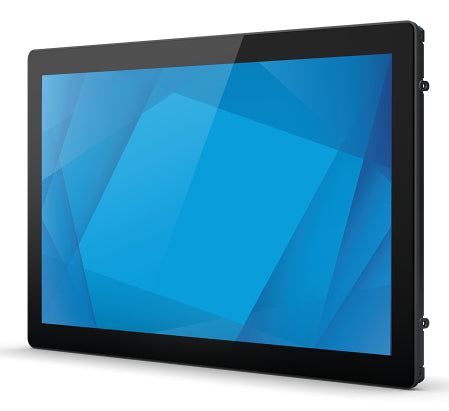

Elo 2294L Open Frame Touchscreen Display
The Elo 2294L 22-inch open frame touchscreen display delivers an industrial-grade solution that is cost-effective for OEMs and systems integrators requiring a reliable product for their customers. Designed with reliability from the start, Elo's open frames deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses. The 90-Series product line is available in a wide range of sizes, touch technologies and brightness, offering the versatility needed for commercial kiosk applications from self-service and gaming to industrial automation and healthcare.
Enabling Partners to Build Smarter Kiosks
With EloView™ and the Backpack, managing kiosks is EASY! The Elo Backpack is an Android powered compute engine capable of transforming Elo touchscreens into an affordable, scalable, single-architecture media platform. With its simplified content-delivery and remote-management capabilities via the EloView portal, the Backpack provides a low-power, solid-state, fan-less computing solution with the capability to simplify deployments and remotely manage kiosks out-of-the-box.
Flexibility for Your Install
Our commercial-grade open frames can be mounted in landscape, portrait, and face-up orientations providing optimal flexibility for mounting in any table, kiosk, or cabinet design. Whether viewing directly, at an angle, or from a distance, our open frames offer what you need while maintaining optimal clarity and the viewing experience you want to deliver.
Touch Thru Glass Enabled with PCAP
Our TouchPro™ PCAP technology supports touch thru
functionality for installations that require a front layer of glass with
thickness’s up to 6mm or solutions that require specific IP ratings.
Whether you need a flush-mounted display or one that is
fully-encased behind a cover glass, our robust PCAP Open
Frames are purpose-built for durability in various applications and
environments: from self-service kiosks to highly used gaming
cabinets to harsh industrial machines.
Built for Commercial Use
We pride ourselves on being one of the best manufacturers in the market – We design and build the complete solution, with touch integrated from the start. Our robust touchscreen solutions offer flexibility for diverse environments and have undergone rigorous testing to ensure the longest life possible for our product - maximizing your ROI.
Display
- Display diagonal: 21.5 "
- Display technology: LED
- LED backlight: Yes
- Panel type: TFT-LCD
- Display resolution: 1920 x 1080 pixels
- Display brightness: 225 cd/m²
- HD type: Full HD
- Touchscreen: Yes
- Touchscreen technology: Surface acoustic wave
- Multi-touch: Yes
- Number of simultaneous touchpoints: 10
- Native aspect ratio: 16
- Response time: 14 ms
- Contrast ratio (typical): 1000
- Viewing angle, horizontal: 178 °
- Viewing angle, vertical: 178 °
- Display number of colours: 16.78 million colours
- Active display area (W x H): 476.64 x 268.11 mm
- Vertical scan range: 50 - 75 Hz
- Horizontal scan range: 30 - 82 kHz
Ports & interfaces
- HDMI ports quantity: 1
- DisplayPorts quantity: 1
- USB port: Yes
Audio
- Built-in speaker(s): No
Design
- Product design: Interactive flat panel
- Product colour: Black
- Placement supported: Indoor
- Screen shape: Flat

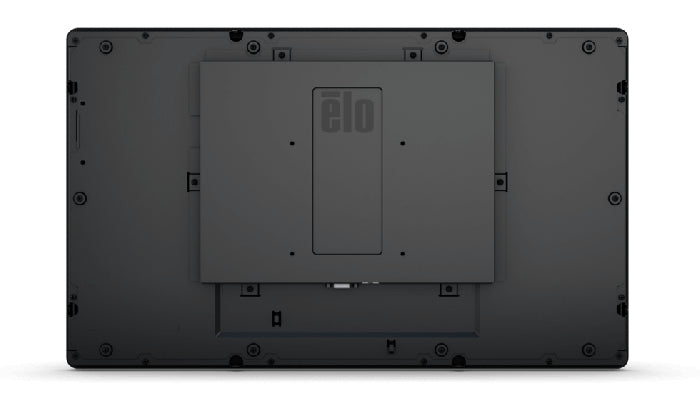

- VESA mounting: Yes
- Panel mounting interface: 100 x 100 mm
Performance
- Purpose: Commercial
- On Screen Display (OSD): Yes
- On Screen Display (OSD) languages: CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN
- Mean time between failures (MTBF): 50000 h
Power
- Power consumption (typical): 14.5 W
- Input voltage: 23 V
- Power consumption (standby): 1.5 W
- Power consumption (off): 0.5 W
Weight & dimensions
- Display width: 511.8 mm
- Display depth: 298.2 mm
- Display height: 42 mm
- Display weight: 5100 g
Packaging data
- Package width: 620 mm
- Package depth: 190 mm
- Package height: 423 mm
- Package weight: 8200 g
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 20 - 80 %
- Storage temperature (T-T): -20 - 60 °C
- Storage relative humidity (H-H): 10 - 95 %
Logistics data
- Harmonized System (HS) code: 85285210
Features
- Wall mountable: Yes
Technical details
- Full HD: Yes
- Compliance certificates: RoHS
Other features
- Maximum refresh rate: 60 Hz
- Display viewable area (HxV): 476.64 x 268.11 mm
- Digital vertical frequency: 50 - 75 Hz
- Weight (without stand): 5100 g
- Aspect ratio: 16
- Digital horizontal frequency: 30 - 82 kHz
- Built-in camera: No
