The bezel just got smaller.
The 2270L 22” touchscreen offers up to a 70% reduction in the bezel compared to similar models.
Minimalistic design to fit any space.

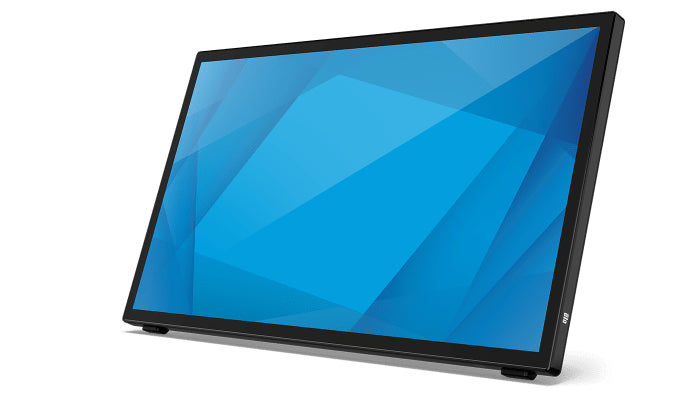

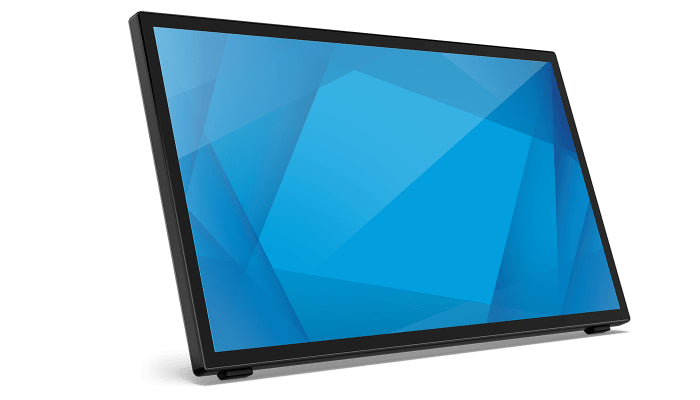

From 20 degrees to 70 degrees, angle the display where you want it.
Place it on a desktop, mount it on a wall or configure the 2270L to fit your space with VESA-compatibility.

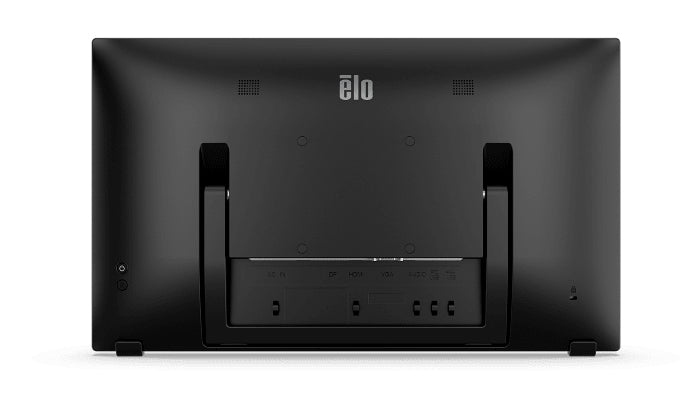

VESA-compatibility. Built-in speakers and integrated IO.
Durable, energy efficient touchscreen.
Scratch-resistant glass surface.
IK07 impact resistant.
ES8.0 certified for greater energy efficiency.
Increase viewing comfort with low blue light and flicker free features.
Navigate the OSD directly on the touchscreen.
We have made it easier to manage your On-Screen Display (OSD) controls – Now you can use the touchscreen or the controls you are used to on the rear side of the monitor.
Display
- Display diagonal: 21.5 "
- Display resolution: 1920 x 1080 pixels
- Native aspect ratio: 16
- Display technology: LCD
- Touchscreen: Yes
- HD type: 4K Ultra HD
- Panel type: TFT
- Touchscreen technology: Capacitive
- Touch technology: Multi-touch
- Number of simultaneous touchpoints: 10
- Display brightness: 405 cd/m²
- Response time: 14 ms
- Anti-glare screen: Yes
- Screen shape: Flat
- Aspect ratio: 16
- Contrast ratio (typical): 1000
- Maximum refresh rate: 60 Hz
- Viewing angle, horizontal: 178 °
- Viewing angle, vertical: 178 °
- Display number of colours: 1.67 billion colours
- Horizontal scan range: 30 - 82 kHz
- Vertical scan range: 50 - 75 Hz
Performance
- NVIDIA G-SYNC: No
- AMD FreeSync: No
- Flicker-free technology: Yes
- Low Blue Light technology: Yes
- OmniTapps Multitouch compatibility: No
- Number of simultaneous touchpoints (Windows 7): 10
Multimedia
- Built-in speaker(s): Yes
- Built-in camera: No
- Number of speakers: 2
- RMS rated power: 20 W
- Built-in microphone: No
Design
- Product colour: Black
- Certification: UL, FCC A, cUL, IC, CB, CE A, C-Tick A, NOM CoC, CCC
Ports & interfaces
- Built-in USB hub: Yes
- USB upstream port type: USB Type-A,USB Type-B
- VGA (D-Sub) ports quantity: 1
- HDMI: Yes
- HDMI ports quantity: 1
- DisplayPorts quantity: 1
- Audio input: Yes
- Audio output: Yes
- Headphone outputs: 1
- HDCP: Yes
Ergonomics
- VESA mounting: Yes
- Panel mounting interface: 100 x 100 mm
- Wall mountable: Yes
Power
- Energy efficiency class (SDR): D
- Energy efficiency class (HDR): Not available
- Energy consumption (SDR) per 1000 hours: 12 kWh
- Power consumption (typical): 13.8 W
- Power consumption (standby): 0.5 W
- Power consumption (off): 0.16 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Energy efficiency scale: A to G
- European Product Registry for Energy Labelling (EPREL) code: 1361162
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 20 - 80 %
- Storage relative humidity (H-H): 10 - 95 %
Packaging content
- Cables included: AC,HDMI,USB
- Quick start guide: Yes
Weight & dimensions
- Width (without stand): 504.7 mm
- Depth (without stand): 41.3 mm
- Height (without stand): 302.4 mm
- Weight (without stand): 4100 g
Packaging data
- Package width: 589 mm
- Package depth: 395 mm
- Package height: 136 mm
- Package weight: 6300 g
Sustainability
- Sustainability certificates: ENERGY STAR
Logistics data
- Harmonized System (HS) code: 85285210
Technical details
- Compliance certificates: RoHS
Other features
- Display viewable area (HxV): 1209.6 x 680.4 mm
- Mean time between failures (MTBF): 50000 h
