Razor thin design.
Brilliant touchscreen.
Built to be one of the thinnest commercial-grade 15-inch
touchscreen monitors, the 04LS-Series delivers a stunning
design with thin borders, enhanced durability and state-of-the-
art optical bonding - all with brilliant display clarity.
Available in a range of
sizes from 7- to 15-inch.

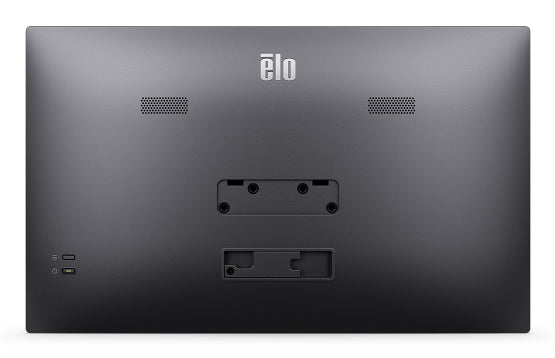

Secure your cables into place.
With a port cover that can be locked into place, cables are less prone
to becoming disconnected, minimizing disruptions to the device.
A clean slate for
touch experiences.
The perfect pairing for
your POS terminal.
Whether you want to pair the 1504LS with a PC, a mobile device
or an AiO with integrated payment, the 04LS slate monitors
offers the perfect compact touch display with the sleekness you
desire at the point of sale.
Get peace of mind
with EloCare
From advance unit replacement to extended warranties,
EloCare delivers service and support from the people
who know your Elo products best.
Display
- Display diagonal: 15.6 "
- Display technology: LED
- Panel type: TFT-LCD
- Display resolution: 1920 x 1080 pixels
- Display brightness: 350 cd/m²
- HD type: Full HD
- Touchscreen: Yes
- Touchscreen technology: Projected capacitive system
- Multi-touch: Yes
- Number of simultaneous touchpoints: 10
- Response time: 20 ms
- Contrast ratio (typical): 1000
- Viewing angle, horizontal: 170 °
- Viewing angle, vertical: 170 °
- Display number of colours: 16.2 million colours
- Active display area (W x H): 344.16 x 193.59 mm
- Number of displays: 1
- Native refresh rate: 60 Hz
Ports & interfaces
- HDMI ports quantity: 1
- DisplayPorts quantity: 1
- USB port: Yes
- USB ports quantity: 1
- USB connector type: USB Type-C
- Ethernet LAN: No
Audio
- Built-in speaker(s): Yes
- Number of built-in speakers: 2
- RMS rated power: 4 W
Design
- Product design: Digital signage flat panel
- Product colour: Black
- Orientation: Horizontal/Vertical
- Screen shape: Flat
- VESA mounting: Yes
- Panel mounting interface: 75 x 75 mm
- Anti-glare screen: Yes
Performance
- On Screen Display (OSD): Yes
- On Screen Display (OSD) languages: CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN
- Number of OSD languages: 8
- Mean time between failures (MTBF): 50000 h
Power
- Power consumption (typical): 8 W
- Power consumption (sleep): 0.8 W
- Power consumption (off): 0.15 W
- Energy efficiency class (SDR): D
- Energy consumption (SDR) per 1000 hours: 8 kWh
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Energy efficiency scale: A to G
Weight & dimensions
- Display width: 359.73 mm
- Display depth: 14.97 mm
- Display height: 218.82 mm
- Display weight: 1110 g
Packaging data
- Package width: 432 mm
- Package depth: 93 mm
- Package height: 295 mm
- Package weight: 1910 g
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 20 - 80 %
- Storage temperature (T-T): -20 - 60 °C
- Storage relative humidity (H-H): 10 - 95 %
Logistics data
- Quantity per pack: 1 pc(s)
Other features
- Aspect ratio: 16
