Elo Touch Solutions E143391, 54.6 cm (21.5"), 1920 x 1080 pixels, TFT, 250 cd/m², Projected capacitive system, 1000:1

ELO TOUCH SYSTEMSSKU: E143391
21.5'', TFT LCD, 16:9, 1920 x 1080 @ 60Hz, PCAP, Rockchip RK3399, 4/32, Linux Debian 10, 1x USB 3.0 Type C, Micro SD, GPIO, 1x LAN, DC, 5MP, Wi-Fi, Bluetooth 5.0, 524.8 x 324.8 x 29.7 mm, 4.3 kg, Black

Pris:
Reapris9,815.62 kr eks. mva.
Lager:
2 st i lager

I-Series Linux computer. Secure. Flexible. Powerful.

Modular, Linux touchscreen platform.
Used across the globe for everything from self-service, point-of-sale and price checkers to industrial controls and visitor management, the I-Series platform provides a versatile Linux touchscreen computer to power almost any application.

Experience the Elo approach to Linux.
With decades of development and customizations made to support global enterprise customers, Elo’s Linux-based platform offers Linux device drivers, uniform SDKs, a constantly growing set of tools and an expansive lineup across sizes and form factors.

Create your perfect POS system.
Transform the I-Series Linux computer into a powerful, industrial-design POS system that scales with your business.

Amazing touchscreen kiosks.
From self-order and self-checkout to order pickup and virtual assistants, pair the I-Series Linux device with a variety of stands to create your perfect kiosk.

Build engaging brand experiences.
Educate buyers, create brand awareness and drive purchases in store with an easy-to-use Linux touchscreen platform that can adapt as needs change.

Commercial-grade performance.
Equipped with Rockchip 6-core processor and your choice of Debian 10 OS distributions or newer, the I-Series Linux computer delivers the performance your business needs.

Expand with Edge Connect.
With the Elo Edge Connect system, you can seamlessly attach any combination of peripherals to the edge of the Linux touchscreen, including payment devices, cameras, barcode readers and more.

Do more with power over ethernet (POE).
With the POE adapter, you can say goodbye to your power adapter and the expense of power drops. All you need is a POE-capable network and to connect the POE adapter to the I-Series Linux computer.

Display

  • Display diagonal: 21.5 "
  • Display resolution: 1920 x 1080 pixels
  • Touchscreen: Yes
  • Display type: TFT
  • Response time: 5 ms
  • Viewing angle, vertical: 160 °
  • Viewing angle, horizontal: 170 °
  • Display brightness: 250 cd/m²
  • Aspect ratio: 16
  • Contrast ratio (typical): 1000
  • Display number of colours: 16.78 million colours
  • Touchscreen technology: Projected capacitive system

Processor

  • Processor manufacturer: Rockchip
  • Processor family: Rockchip
  • Processor model: RK3399

Memory

  • Internal memory: 4 GB

Storage

  • Total storage capacity: 32 GB

Multimedia

  • Built-in speaker(s): Yes
  • Number of speakers: 2

Network

  • Ethernet LAN: Yes
  • Bluetooth: Yes
  • Wi-Fi: Yes
  • Wi-Fi standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)

Ports & interfaces

  • Ethernet LAN (RJ-45) ports: 1
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
  • Powered USB: Yes
  • Microphone in: Yes
  • DC-in jack: Yes

Design

  • Product colour: Black

Software

  • Operating system installed: Linux
  • Linux operating systems supported: Debian 10

Power

  • AC input voltage: 100-240 V
  • AC input frequency: 50-60 Hz

Operational conditions

  • Storage relative humidity (H-H): 5 - 95 %
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 50 °C
  • Operating relative humidity (H-H): 20 - 80 %

Ergonomics

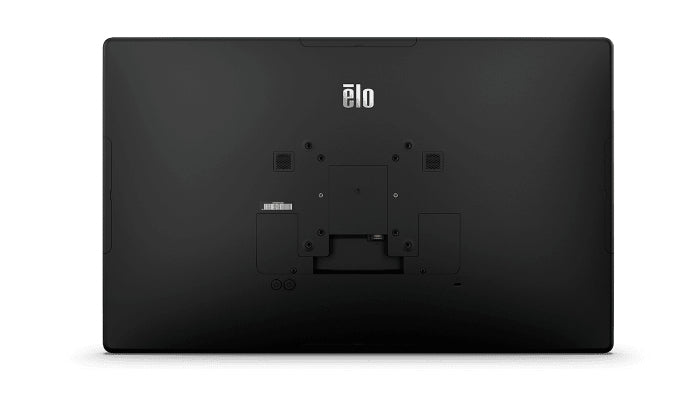

  • VESA mounting: Yes
  • Panel mounting interface: 75 x 75,75 x 100,100 x 100,100 x 75 mm
  • Mean time between failures (MTBF): 50000 h

Weight & dimensions

  • Width: 524.8 mm
  • Depth: 324.8 mm
  • Height: 29.7 mm
  • Weight: 4300 g

Packaging data

  • Package width: 600 mm
  • Package depth: 168 mm
  • Package height: 406 mm
  • Package weight: 7300 g
+
