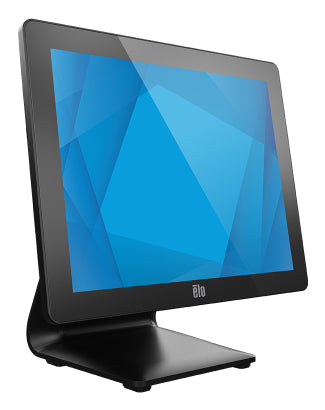

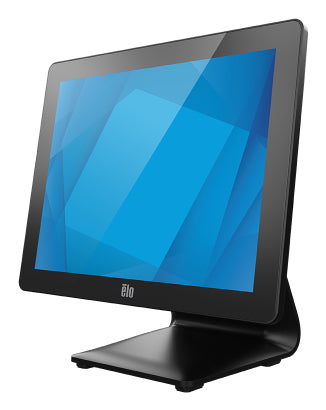

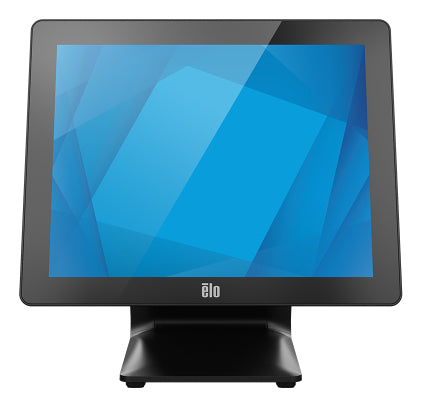

Modular design. Endless versatility.
Available in sizes ranging from 15 to 24 inches, including with and without stand options, you can easily configure the I‑Series to fit the needs of your business - from signage and point-of-sale to self-service, automation controls and more.
Universal VESA Mount
Conveniently mount the I‑Series with the built‑in VESA mount.
Expand with Edge Connect
Seamlessly attach a variety of peripherals to the edge of the touchscreen.
Reliable, security and performance.
Built with the reliability-tested performance and security of Intel 12th Generation processors, integrated Trusted Platform Modules, Intel vPro™ and the Windows 10 operating system, the I‑Series 3 delivers the dependability businesses need.
Enhanced connectivity
for all your accessories.
Support for Linux.
For added flexibility, the I‑Series 3 offers no OS models, all pretested with Linux SuSE, Ubuntu and Red Hat operating systems.
Bridge the gap between Windows and Android.
Transitioning to Android in the future? Elo Bridge is the perfect solution. Simply choose the Elo Windows device that fits your needs today, and when you are ready to transition to Android, you can use Elo Bridge to migrate your fleet of devices.
Get peace of mind
with EloCare
Display
- Display diagonal: 15.6 "
- Display resolution: 1024 x 768 pixels
- Touchscreen: Yes
- HD type: XGA
- LED backlight: Yes
- Touch technology: Multi-touch
- Native aspect ratio: 4
- Display brightness: 400 cd/m²
- Panel type: TFT-LCD
- Response time: 23 ms
- Viewing angle, vertical: 150 °
- Viewing angle, horizontal: 160 °
- Screen shape: Flat
Processor
- Processor manufacturer: Intel
- Processor family: Intel® Core™ i5
- Processor model: i5-1245UL
- Processor cores: 10
- Processor threads: 12
- Processor boost frequency: 4.4 GHz
- Processor frequency: 4.4 GHz
- Performance cores: 2
- Efficient cores: 8
- Performance-core Max Turbo Frequency: 4.4 GHz
- Efficient-core Max Turbo Frequency: 2.5 GHz
- Processor cache: 8 MB
- Processor cache type: Smart Cache
- Processor base power: 15 W
- Maximum turbo power: 28 W
Memory
- Internal memory: 16 GB
- Internal memory type: DDR5-SDRAM
- Maximum internal memory: 64 GB
- Memory slots: 2
- Memory slots type: SO-DIMM
- Memory clock speed: 4800 MHz
- Memory layout (slots x size): 1 x 16 GB
- Memory form factor: DIMM/SO-DIMM
Storage
- Total storage capacity: 256 GB
- Storage media: SSD
- Number of storage drives supported: 1
- Number of storage drives installed: 1
- Total SSDs capacity: 256 GB
- Number of SSDs installed: 1
- SSD capacity: 256 GB
- NVMe: Yes
- SSD interface: M.2
- SSD form factor: M.2
- Optical drive type: No
Graphics
- Discrete graphics card: No
- Discrete graphics card model: Not available
- On-board graphics card: Yes
- On-board GPU manufacturer: Intel
- On-board graphics card family: Intel Iris Xe Graphics
- On-board graphics card model: Intel Iris Xe Graphics
Audio
- Built-in speaker(s): Yes
- Number of speakers: 2
- RMS rated power: 4 W
Camera
- Built-in camera: No
Network
- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
- Wi-Fi standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)
- Ethernet LAN: Yes
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- Bluetooth: Yes
- Bluetooth version: 5.3
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
- HDMI ports quantity: 0
- Headphone outputs: 1
Design
- Product colour: Black
- Panel mounting interface: 75 x 75 mm
- Wall mountable: Yes
- VESA mounting: Yes
Performance
- Product type: All-in-One PC
- Market positioning: Business
- Trusted Platform Module (TPM): Yes
- Trusted Platform Module (TPM) version: 2.0
Software
- Operating system installed: Windows 11 IoT Enterprise
- Operating system architecture: 64-bit
Power
- AC adapter power: 180 W
- AC adapter frequency: 50 - 60 Hz
- AC adapter input voltage: 100 - 240 V
- AC adapter output voltage: 24 V
- Power consumption (off): 0.5 W
- Power consumption (standby): 5 W
Weight & dimensions
- Width (with stand): 359.5 mm
- Depth (with stand): 356 mm
- Height (with stand): 197.5 mm
- Weight (with stand): 6700 g
- Package width: 497 mm
- Package depth: 487 mm
- Package height: 345 mm
- Package weight: 10260 g
Operational conditions
- Operating temperature (T-T): 0 - 35 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 20 - 80 %
- Storage relative humidity (H-H): 5 - 95 %
Certificates
- Compliance certificates: CB,CCC,Federal Communications Commission (FCC),Norma Oficial Mexicana (NOM),RCM,RoHS,State Radio Regulation of China (SRRC),UKCA,VCCI,CE,Industry Canada (IC)
Sustainability
- Sustainability certificates: ENERGY STAR
Packaging content
- Power cord included: Yes
- Cables included: AC
- Quick start guide: Yes
Other features
- Mean time between failures (MTBF): 50000 h
