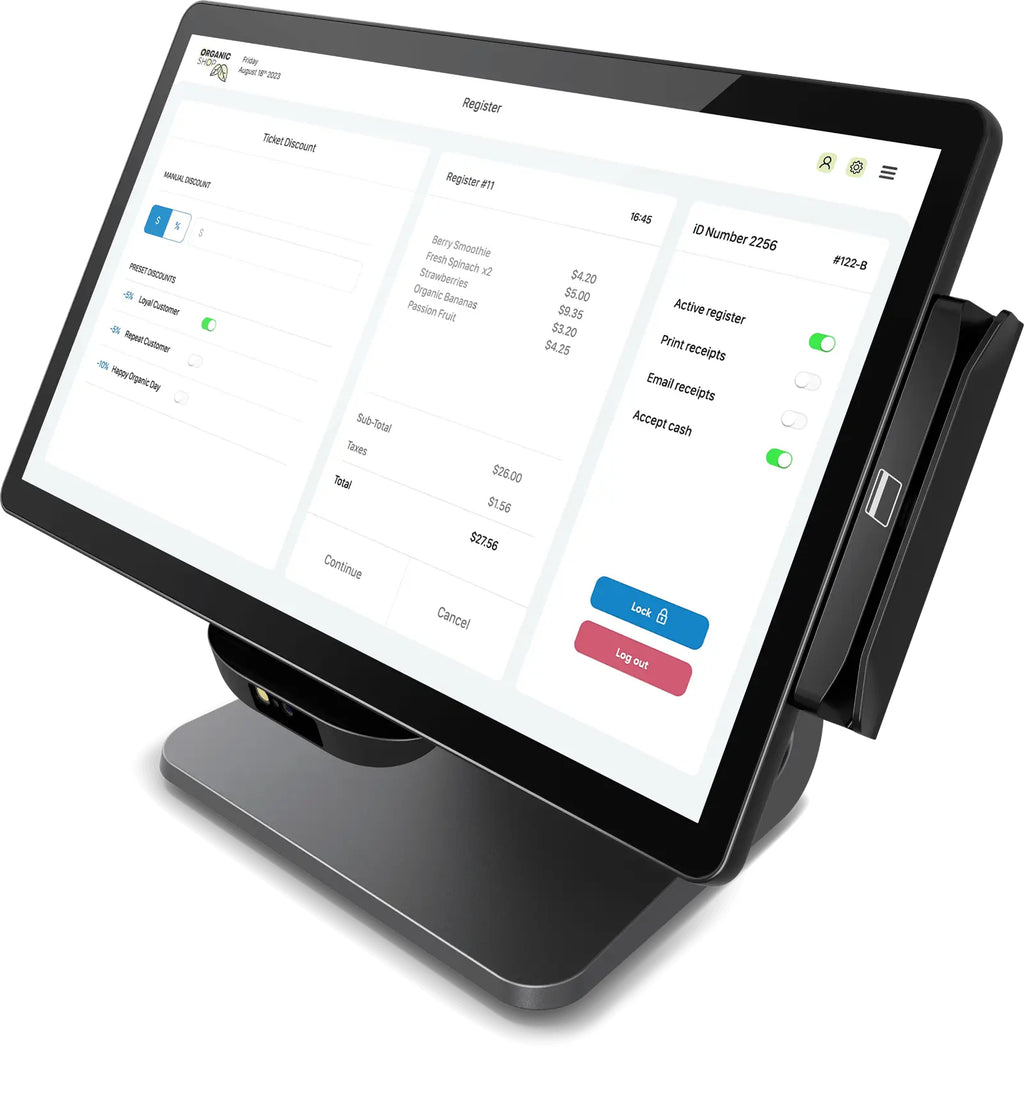

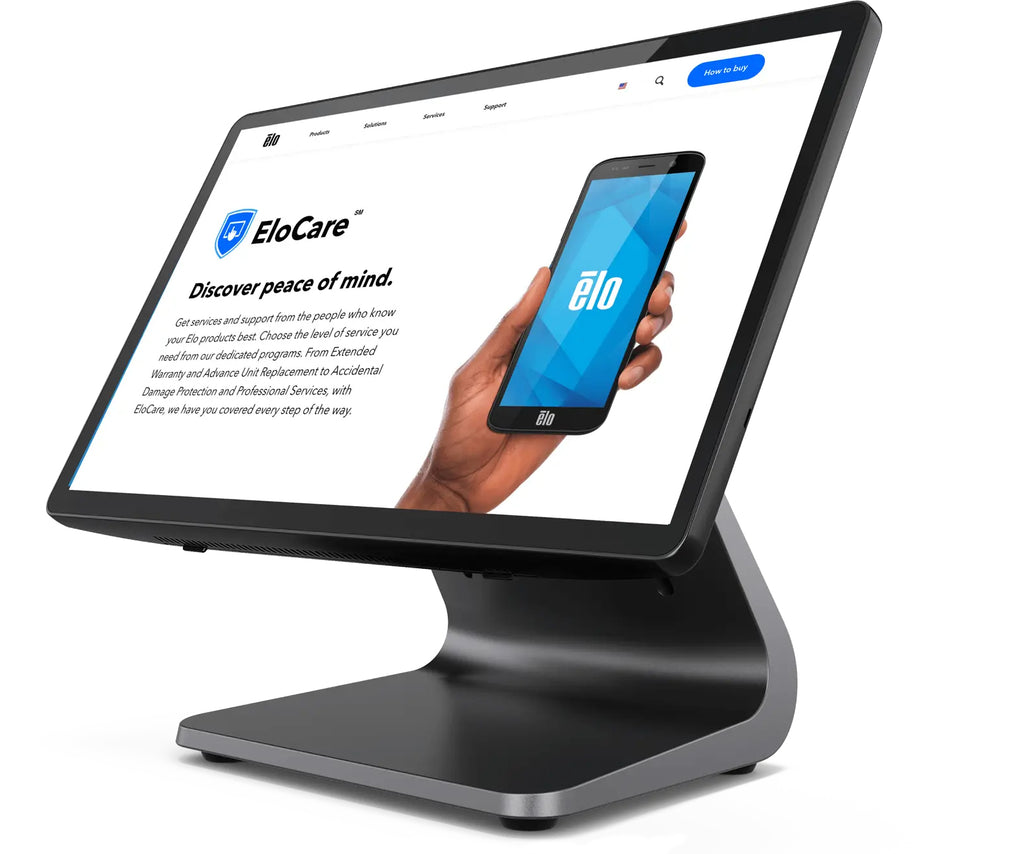

E-Series 3 with Intel Touchscreen Computer.
Purpose-built for point of sale, the E-Series 3 offers a 15.6-inch touchscreen display, powerful Intel processor and integrated connectivity for all the peripherals you need. From cash drawers and printers to barcode scanners and payment devices - there is connectivity to cover it all.
Add a customer- facing display.
The E-Series 3 includes USB-C connectivity, allowing you to easily connect a customer-facing display - providing touch, data and power with just one cable.
Expand with Elo Edge Connect.
Seamlessly attach up to two peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!
Display
- Display diagonal: 15.6 "
- Display resolution: 1920 x 1080 pixels
- Display type: LED
- Display brightness: 200 cd/m²
- Touchscreen: Yes
- Touchscreen type: Capacitive
- Contrast ratio (typical): 500
- Viewing angle, horizontal: 178 °
- Native aspect ratio: 16
- Response time: 25 ms
- Viewing angle, vertical: 178 °
- Number of colours: 262144 colours
- Panel type: TFT-LCD
- Native refresh rate: 60 Hz
Features
- Product colour: Black
- VESA mounting: Yes
- Windows operating systems supported: Windows 11
- Mean time between failures (MTBF): 50000 h
Processor
- Processor manufacturer: Intel
- Processor base frequency: 3.6 GHz
- Processor cache: 6 MB
Storage
- Total storage capacity: 128 GB
- Storage media: SSD
Ports & interfaces
- Optional connectivity: Bluetooth,Wireless LAN
Memory
- Internal memory: 8 GB
Power
- Power source type: AC
Weight & dimensions
- Height: 298.4 mm
- Weight: 3200 g
- Width: 370.4 mm
- Depth: 182.6 mm
Packaging data
- Package depth: 262 mm
- Package width: 465 mm
- Package weight: 5000 g
- Package height: 376 mm
Operational conditions
- Operating temperature (T-T): 0 - 35 °C
- Storage relative humidity (H-H): 5 - 95 %
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 20 - 80 %
Audio
- Built-in speaker(s): Yes
- Number of speakers: 2
- RMS rated power: 4 W
