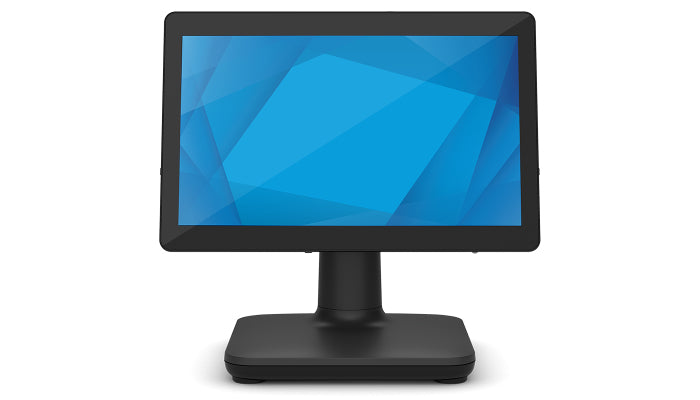

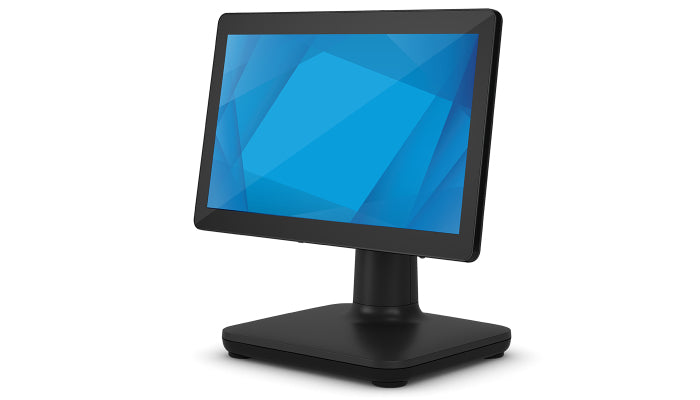

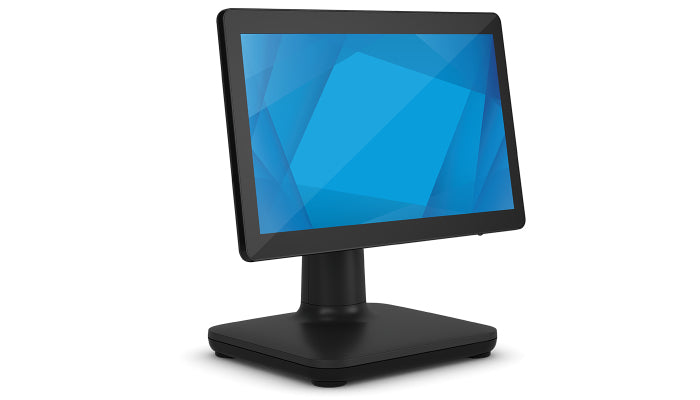

E-Series 2 POS system.
Purpose-built for point of sale, the E-Series 2 offers a 15.6-inch touchscreen display, Intel’s 8th generation Celeron processor and an integrated expansion hub to connect the peripherals you need.
Expand with Elo Edge Connect.
Seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!
Add a customer-facing display with ease.
The E-Series 2 includes USB-C connectivity, allowing you to easily connect a customer-facing display - providing touch, data and power with just one cable.
Connect all of your POS accessories.
Integrated into the base of the stand, the expansion hub allows you to connect all of the POS peripheral support you need. From cash drawers and printers to barcode scanners and payment devices — there is connectivity to cover it all.
Windows or Linux. You choose.
The E-Series 2 utilizes the reliability-tested performance and security of Intel’s 8th Generation Celeron processor, integrated Trusted Platform Modules and the Windows 10 operating system. For added flexibility, the E-Series 2 offers models with no OS - all pretested with Linux SuSE, Ubuntu and Red Hat operating systems.
A POS system you can count on.
Rigorously tested and backed by a three-year warranty. With splash-proof housing and a rugged retail-hardened design, the E-Series 2 can withstand the adverse conditions associated with most commercial environments.
Display
- Display diagonal: 15.6 "
- Display resolution: 1366 x 768 pixels
- Touchscreen: Yes
- Display type: TFT
- Effective viewing area: 344.2 x 193.5 mm
- Display brightness: 187 cd/m²
- Contrast ratio (typical): 400
- Response time: 10 ms
- Display number of colours: 262144 colours
- Aspect ratio: 16
- Viewing angle, vertical: 50 °
- Viewing angle, horizontal: 45 °
Processor
- Processor family: Intel® Celeron®
- Processor model: J4125
- Processor cores: 4
- Processor frequency: 2 GHz
- Processor cache: 4 MB
- Processor front side bus: 2.7 MHz
Memory
- Internal memory: 4 GB
- Internal memory type: DDR4-SDRAM
- Maximum internal memory: 8 GB
- Number of memory slots: 2
- Memory slots type: SO-DIMM
- Memory clock speed: 2666 MHz
Storage
- Total storage capacity: 128 GB
- Storage media: SSD
- Number of storage drives supported: 1
- SSD capacity: 128 GB
- SSD interface: SATA
- SSD form factor: M.2
Graphics
- Graphics card manufacturer: Intel
- Graphics card: UHD Graphics 600
Features
- Certification: UL/cUL, FCC, TUV, CE, CB, NOM, S-Mark, UKCA
Multimedia
- Built-in speaker(s): Yes
- Number of speakers: 2
Network
- Ethernet LAN: Yes
- Ethernet LAN data rates: 10,100,1000 Mbit/s
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
- Powered USB: Yes
- Serial ports quantity: 1
Design
- Chassis type: All-in-one
- Product colour: Black
- Built-in cash drawer: Yes
Performance
- Trusted Platform Module (TPM): Yes
- Trusted Platform Module (TPM) version: 2.0
Software
- Operating system installed: Windows 10
Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- AC adapter output voltage: 24 V
- Power supply: 180 W
- Power consumption (typical): 24 W
Operational conditions
- Operating temperature (T-T): 0 - 35 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 20 - 80 %
- Storage relative humidity (H-H): 5 - 95 %
Ergonomics
- VESA mounting: Yes
- Panel mounting interface: 75 x 100 mm
- Mean time between failures (MTBF): 50000 h
Weight & dimensions
- Width: 386.2 mm
- Depth: 369.3 mm
- Height: 221.2 mm
- Weight: 4700 g
Packaging data
- Package width: 462 mm
- Package depth: 299 mm
- Package height: 470 mm
- Package weight: 6900 g
Security
- Cable lock slot: Yes
- Cable lock slot type: Kensington
