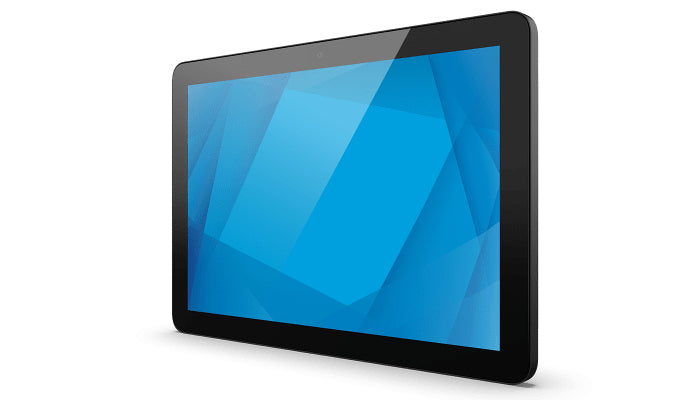

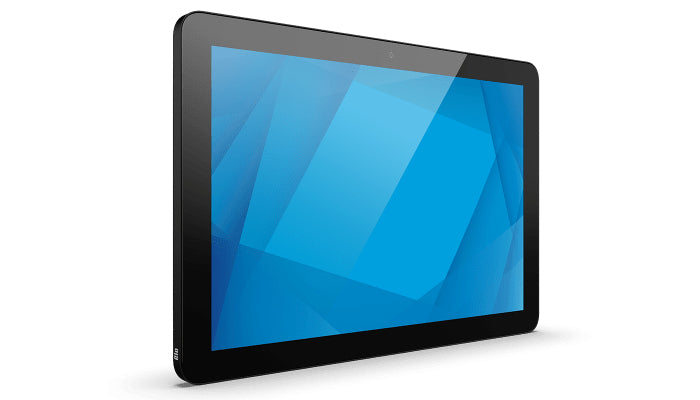

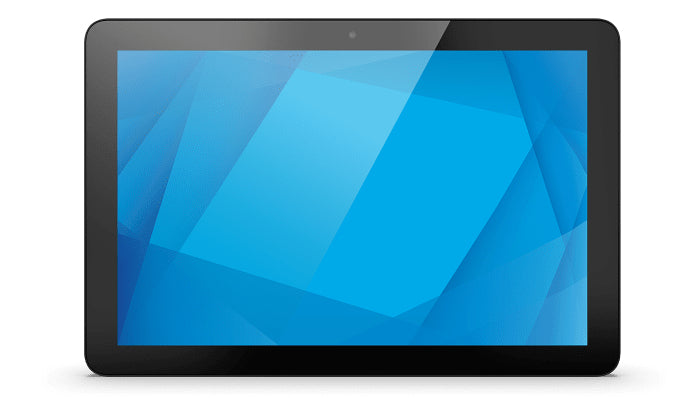

I-Series Linux computer.
Secure. Flexible. Powerful.
Modular, Linux touchscreen platform.
Used across the globe for everything from self-service, point-of-sale and price checkers to industrial controls and visitor management, the I-Series platform provides a versatile Linux touchscreen computer to power almost any application.
Experience the Elo approach to Linux.
With decades of development and customizations made to support global enterprise customers, Elo’s Linux-based platform offers Linux device drivers, uniform SDKs, a constantly growing set
of tools and an expansive lineup across sizes and form factors.
One product. Thousands of uses.
Linux device built for Debian OS distributions.
Create your perfect POS system.
Transform the I-Series Linux computer into a powerful, industrial-design POS system that scales with your business.
Amazing touchscreen kiosks.
From self-order and self-checkout to order pickup and virtual assistants, pair the I-Series Linux device with a variety of stands to create your perfect kiosk.
Build engaging brand experiences.
Educate buyers, create brand awareness and drive purchases in store with an easy-to-use Linux touchscreen platform that can adapt as needs change.
Commercial-grade performance.
Equipped with Rockchip 6-core processor and your choice of Debian 10 OS distributions or newer, the I-Series Linux computer delivers the performance your business needs.
Expand with Edge Connect.
With the Elo Edge Connect system, you can seamlessly attach any combination of peripherals to the edge of the Linux touchscreen, including payment devices, cameras, barcode readers and more.
Do more with power over ethernet (POE).
With the POE adapter, you can say goodbye to your power adapter and the expense of power drops. All you need is a POE-capable network and to connect the POE adapter to the I-Series Linux computer.
Get peace of mind with EloCare.
From advance unit replacement to accidental damage protection, EloCare delivers service and support from the people who know your Elo Linux device best.
- Advance Unit Replacement
- Extended Warranty
- Accidental Damage Protection
- Professional Services
Display
- Display diagonal: 10 "
- Display resolution: 1280 x 800 pixels
- Touchscreen: Yes
- Display type: TFT
- Touchscreen technology: Projected capacitive system
- Viewing angle, horizontal: 170 °
- Display number of colours: 16.78 million colours
- Contrast ratio (typical): 800
- Effective viewing area: 217 x 136 mm
- Viewing angle, vertical: 170 °
- Response time: 25 ms
- Aspect ratio: 16
- Display brightness: 250 cd/m²
Processor
- Processor manufacturer: Rockchip
- Processor model: RK3399
Memory
- Internal memory: 4 GB
Storage
- Total storage capacity: 32 GB
Features
- Certification: UL/cUL (US) FCC (US) IC (Canada) CE (Europe) CB (International) VCCI, MIC (Japan) RCM (Australia) ANATEL (Brazil)
Multimedia
- Built-in speaker(s): Yes
- Number of speakers: 2
- Card reader integrated: Yes
- Compatible memory cards: MicroSD (TransFlash)
Network
- Bluetooth: Yes
- Wi-Fi standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
- Wi-Fi: Yes
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
- Microphone in: Yes
- DC-in jack: Yes
Design
- Product colour: Black
Software
- Operating system installed: Linux
Power
- AC input voltage: 100-240 V
- AC input frequency: 50-60 Hz
- Power consumption (typical): 7.2 W
Operational conditions
- Storage temperature (T-T): -20 - 50 °C
- Storage relative humidity (H-H): 5 - 95 %
- Operating relative humidity (H-H): 20 - 80 %
- Operating temperature (T-T): 0 - 40 °C
Ergonomics

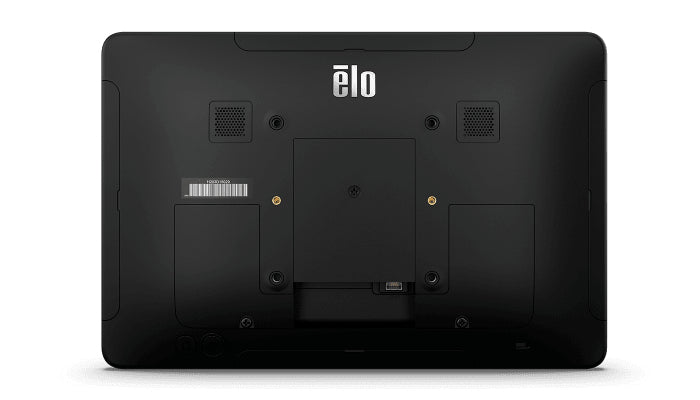

- VESA mounting: Yes
- Panel mounting interface: 75 x 75 mm
Weight & dimensions
- Width: 252.9 mm
- Depth: 22.1 mm
- Height: 169 mm
- Weight: 800 g
Packaging data
- Quantity per pack: 1 pc(s)
- Package width: 315 mm
- Package depth: 140 mm
- Package height: 228 mm
- Package weight: 2200 g
Packaging content
- Cables included: Power
- Quick start guide: Yes
