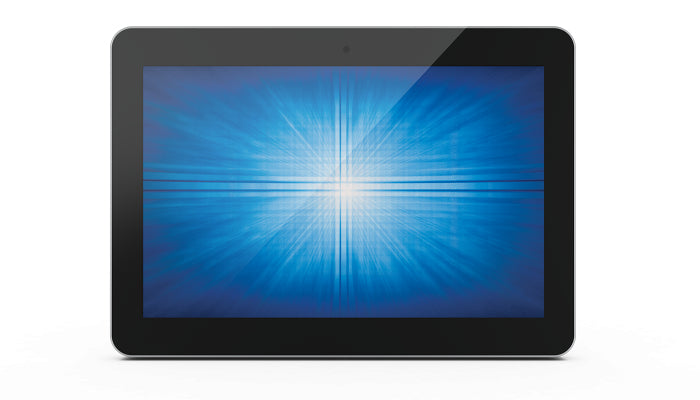

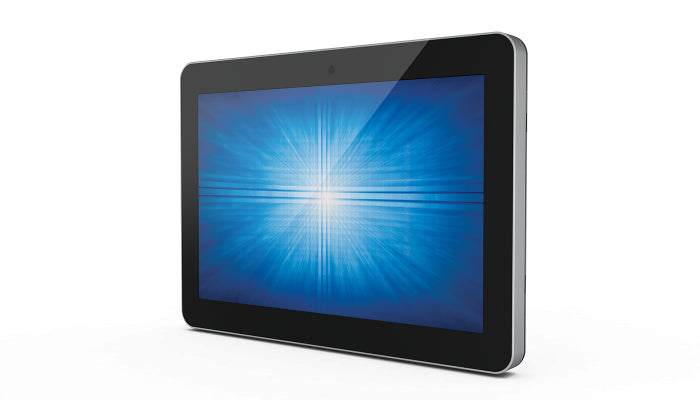

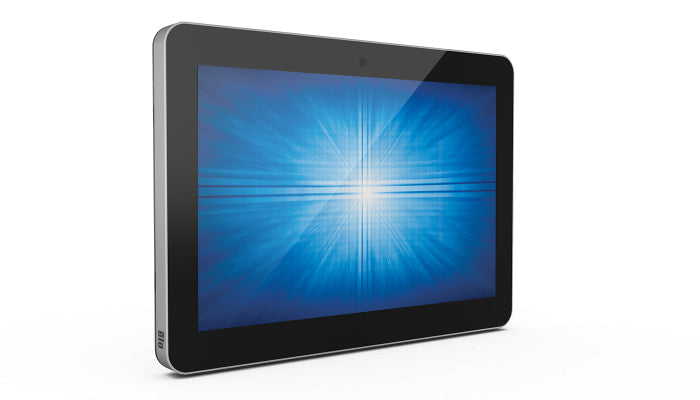

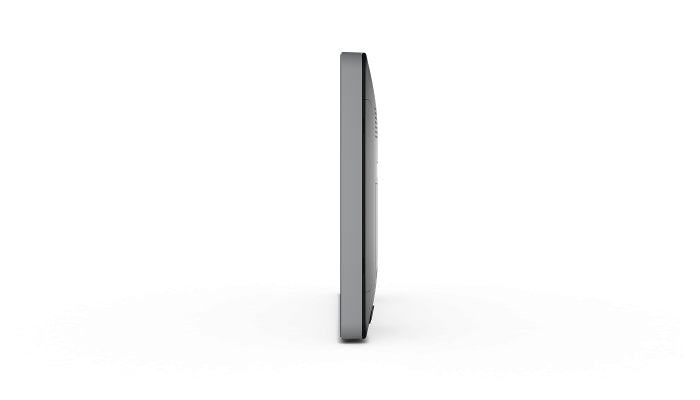

Elo Touch Solutions I-Series 2.0, 25.6 cm (10.1"), 1280 x 800 pixels, 344 cd/m², Projected capacitive system, 800:1, 170°

ELO TOUCH SYSTEMSSKU: E611101
I-Series 2.0 f / Android 10.1" AiO Touchscreen, PCAP, Gigabit Ethernet, 802.11b/g/n/ac + Bluetooth 4.1, Black, Value Model
Pris:
6,109.88 kr eks. mva.
Lager:
Preliminärt i lager
Kategorier: Accessories, DataCapture/Point-of-Sales

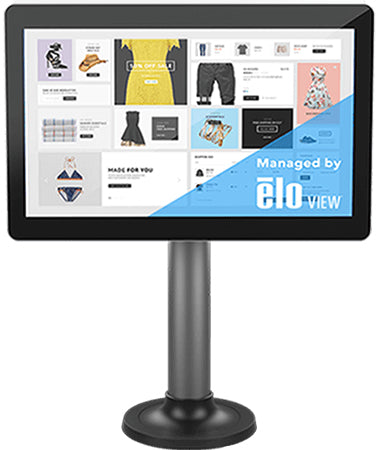

A revolutionary interactive platform connecting hardware and software that is easy to use, quick to deploy and affordable. EloView is a secure management platform for remote content delivery and device management. Whether you need to push new content to a device or simply change the screen brightness, EloView delivers.

EloView is a software-as-a-service (SaaS) platform designed to simplify and automate the configuration and deployment of interactive displays across multiple locations. Use EloView to deliver your marketing content and create attractive, engaging, and educational public-facing interactive experiences.

Display

  • Display diagonal: 10.1 "
  • Display resolution: 1280 x 800 pixels
  • Touchscreen: Yes
  • Display number of colours: 16.78 million colours
  • Effective viewing area: 216.96 x 135.6 mm
  • Response time: 25 ms
  • Display brightness: 344 cd/m²
  • Touchscreen technology: Projected capacitive system
  • Aspect ratio: 16
  • Contrast ratio (typical): 800
  • Viewing angle, vertical: 170 °
  • Viewing angle, horizontal: 170 °

Processor

  • Processor family: Qualcomm Snapdragon
  • Processor model: APQ8053
  • Processor cores: 8
  • Processor frequency: 2 GHz

Memory

  • Internal memory: 2 GB
  • Internal memory type: DDR3L-SDRAM

Storage

  • Total storage capacity: 16 GB
  • Storage media: SSD
  • SSD capacity: 16 GB

Features

  • Certification: UL/cUL, FCC (US) IC (Canada) CE (Europe) CB (International) CCC, SRRC, China RoHS (China) VCCI, MIC (Japan) RCM (Australia)

Multimedia

  • Built-in speaker(s): Yes
  • Number of speakers: 2
  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash)

Network

  • Ethernet LAN: Yes
  • Ethernet LAN data rates: 10,100,1000 Mbit/s
  • Wi-Fi: Yes
  • Wi-Fi standards: Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n)

Ports & interfaces

  • Ethernet LAN (RJ-45) ports: 1
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
  • DVI port: No

Design

  • Chassis type: All-in-one
  • Product colour: Black

Software

  • Operating system installed: Android 7.1

Power

  • AC input voltage: 100 - 240 V
  • AC input frequency: 50 - 60 Hz
  • Power consumption (typical): 10.2 W

Operational conditions

  • Relative humidity: 5 - 95 %
  • Storage temperature (T-T): -20 - 50 °C
  • Operating relative humidity (H-H): 20 - 80 %
  • Operating temperature (T-T): 0 - 40 °C

Ergonomics

  • Wall mountable: Yes

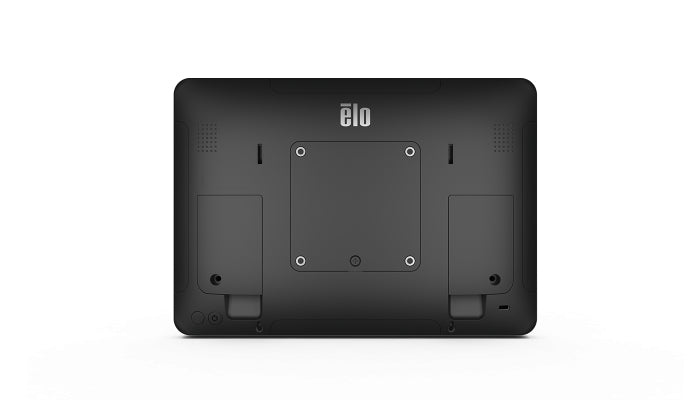

  • VESA mounting: Yes
  • Panel mounting interface: 75 x 75 mm
  • Mean time between failures (MTBF): 50000 h

Weight & dimensions

  • Width: 255.41 mm
  • Depth: 25.1 mm
  • Height: 181.11 mm
  • Weight: 880 g

Packaging data

  • Package width: 330 mm
  • Package depth: 140 mm
  • Package height: 250 mm
  • Package weight: 2070 g
+
