The capable, affordable POS printer with versatile connectivity

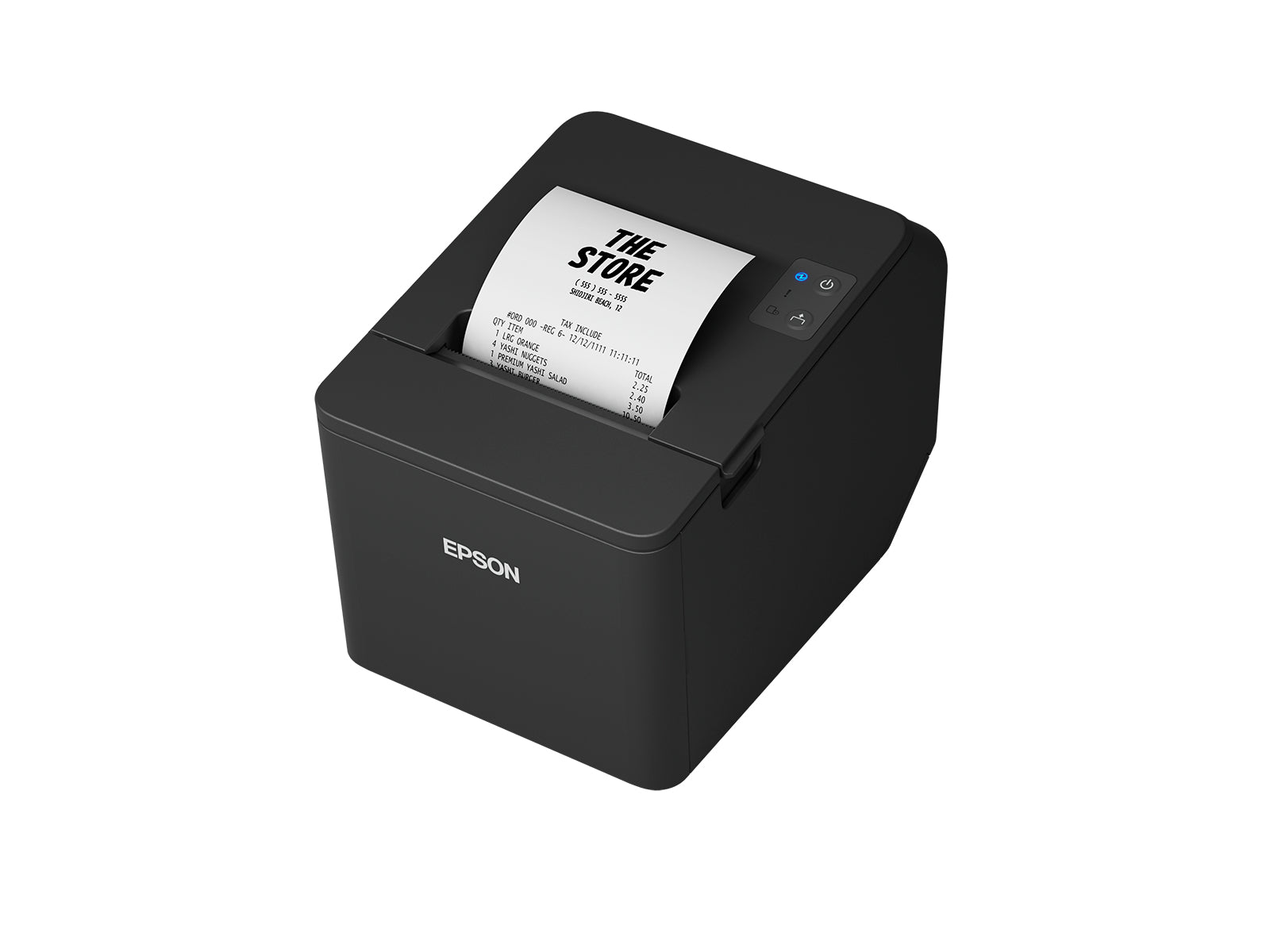

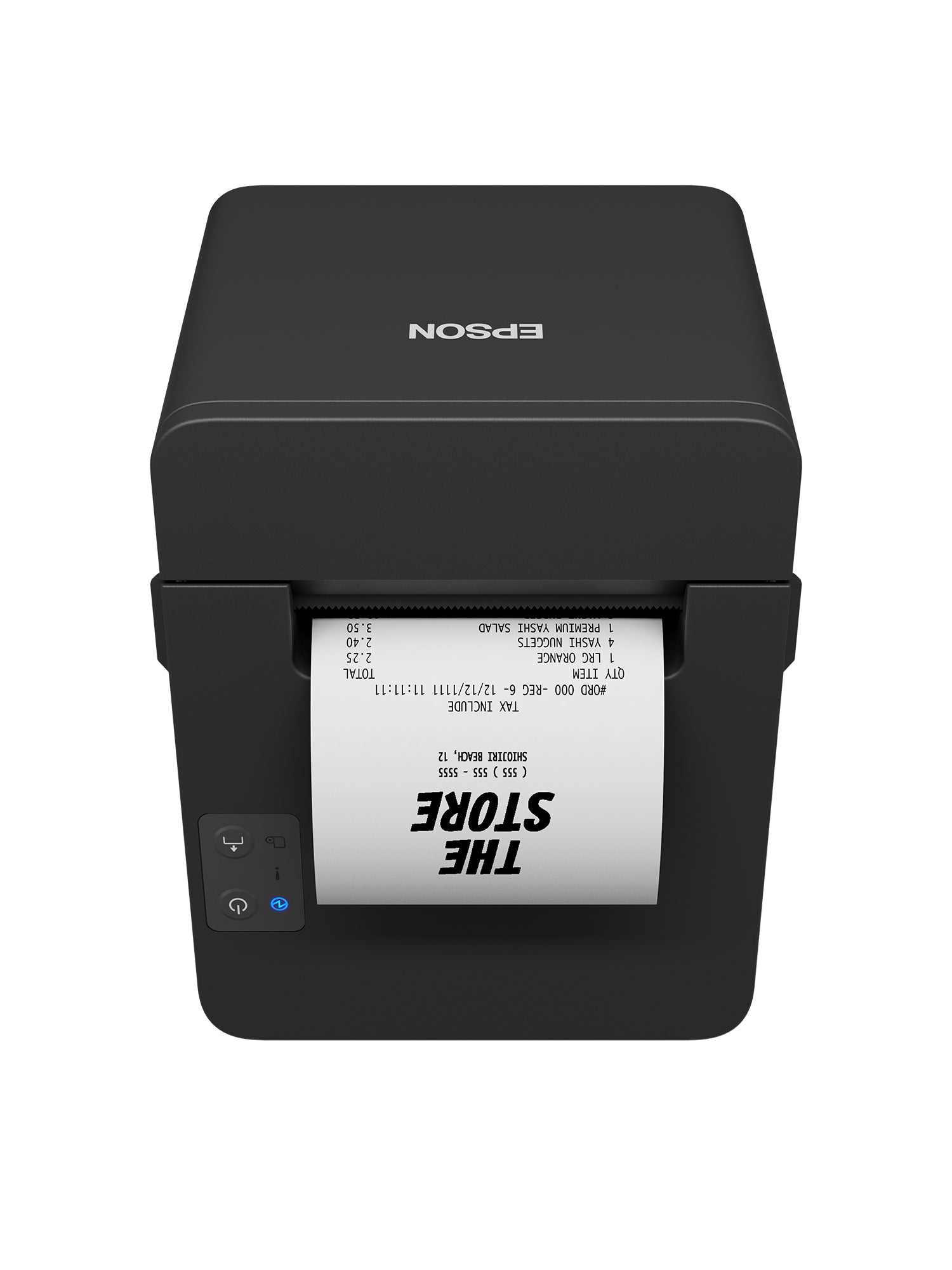

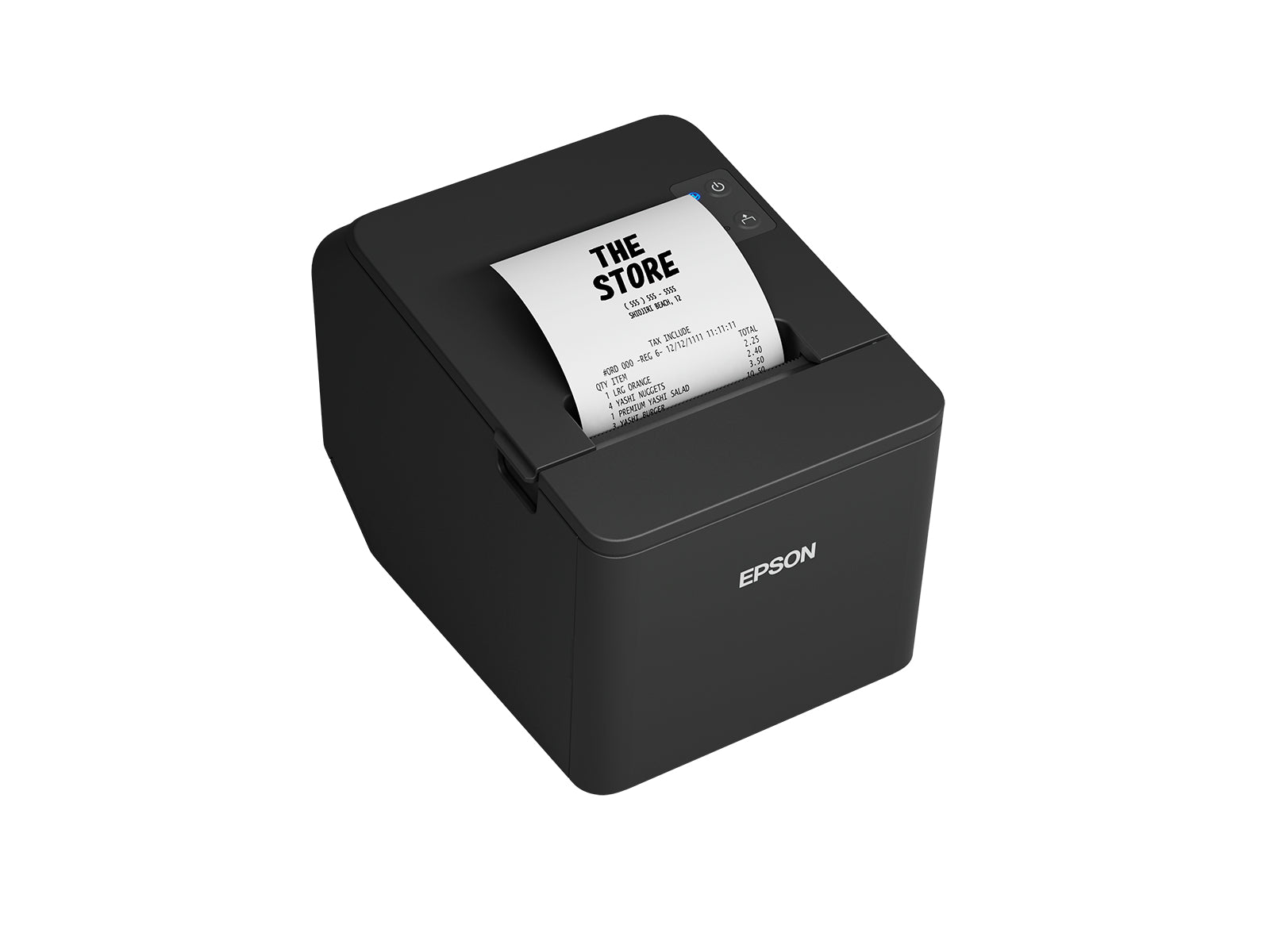

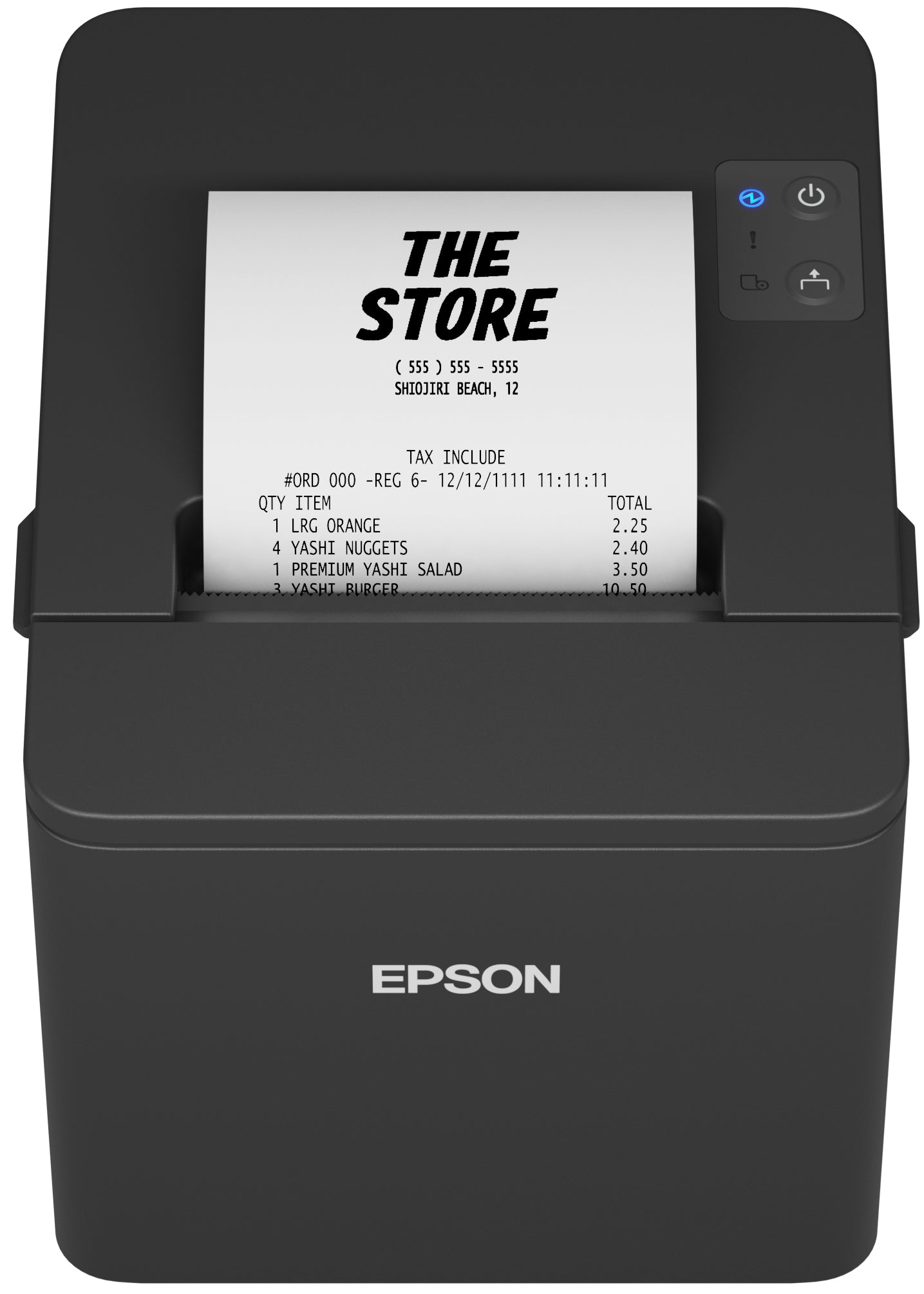

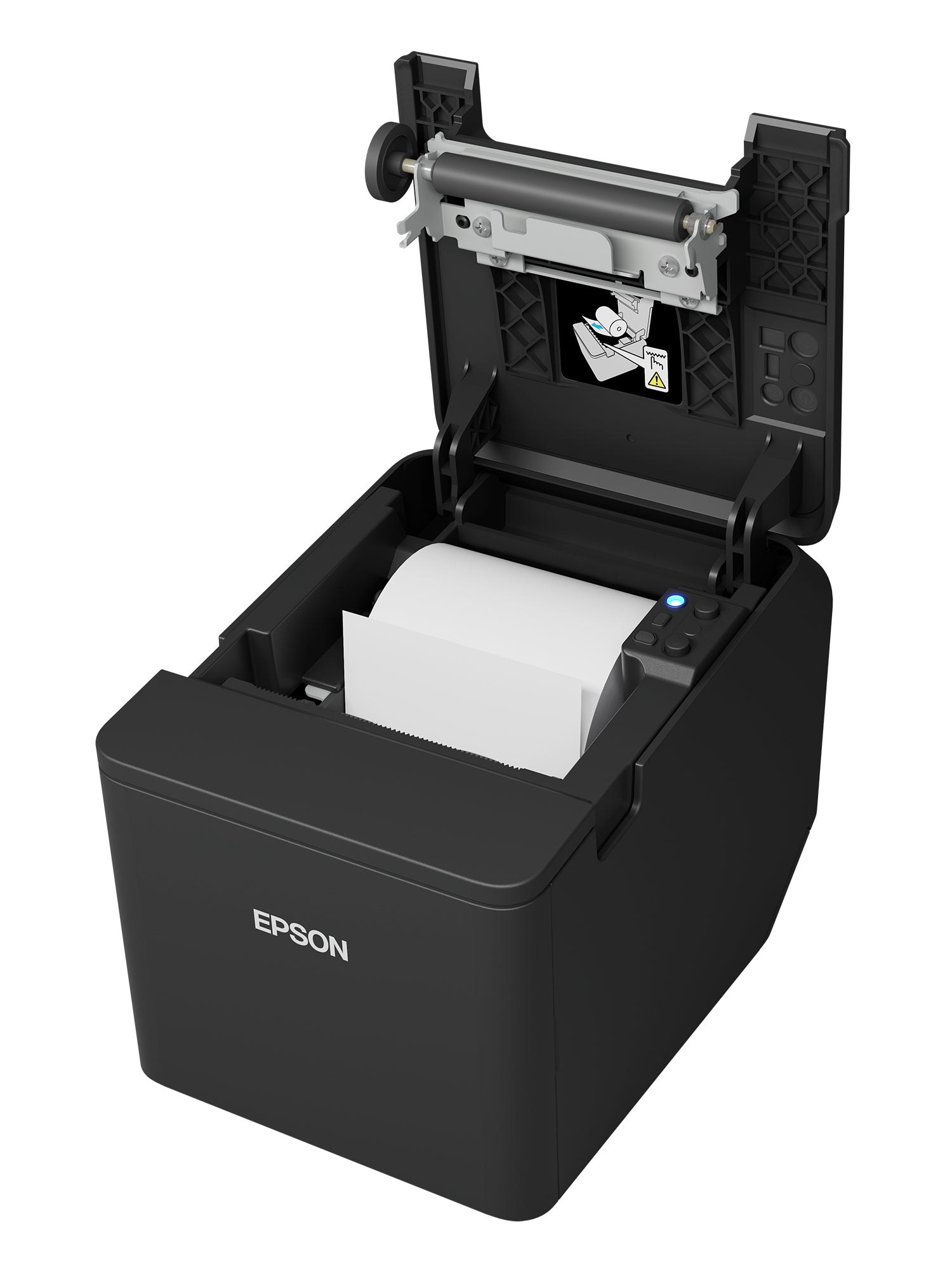

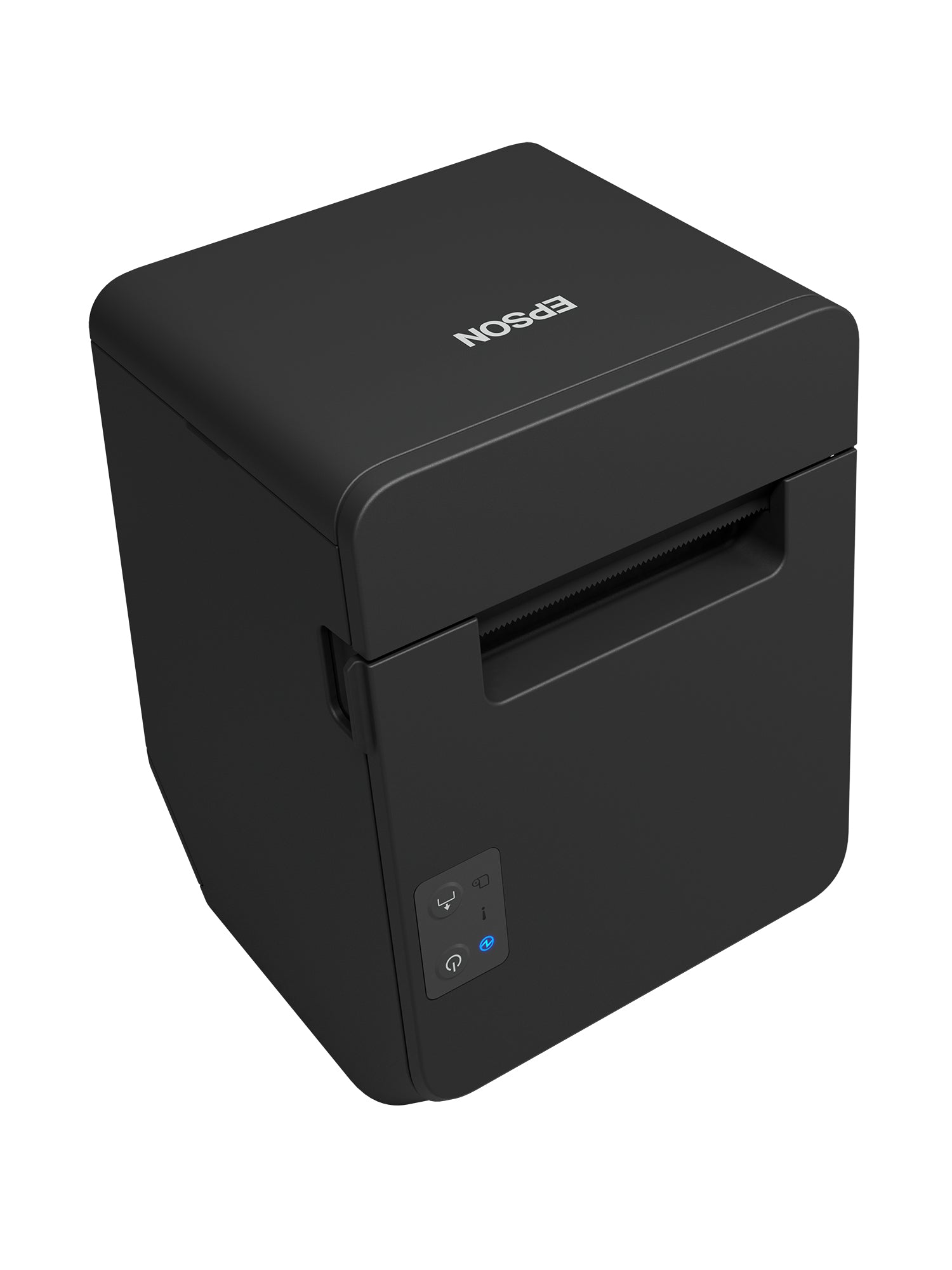

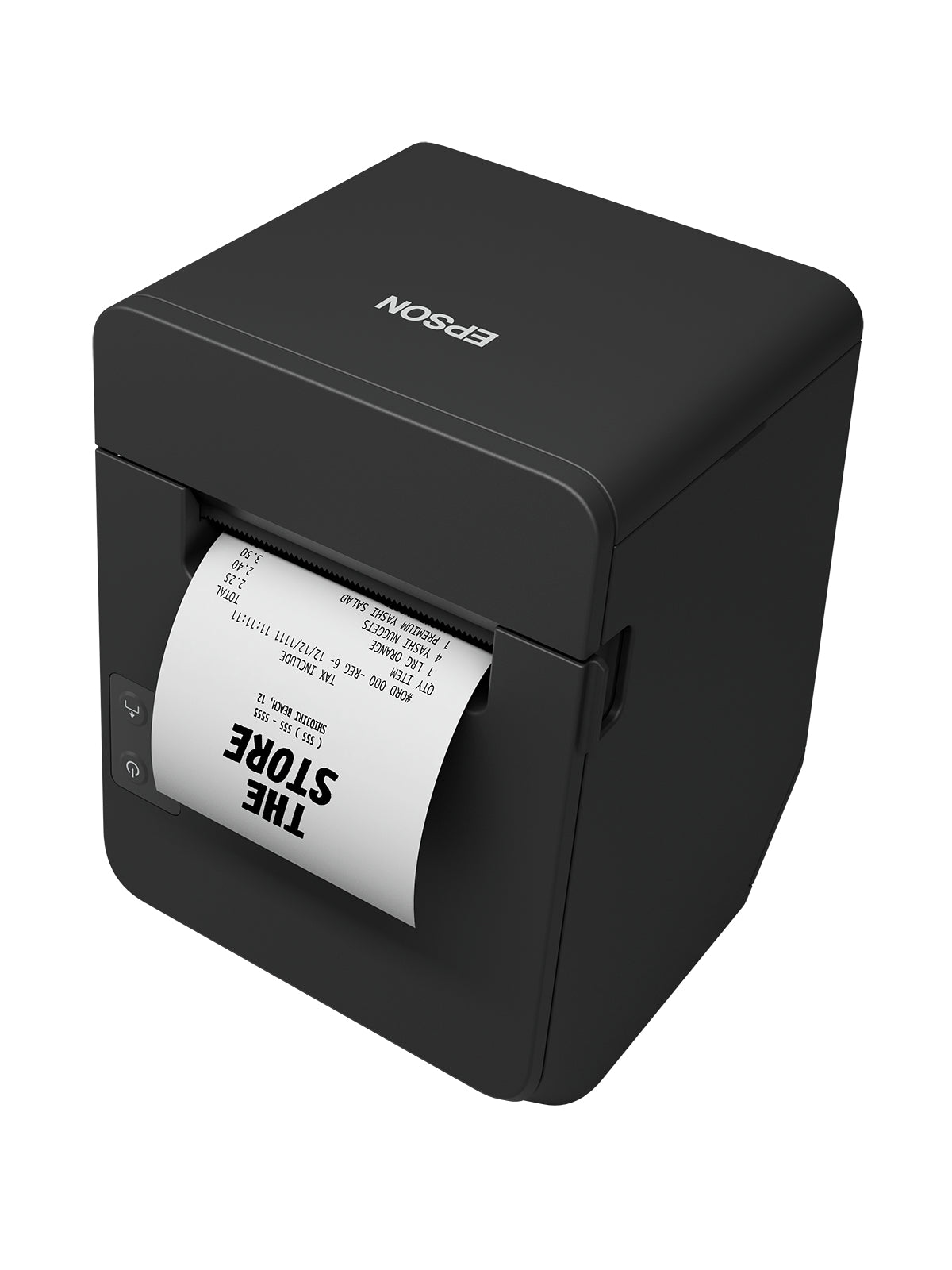

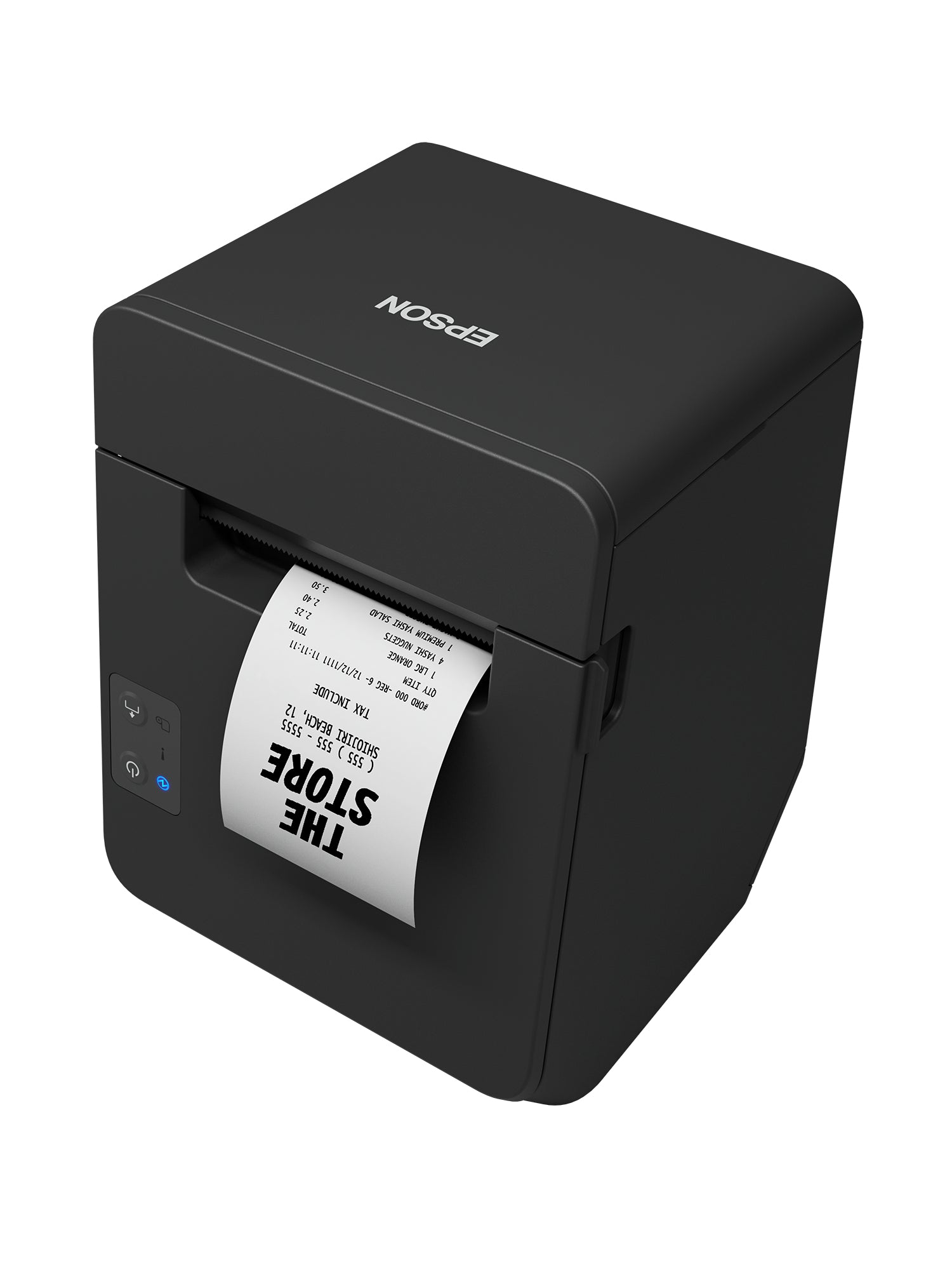

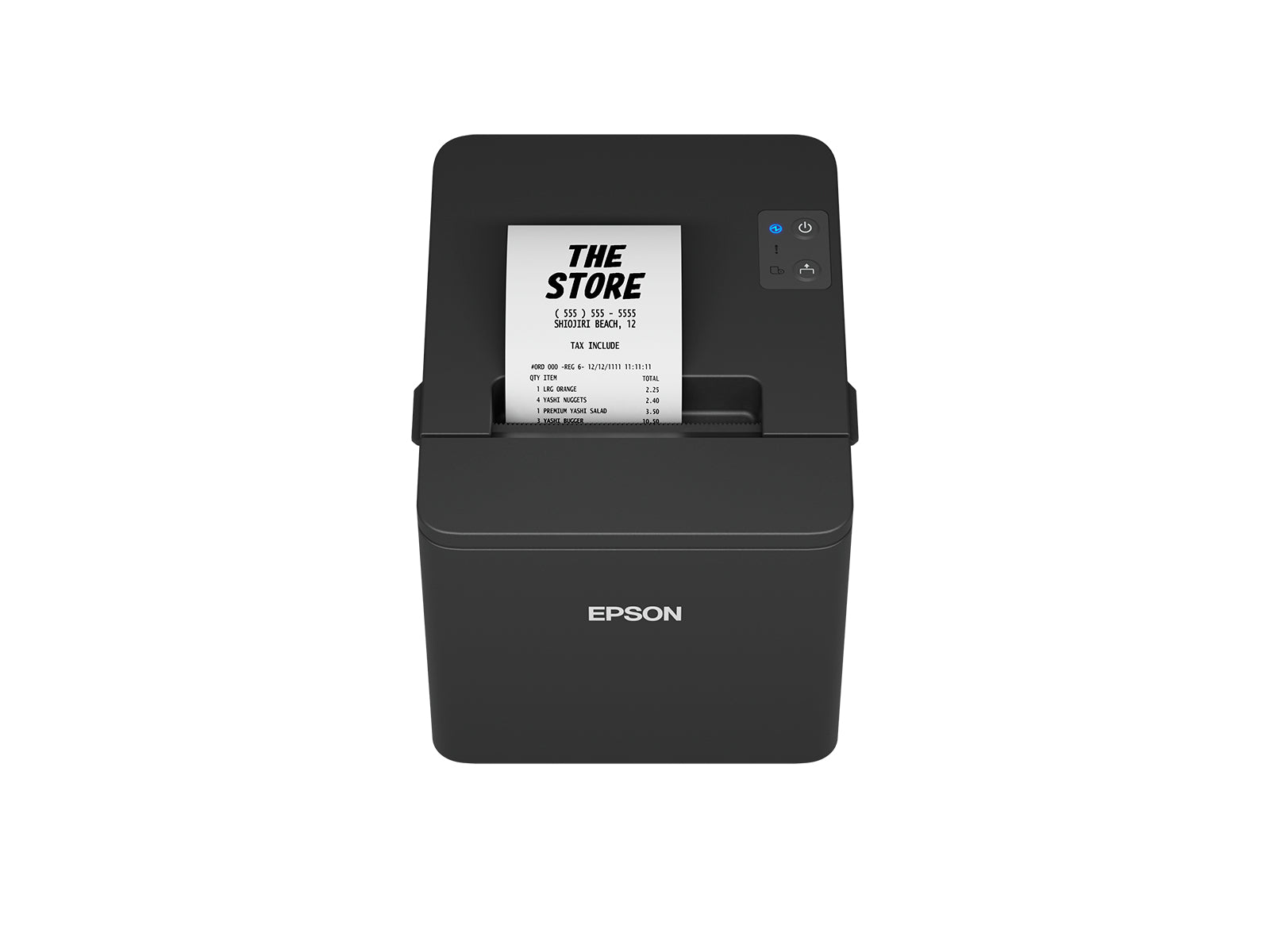

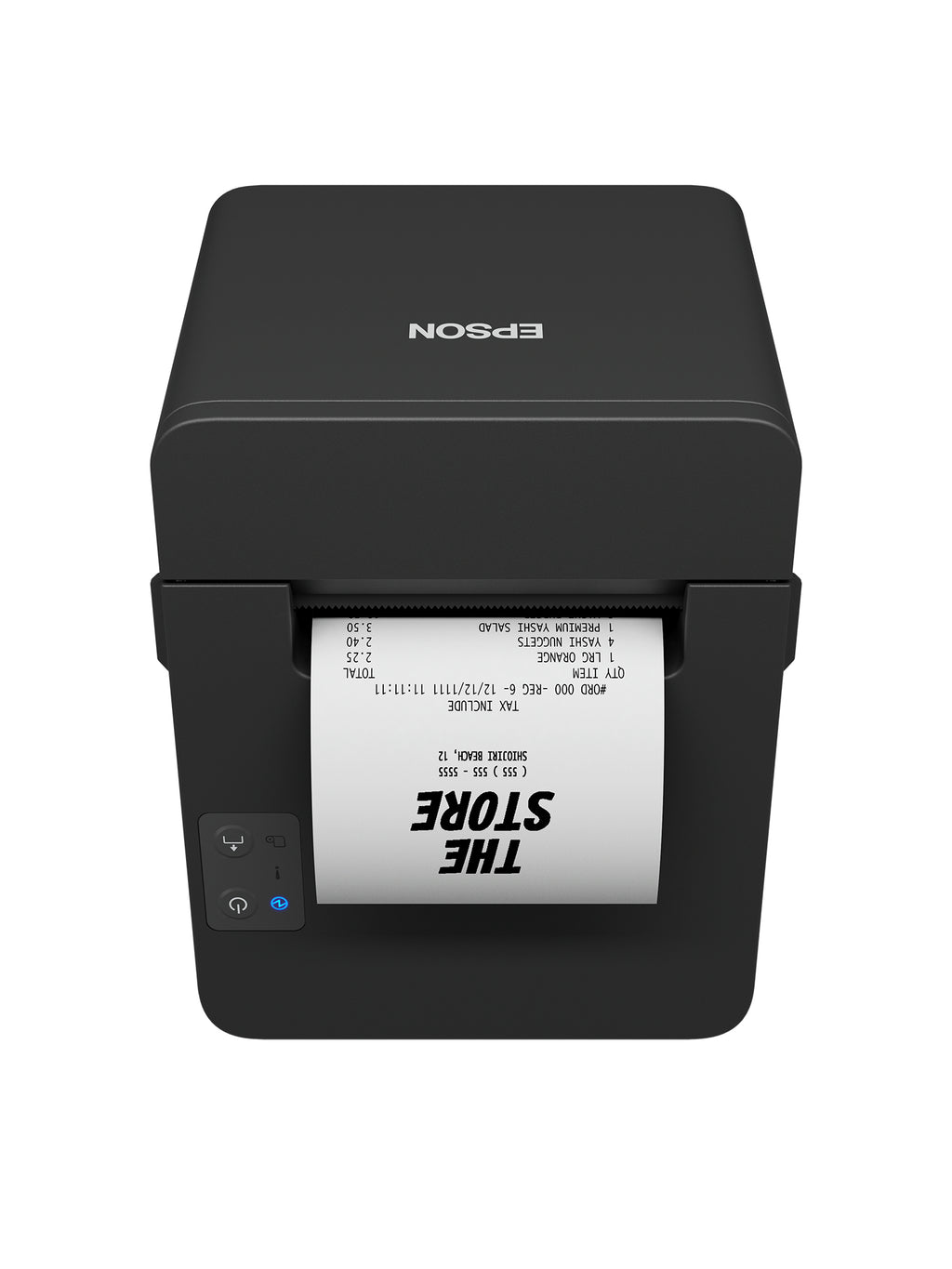

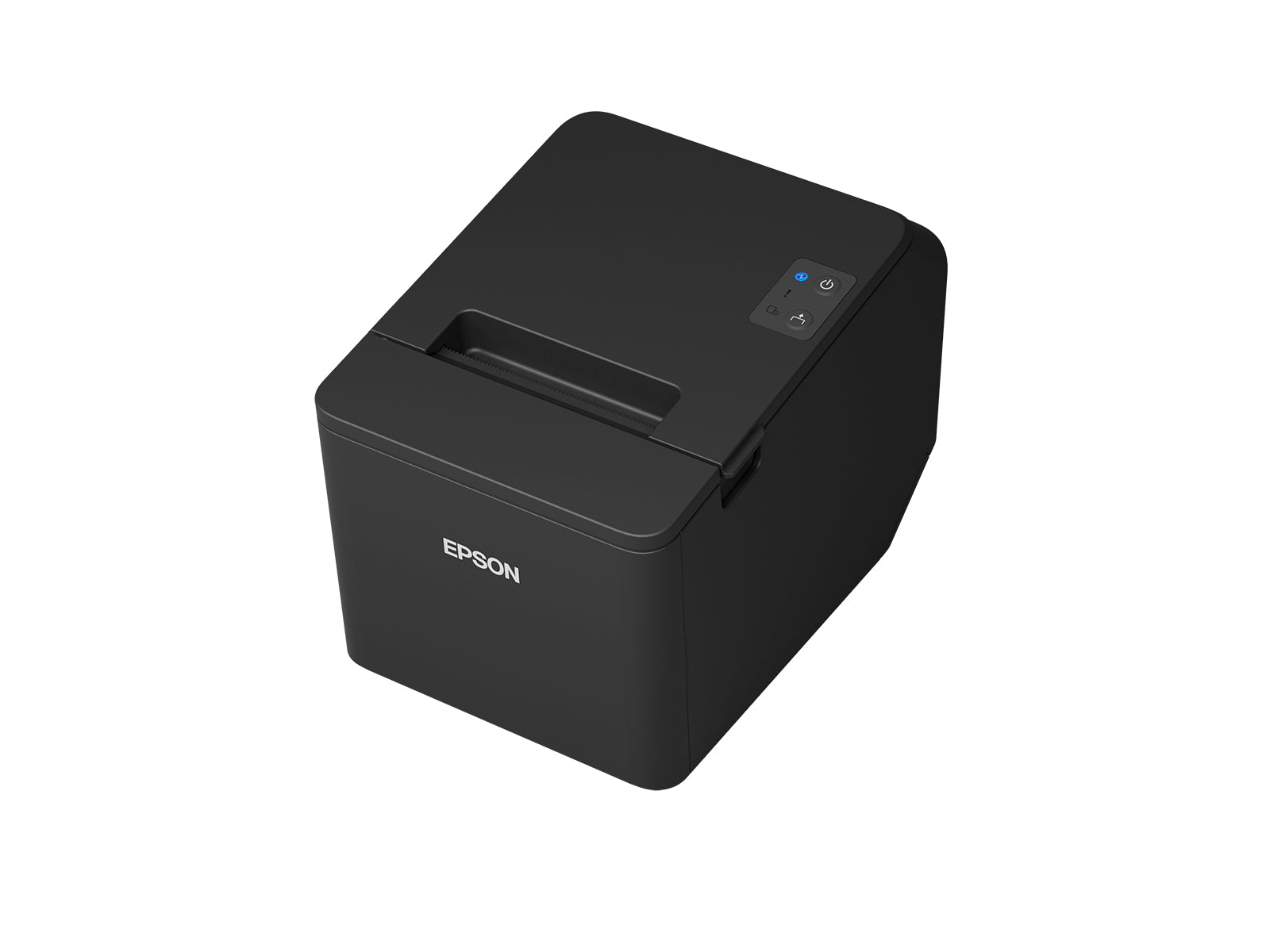

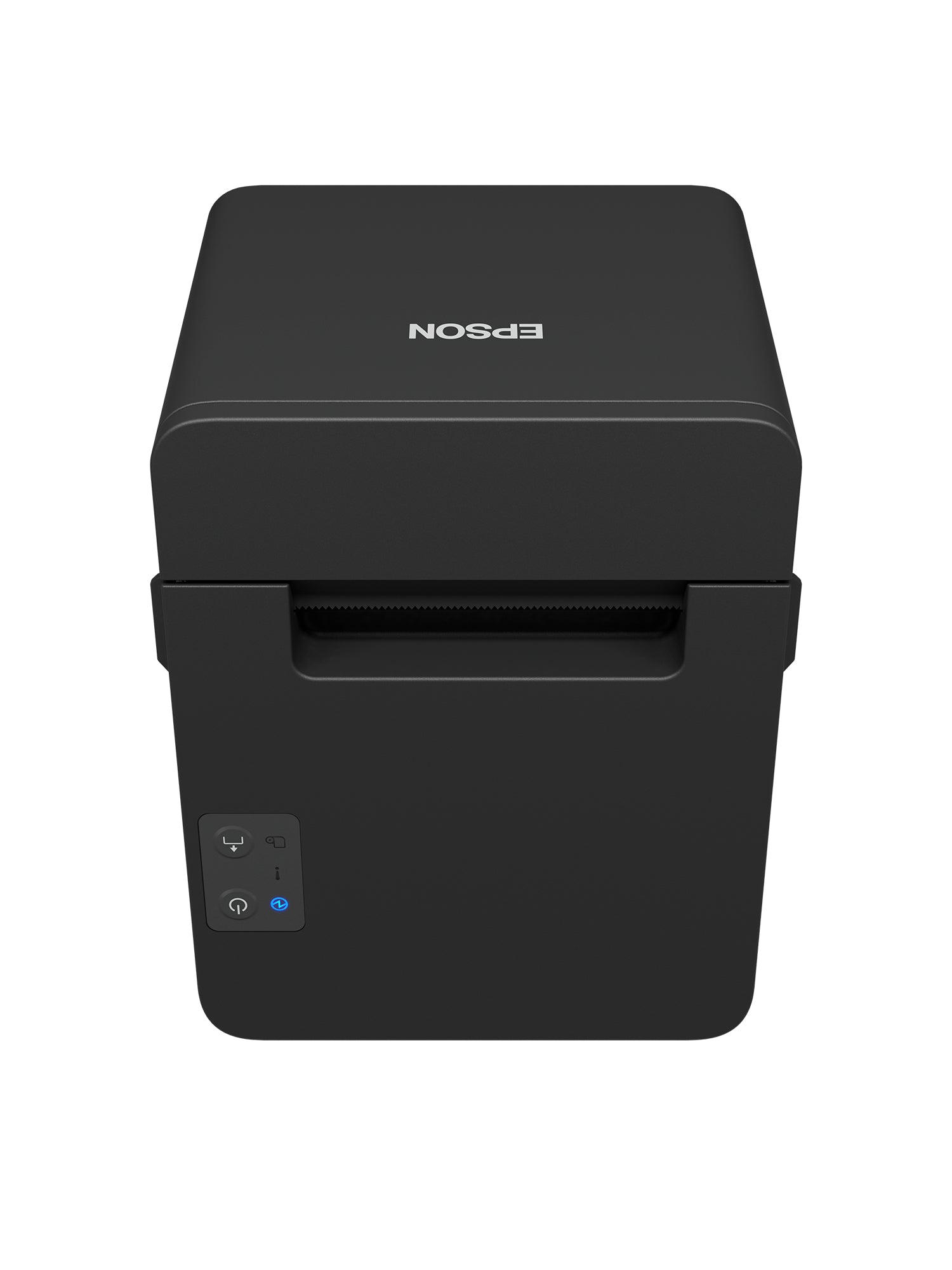

Engineered for a balance of speed, reliability and affordability in a compact package, the TM-T20IV thermal receipt printer is purpose-built for taking on the demanding POS needs of today’s businesses. This versatile printer supports traditional PC-POS and mPOS systems and features two built-in connectivity options, allowing for exceptional flexibility and productivity: (1) USB with serial connectivity and (2) USB with serial and Ethernet connectivity. The TM-T20IV is built for productivity—with print speeds up to 250 mm/sec, an intuitive status LED and paper savings of up to 30 percent1, it’s the ideal solution for keeping your POS workflow moving quickly and efficiently. The printer is backed by a 2-year limited warranty, with extended service plan options available up to a total of 5 years of continuous coverage2, giving you Epson’s world-class service and support for your peace of mind.
Printing
- Print technology: Thermal
- Type: POS printer
- Colour: No
- Maximum resolution: 203 x 203 DPI
- Print speed: 250 mm/sec
- Character density: 22.6 cpi
- Character size: 1.25 x 3 mm
- Printing characters: Graphic

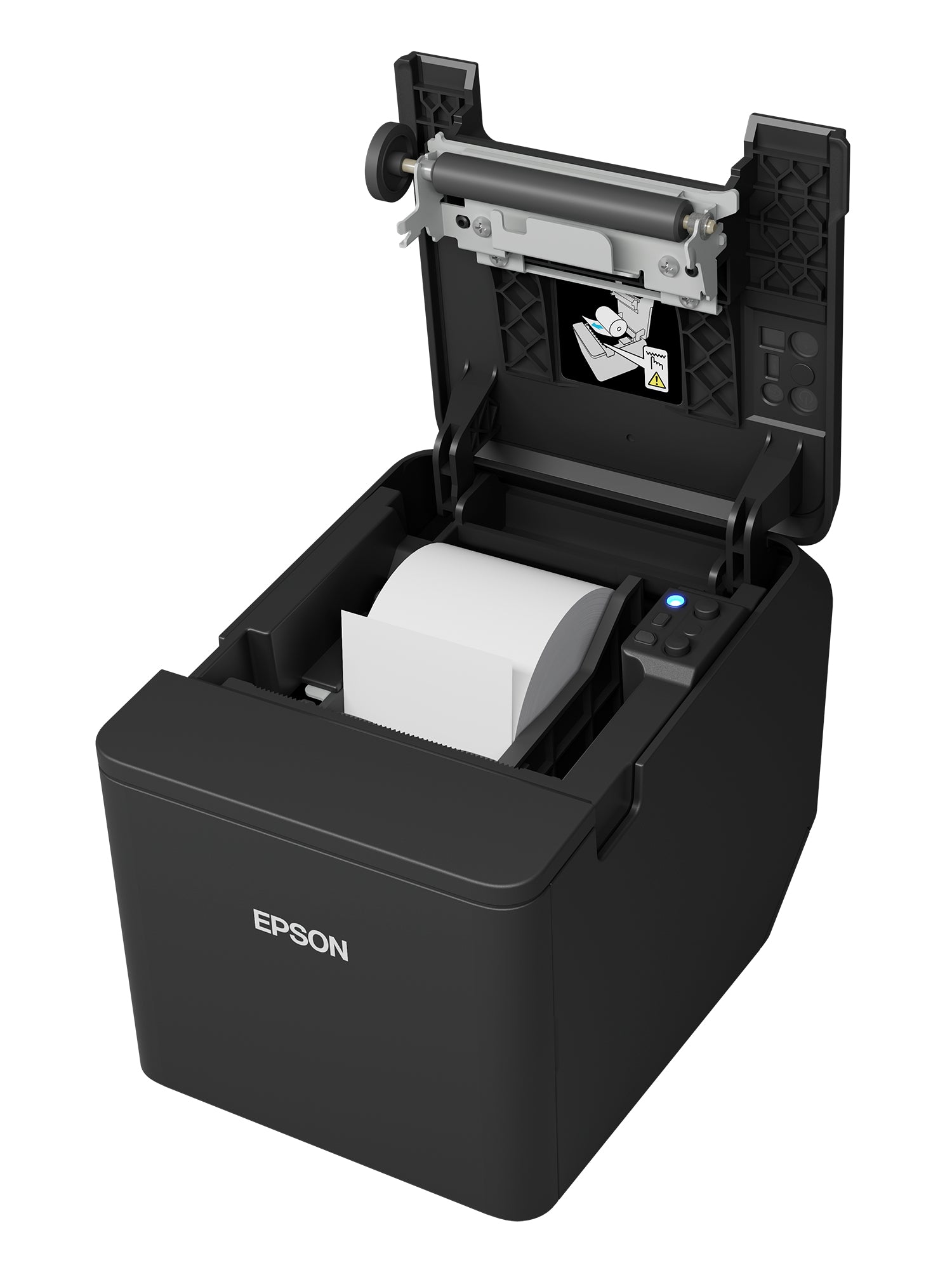

Paper handling
- Supported paper width: 80 mm
- Maximum roll diameter: 83 mm
- Printing media thickness: 53 - 75 µm

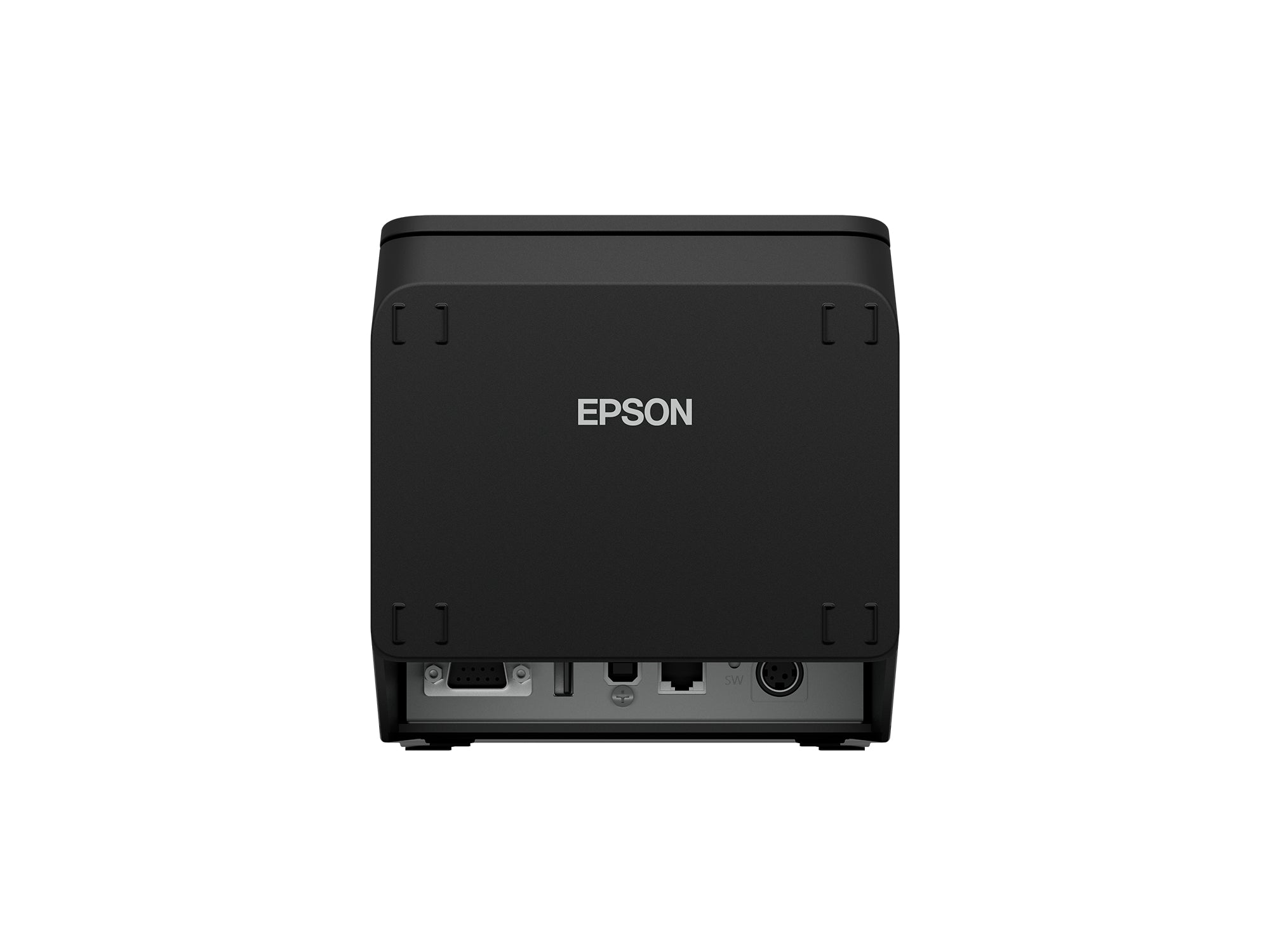

Ports & interfaces
- Connectivity technology: Wired
- USB port: Yes
- USB 2.0 ports quantity: 1
- USB connector: USB Type-B
- Serial interface: Yes
- Serial interface type: RS-232
- Optional connectivity: Ethernet,Wireless LAN
Network
- Ethernet LAN: No
- Wi-Fi: No
Features
- Built-in barcodes: CODABAR (NW-7),Code 39,Code 93,EAN13,EAN8,GS1 DataBar,GS1-128,ITF,UPC-A,UPC-E
- Mean time between failures (MTBF): 360000 h
- Cutter: Yes
- Autocutter durability: 2 million cuts

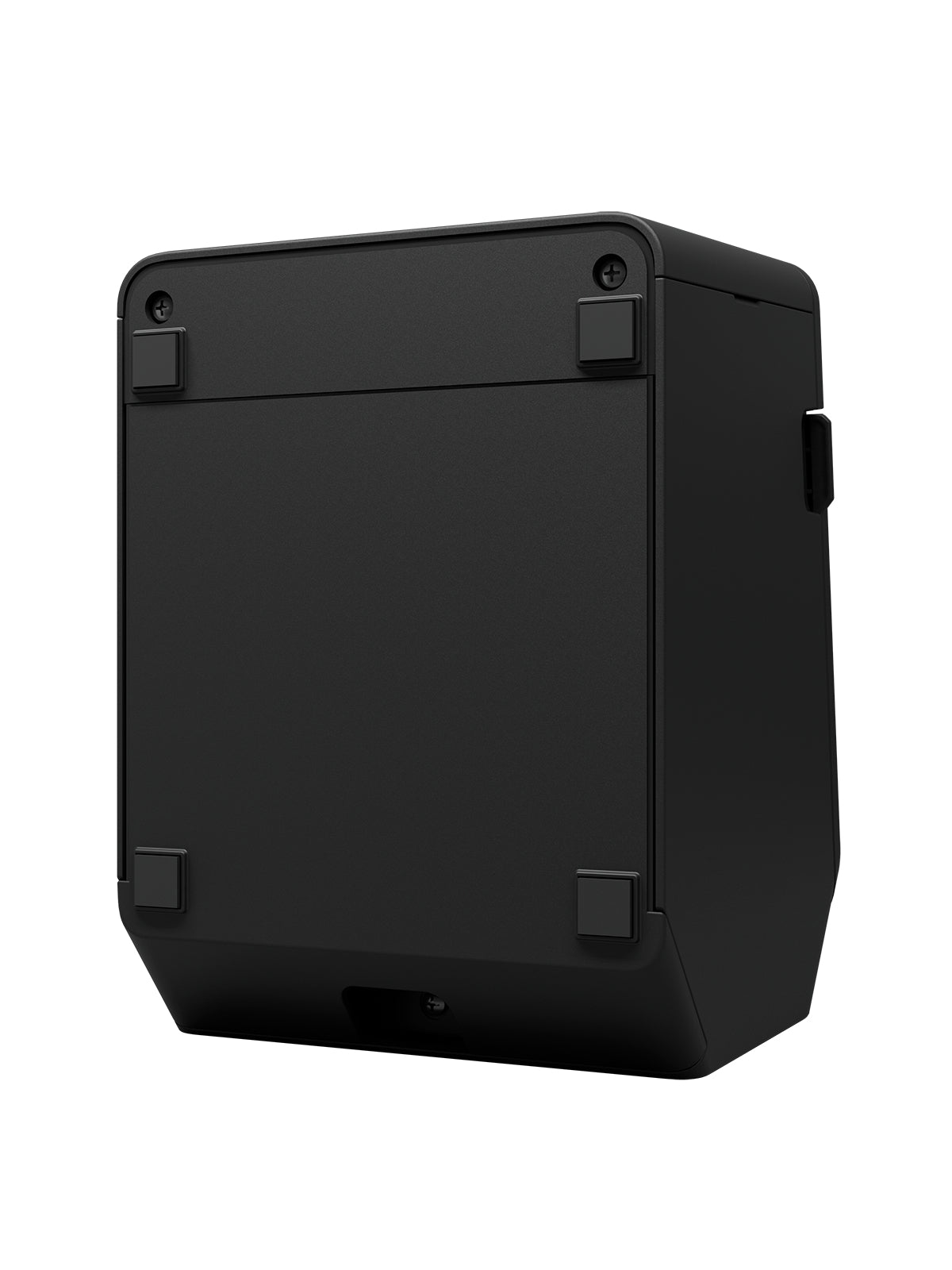

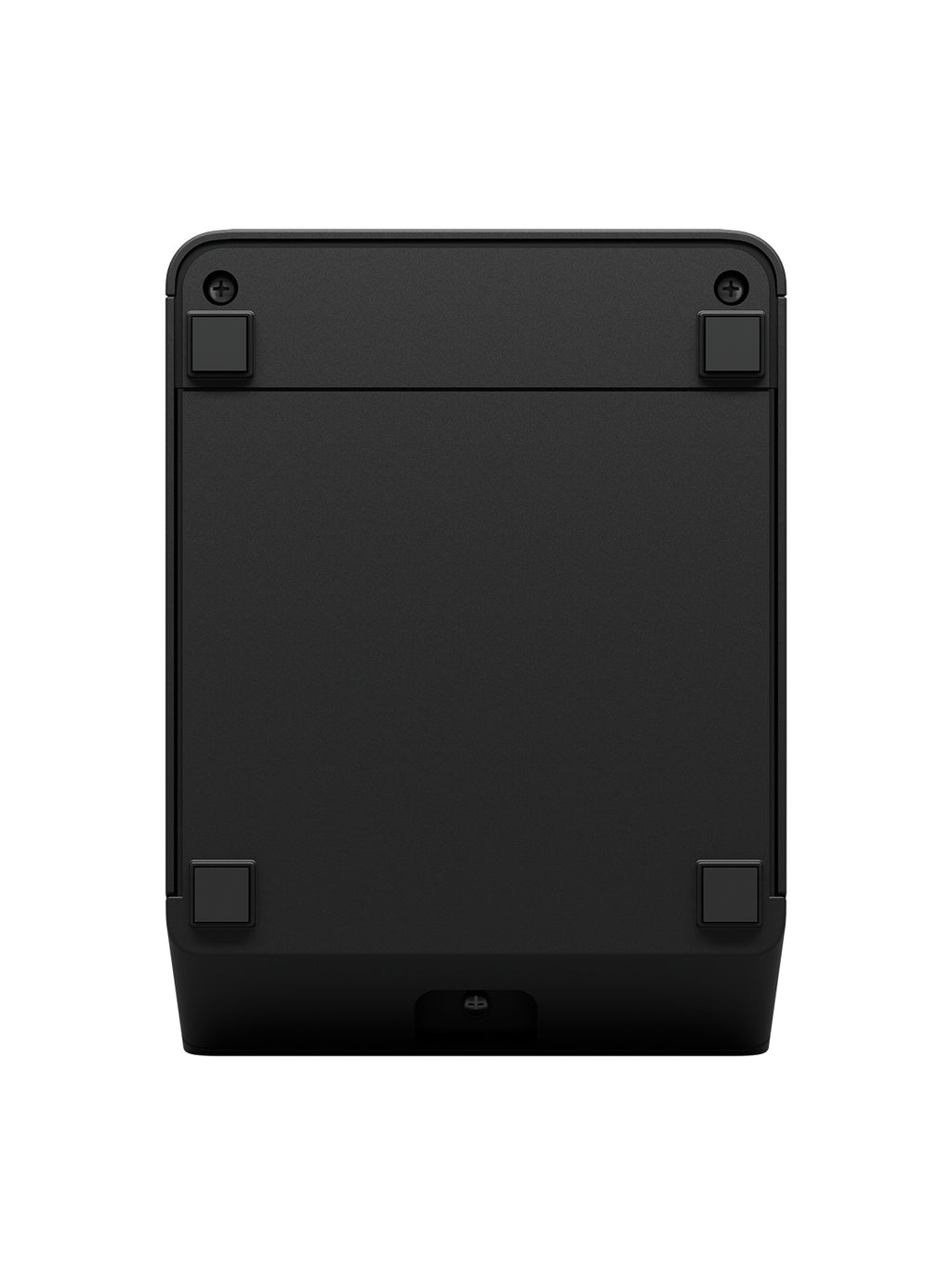

- Wall mountable: Yes
- Receive buffer: 4 KB
- Print head life: 150 km
- Built-in sensors details: Paper End Sensor, Paper Near End Sensor
Design
- Product colour: Black
Power
- Power source type: DC
- Power consumption (printing): 27.2 W
- AC input voltage: 100 - 230 V
- AC input frequency: 50/60 Hz
- DC output voltage: 24 V
- Power consumption (standby): 0.96 W
Operational conditions
- Operating temperature (T-T): 5 - 45 °C
- Storage temperature (T-T): -10 - 50 °C
- Storage relative humidity (H-H): 10 - 90 %
- Operating relative humidity (H-H): 10 - 90 %
System requirements
- Windows operating systems supported: Yes
- Mobile operating systems supported: Android,iOS
Weight & dimensions
- Width: 140 mm
- Depth: 199 mm
- Height: 146 mm
- Weight: 1700 g
Packaging data
- Cables included: AC
Packaging content
- AC adapter included: Yes
Technical details
- Safety warning: UL62368-1, CAN/CSA C22.2 No.62368-1
- Compliance certificates: Federal Communications Commission (FCC),ICES
Other features
- Mean cycles between failures (MCBF): 60000000
