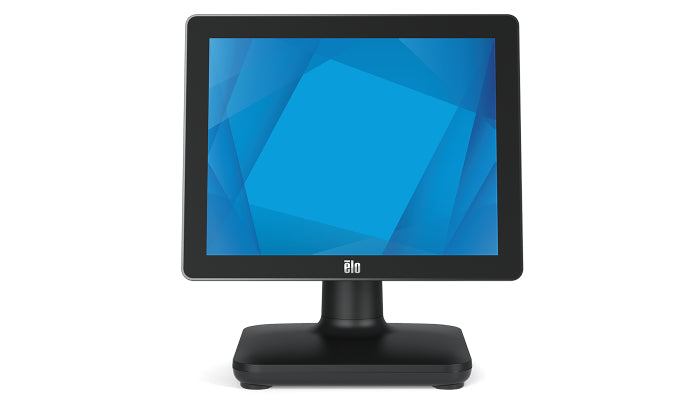

EloPOS System
Modern. Modular. Made for Retail.
The versatile EloPOS System combines modern aesthetics, modular flexibility and commercial-grade reliability. Purpose-built for point of sale, EloPOS offers a 17-inch touchscreen display, choice of Intel’s 8th generation processors and an integrated expansion hub to connect the peripherals you need - whether a customer facing display, payment reader, printer, cash drawer, barcode scanner or scale. From traditional POS to self-service applications, EloPOS delivers the durability needed to survive continuous public use and is backed by Elo’s standard 3-year warranty.
Interactive Points of Sale
The EloPOS System is designed to offer flexibility across environments. Whether you need a fixed-lane point of sale system or a self-order solution, EloPOS can help ensure that every touch delivers the experience your employees need and your customers expect.
Connections. Connections. Connections.
The expansion hub allows you to connect all of the POS peripheral support you need. From cash drawers and printers to barcode scanners and payment devices — there is connectivity to cover it all.
Add a Customer-Facing Display with Ease
The EloPOS System includes USB-C connectivity, allowing you to easily connect a 1302L customer-facing display - providing touch, data and power with just one cable. By reducing the number of cables required for setup from 3 to 1, installation and servicing is a breeze.
Elo Edge Connect Lets You do More!
Built with versatility in mind, Elo Edge Connect offers a wide assortment of peripheral options. Whether for point of sale, endless aisle or self-order applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!
Windows or Linux. You Choose.
EloPOS utilizes the reliability-tested performance and security of Intel 8th Generation processors, integrated Trusted Platform Modules, Intel vPro™ and the Windows 10 operating system. For added flexibility, the EloPOS offers models with no OS - all pretested with Linux SuSE, Ubuntu and Red Hat operating systems, allowing businesses to get the solution best-suited for them.
Retail-Hardened
Rigorously tested and backed by a three-year warranty, the EloPOS System delivers superior quality and reliability. The splash-proof housing and rugged retail-hardened design can easily withstand the adverse conditions associated with most commercial environments. Additional one and two-year warranty extensions are available as well as EloCare options - making EloPOS the ideal product for point of sale applications.
Display
- Display diagonal: 17 "
- Display resolution: 1280 x 1024 pixels
- Touchscreen: Yes
- Display type: LED
- Response time: 5 ms
- Effective viewing area: 337.9 x 270.3 mm
- Display number of colours: 16.78 million colours
- Contrast ratio (typical): 1000
- Touchscreen technology: Projected capacitive system
- Aspect ratio: 5
- Viewing angle, vertical: 160 °
- Viewing angle, horizontal: 170 °
Processor
- Processor manufacturer: Intel
- Processor family: Intel® Core™ i3
- Processor generation: 8th gen Intel® Core™ i3
- Processor model: i3-8100T
- Processor cores: 4
- Processor threads: 4
- Processor frequency: 3.1 GHz
- Processor cache: 6 MB
- System bus rate: 8 GT/s
- Motherboard chipset: Intel® H310
Memory
- Internal memory: 4 GB
- Internal memory type: DDR4-SDRAM
- Maximum internal memory: 32 GB
- Number of memory slots: 2
- Memory slots type: SO-DIMM
- Memory clock speed: 2400 MHz
Storage
- Total storage capacity: 128 GB
- Storage media: SSD
- Number of storage drives supported: 1
- SSD interface: Serial ATA
- SSD capacity: 128 GB
- SSD form factor: M.2
Graphics
- Graphics card manufacturer: Intel
- Graphics card: UHD Graphics 630
Features
- Certification: UL/cUL, FCC, TUV, CE, CB, Mexico NOM, C-Tick/RCM, VCCI, Argentina S-Mark, CCC
Multimedia
- Built-in speaker(s): Yes
- Number of speakers: 2
Network
- Ethernet LAN: Yes
- Ethernet LAN data rates: 1000 Mbit/s
- Bluetooth: Yes
- Wi-Fi: Yes
- Wi-Fi standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
- Serial ports quantity: 2
Design
- Chassis type: All-in-one
- Product colour: Black
Performance
- Trusted Platform Module (TPM): Yes
- Trusted Platform Module (TPM) version: 2.0
Software
- Operating system installed: No
Power
- AC input voltage: 100-240 V
- AC input frequency: 50-60 Hz
- Power consumption (typical): 63 W
- Power supply: 180 W
Operational conditions
- Storage relative humidity (H-H): 5 - 95 %
- Operating temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 35 %
- Relative humidity: 20 - 80 %
Ergonomics
- Wall mountable: Yes
- VESA mounting: Yes
- Panel mounting interface: 75 x 75 mm
- Mean time between failures (MTBF): 50000 h
Weight & dimensions
- Width: 393.5 mm
- Depth: 325.9 mm
- Height: 83.3 mm
- Width (with stand): 393.5 mm
- Depth (with stand): 325.9 mm
- Height (with stand): 221.3 mm
- Weight: 4800 g
- Weight (with stand): 6700 g
Packaging data
- Package width: 476 mm
- Package depth: 197 mm
- Package height: 400 mm
- Package weight: 6800 g
Security
- Cable lock slot type: Kensington
- Cable lock slot: Yes
