The bezel just got smaller.

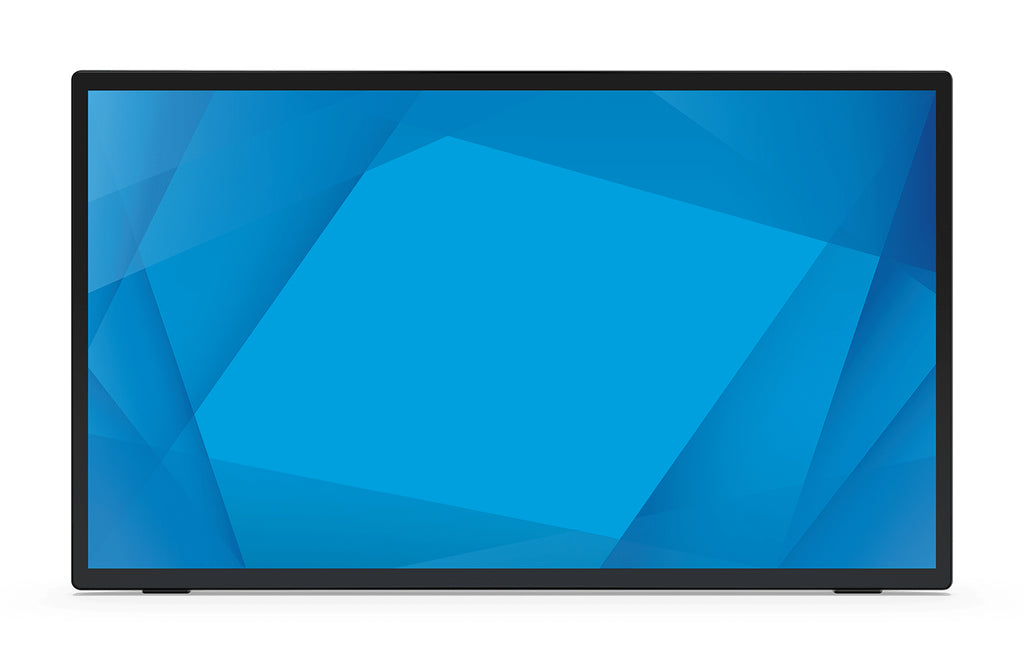

The 2770L 27” touchscreen offers up to a 70% reduction in the bezel compared to similar models.
Built-in speakers and integrated IO.

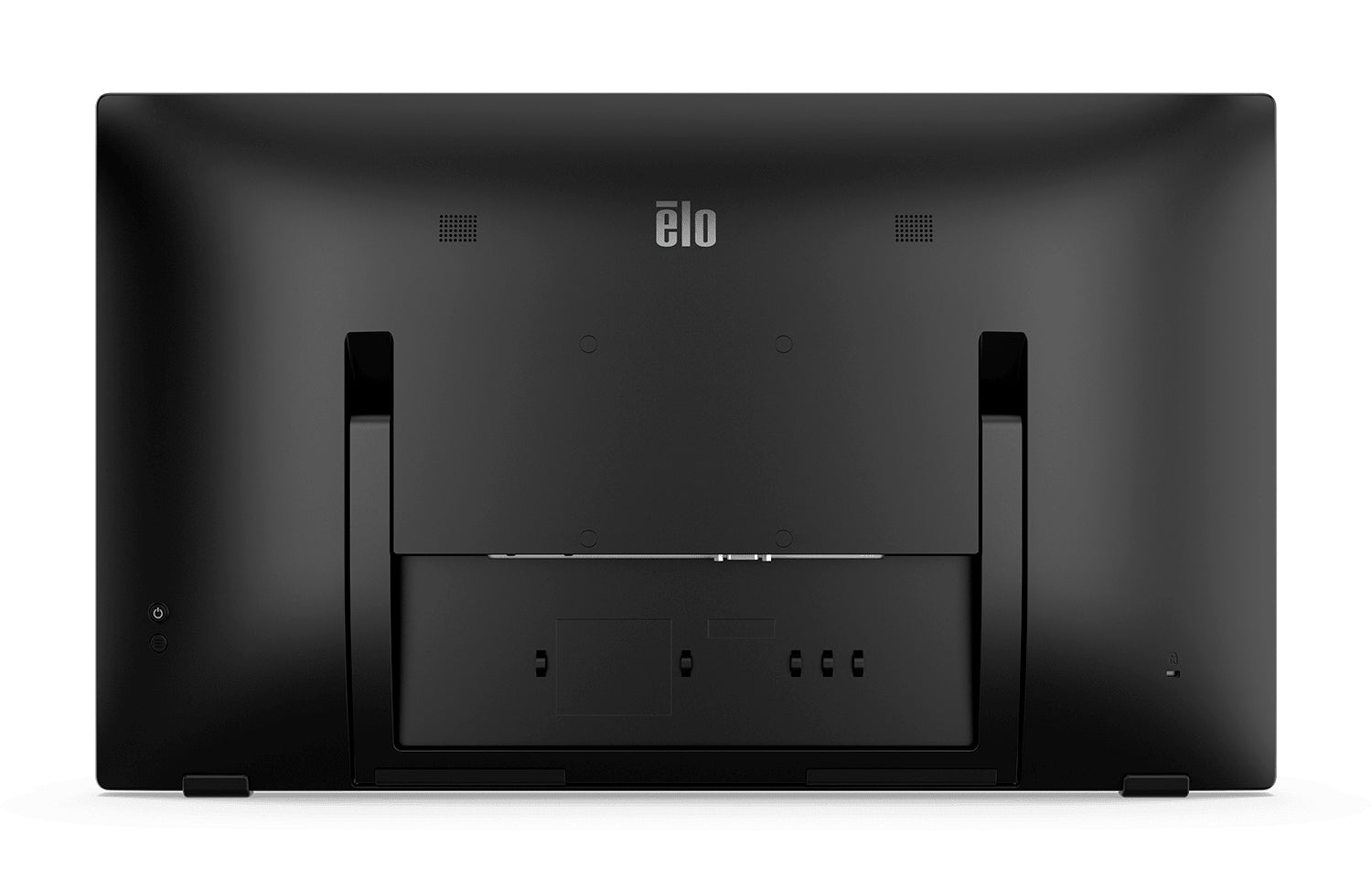

Place it on a desktop, mount it on a wall or configure the 2770L to fit your space with VESA-compatibility. Built-in speakers and integrated IO.
Durable, energy efficient touchscreen.
Scratch-resistant glass surface. IK07 impact resistant. ES8.0 certified for greater energy efficiency.
Navigate the OSD directly on the touchscreen.
We have made it easier to manage your On-Screen Display (OSD) controls – Now you can use the touchscreen or the controls you are used to on the rear side of the monitor.
Display
- Display diagonal: 27 "
- Display resolution: 1920 x 1080 pixels
- Native aspect ratio: 16
- Display technology: LED
- Touchscreen: Yes
- HD type: Full HD
- Panel type: TFT
- Touchscreen technology: Projected capacitive system
- Touch technology: Multi-touch
- Number of simultaneous touchpoints: 10
- Display brightness (peak): 300 cd/m²
- Display brightness (typical): 270 cd/m²
- Response time: 14 ms
- Anti-glare screen: Yes
- Screen shape: Flat
- Supported graphics resolutions: 640 x 400,640 x 480 (VGA),720 x 400,800 x 500,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 800,1366 x 768,1440 x 900 (WXGA+),1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080)
- Contrast ratio (typical): 1000
- Maximum refresh rate: 60 Hz
- Viewing angle, horizontal: 178 °
- Viewing angle, vertical: 178 °
- Display number of colours: 16.7 million colours
- Digital horizontal frequency: 30 - 82 kHz
- Digital vertical frequency: 50 - 75 Hz
Performance
- NVIDIA G-SYNC: No
- AMD FreeSync: No
Multimedia
- Built-in speaker(s): Yes
- Built-in camera: No
- Number of speakers: 2
- RMS rated power: 4 W
Design
- Market positioning: Business
- Product colour: Black
Ports & interfaces
- Built-in USB hub: Yes
- USB hub version: 2.0
- USB upstream port type: USB Type-A,USB Type-B
- Number of USB Type-B upstream ports quantity: 1
- USB Type-A downstream ports quantity: 2
- USB Touch port: Yes
- USB Touch ports quantity: 1
- VGA (D-Sub) ports quantity: 1
- HDMI: Yes
- HDMI ports quantity: 1
- DisplayPorts quantity: 1
Ergonomics
- VESA mounting: Yes
- Panel mounting interface: 100 x 100 mm
- Cable lock slot: No
- Height adjustment: No
- On Screen Display (OSD): Yes
- On Screen Display (OSD) languages: CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN
Power
- Energy efficiency class (SDR): E
- Energy consumption (SDR) per 1000 hours: 18 kWh
- Power consumption (typical): 19 W
- Power consumption (standby): 0.5 W
- Power consumption (off): 0.16 W
- Power consumption (PowerSave): 16.5 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Power supply type: External
- Energy efficiency scale: A to G
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 20 - 80 %
- Storage relative humidity (H-H): 10 - 95 %
Weight & dimensions
- Width (without stand): 626.2 mm
- Depth (without stand): 372.8 mm
- Height (without stand): 43.8 mm
- Weight (without stand): 6300 g
Packaging data
- Package width: 703 mm
- Package depth: 136 mm
- Package height: 489 mm
- Package weight: 9450 g
