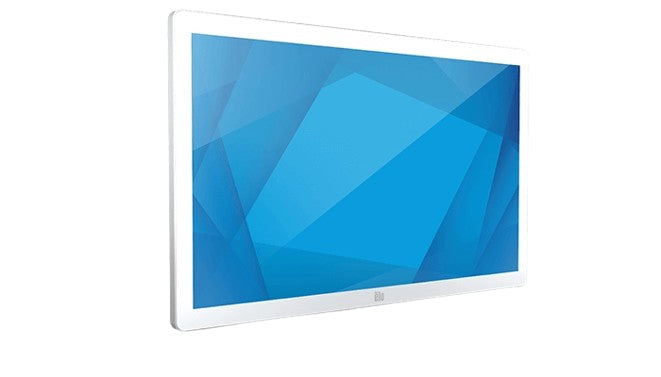

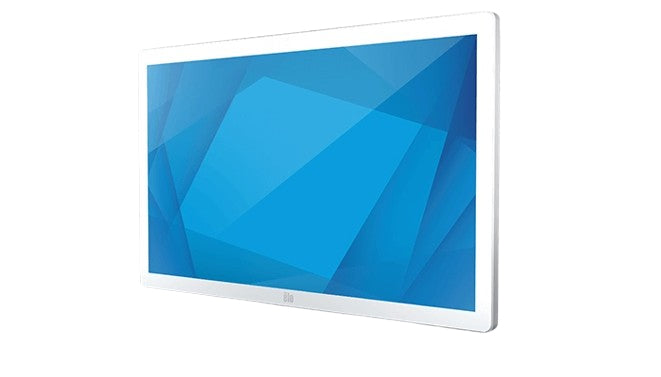

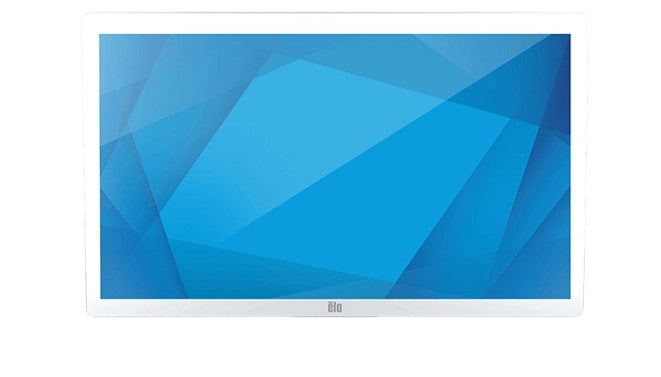

DICOM Medical Grade Touchscreen Monitors
The 03-Series Medical Grade Touchscreen Monitors merge best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and sleek design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices.
Easy to Clean
Increase safety for healthcare providers and patients with the easy-to-clean touchscreen displays.
DICOM 14 - Designed for Consistent Image Review
Get the image accuracy you need during clinical review with the 03-Series medical grade touch screen monitors. To help ensure healthcare providers and patients can view clear, accurate and consistent medical images, the displays are pre-calibrated from the factory per AAPM secondary display guidelines in compliance with the DICOM 14 GSDF curve.
Enhancing Clinical Workflow with Touch
From analyzing X-rays and scans to reviewing vitals, lab results and medical history, adding touchscreens into the clinical workflow creates efficiencies while improving the patient and provider experience.
Enhancing Clinical Workflow with Touch
From analyzing X-rays and scans to reviewing vitals, lab results and medical history, adding touchscreens into the clinical workflow creates efficiencies while improving the patient and provider experience.
Purpose-built for Healthcare
The 03-Series medical grade touch screen monitors offer flexibility for installation in a variety of healthcare environments to support increased communication among patients and healthcare providers.
Medical Device Ready
With a full line of touch technologies and display solutions, Elo can help develop and customize products for almost any medical device including ventilator monitors, anesthesia monitors, patient monitors and medication dispensers. From operating rooms to patient rooms, laboratories and anywhere healthcare is provided, Elo products are well-suited for medical applications where consistent and long-lasting quality and touch performance are critical.
Configurability Made Easy
Flexible Mounting
Every monitor is designed with VESA hole patterns to simplify mounting onto a variety of stands, arms, walls or medical carts.
Privacy Matters
Optional privacy filters offer an additional safeguard when reviewing private health information or sensitive administrative data.
Ergonomic
Optional handles can be added to easily move or rotate the display to a comfortable orientation.
Display
- Display diagonal: 27 "
- Display resolution: 1920 x 1080 pixels
- Native aspect ratio: 16
- Display technology: LCD
- Touchscreen: Yes
- HD type: Full HD
- Panel type: TFT
- Touchscreen technology: Projected capacitive system
- Number of simultaneous touchpoints: 10
- Display brightness: 300 cd/m²
- Response time: 14 ms
- Anti-glare screen: Yes
- Screen shape: Flat
- Supported graphics resolutions: 640 x 400,640 x 480 (VGA),720 x 400,800 x 500,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 800 (WXGA),1366 x 768,1440 x 900 (WXGA+),1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080)
- Contrast ratio (typical): 1000
- Maximum refresh rate: 70 Hz
- Viewing angle, horizontal: 178 °
- Viewing angle, vertical: 178 °
- Display number of colours: 16.7 million colours
- Horizontal scan range: 30 - 82 kHz
- Vertical scan range: 50 - 75 Hz
- Viewable size, horizontal: 597.88 mm
- Viewable size, vertical: 336.31 mm
- Display diagonal (metric): 68.6 cm
Multimedia
- Built-in speaker(s): Yes
- Built-in camera: No
- RMS rated power: 2 W
Design
- Market positioning: Medical
- Product colour: White
- International Protection (IP) code: IP54
- Certification: UL
Ports & interfaces
- USB version: 2.0
- VGA (D-Sub) ports quantity: 1
- HDMI: Yes
- HDMI ports quantity: 1
- Headphone connectivity: 3.5 mm
- DC-in jack: Yes
Ergonomics
- VESA mounting: Yes
- Wall mountable: Yes
- On Screen Display (OSD): Yes
- On Screen Display (OSD) languages: CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN
- Number of OSD languages: 10
- LED indicators: Power
Power
- Energy efficiency class (SDR): E
- Energy consumption (SDR) per 1000 hours: 21 kWh
- Power consumption (typical): 17.37 W
- Power consumption (standby): 1 W
- Power consumption (max): 22.41 W
- Power consumption (off): 0.24 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50 / 60 Hz
- Energy efficiency scale: A to G
- European Product Registry for Energy Labelling (EPREL) code: 361244
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 20 - 80 %
- Storage relative humidity (H-H): 10 - 95 %
Packaging content
- Cables included: HDMI,USB,VGA
Weight & dimensions
- Width (without stand): 394.1 mm
- Depth (without stand): 44.9 mm
- Height (without stand): 647.6 mm
- Weight (without stand): 7130 g
Packaging data
- Package width: 520 mm
- Package depth: 187 mm
- Package height: 770 mm
- Package weight: 10410 g
Sustainability
- Sustainability compliance: Yes
Technical details
- Compliance certificates: BIS,BSMI,CB,CE,China Compulsory Certification (CCC),China RoHS,EAC,Federal Communications Commission (FCC),KCC,RCM,REACH,RoHS,UKCA,VCCI,WEEE,cUL
Other features
- USB 2.0 ports quantity: 1
- Power consumption (sleep): 1.006 W
- Display viewable area (HxV): 597.88 x 336.31 mm
- USB connector type: Micro-USB,USB Type-A,USB Type-B
- Placement supported: Indoor
- USB ports quantity: 6
- Active display area (W x H): 597.88 x 336.31 mm
- Mean time between failures (MTBF): 50000 h
