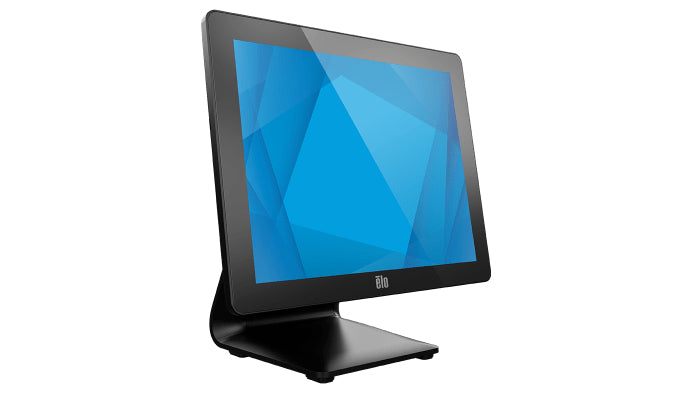

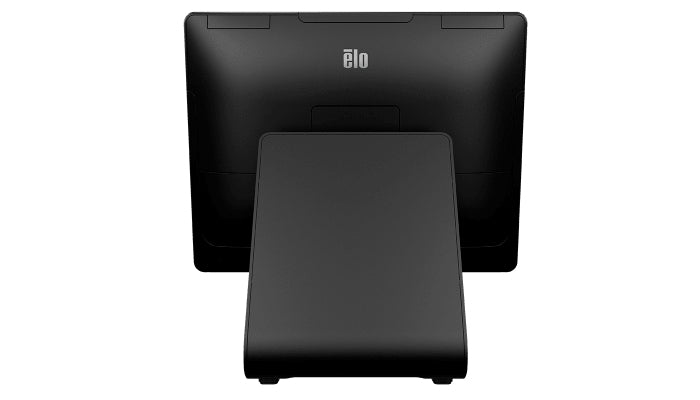

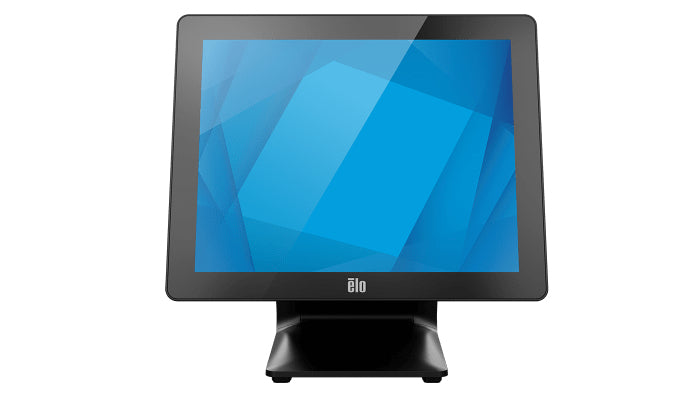

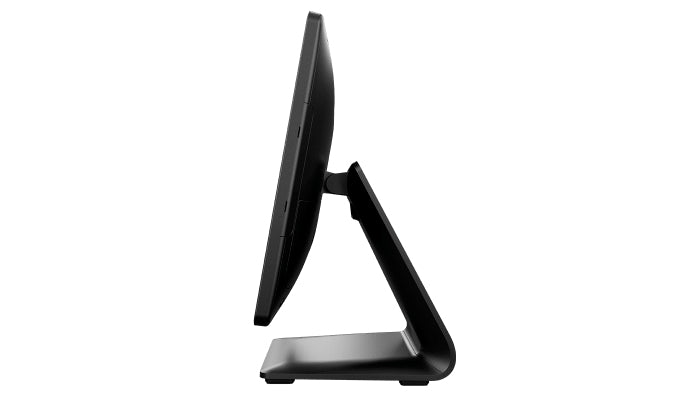

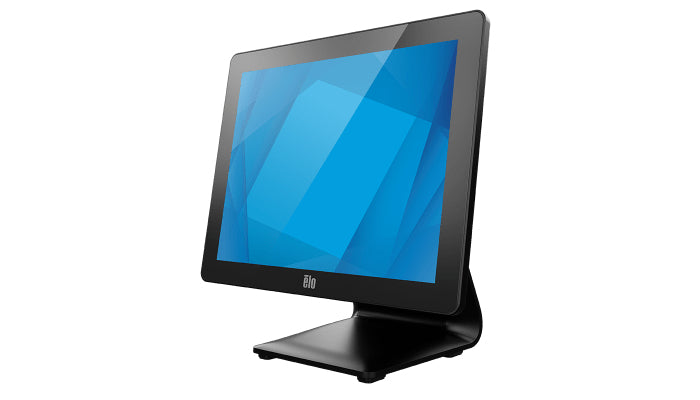

Completely redesigned I‑Series 3 with Intel.
Brilliant and beautiful, interactive platform.
Modular design. Endless versatility.
Available in sizes ranging from 15 to 24 inches, including with and without stand options, you can easily configure the I‑Series to fit the needs of your business - from signage and point-of-sale to self-service, automation controls and more.
Universal VESA Mount
Conveniently mount the I‑Series with the built‑in VESA mount.
Expand with Edge Connect
Seamlessly attach a variety of peripherals to the edge of the touchscreen.
Reliable, security and performance.
Built with the reliability-tested performance and security of Intel 12th Generation processors, integrated Trusted Platform Modules, Intel vPro™ and the Windows 10 operating system, the I‑Series 3 delivers the dependability businesses need.
Enhanced connectivity for all your accessories.
- USB-C full featured
- Gigabit LAN
- Powered RJ50 Serial
- 24V Powered USB
- 2x 12V Powered USB
- 12V/24V Cash Drawer
- 4x USB 3.0
- 4x Micro-USB Edge Connect
- WiFi & Bluetooth 5.2
Support for Linux.
For added flexibility, the I‑Series 3 offers no OS models, all pretested with Linux SuSE, Ubuntu and Red Hat operating systems.
Bridge the gap between Windows and Android.
Transitioning to Android in the future? Elo Bridge is the perfect solution. Simply choose the Elo Windows device that fits your needs today, and when you are ready to transition to Android, you can use Elo Bridge to migrate your fleet of devices.
Get peace of mind with EloCare.SM
- Advance Unit Replacement
- Extended Warranty
- Professional Services
Display
- Display diagonal: 15.6 "
- Display resolution: 1024 x 768 pixels
- Touchscreen: Yes
- Display type: TFT
- Touchscreen technology: Projected capacitive system
- Viewing angle, horizontal: 160 °
- Aspect ratio: 4
- Display brightness: 340 cd/m²
- Display number of colours: 262144 colours
- Contrast ratio (typical): 800
- Response time: 23 ms
- Effective viewing area: 304.1 x 228.1 mm
- Viewing angle, vertical: 150 °
Processor
- Processor manufacturer: Intel
- Processor family: Intel® Celeron®
- Processor frequency: 1.1 GHz
- Processor cache: 8 MB
Memory
- Internal memory: 8 GB
- Maximum internal memory: 32 GB
- Number of memory slots: 2
- Memory slots type: SO-DIMM
- Memory clock speed: 4800 MHz
Storage
- Total storage capacity: 128 GB
- Storage media: SSD
- NVMe: Yes
Graphics
- Graphics card manufacturer: Intel
- Graphics card: UHD Graphics
Multimedia
- Built-in speaker(s): Yes
- Number of speakers: 2
Network
- Ethernet LAN: Yes
- Bluetooth: Yes
- Wi-Fi: Yes
- Wi-Fi standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- DC-in jack: Yes
Design
- Product colour: Black
Performance
- Trusted Platform Module (TPM): Yes
- Trusted Platform Module (TPM) version: 2.0
Software
- Operating system installed: No
Power
- AC input voltage: 100-240 V
- AC input frequency: 50-60 Hz
- Power consumption (typical): 34 W
- Power supply: 180 W
Operational conditions
- Storage temperature (T-T): -20 - 60 °C
- Operating temperature (T-T): 0 - 35 °C
- Storage relative humidity (H-H): 5 - 95 %
- Operating relative humidity (H-H): 20 - 80 %
Ergonomics
- VESA mounting: Yes
- Panel mounting interface: 75 x 75 mm
Weight & dimensions
- Width: 359.5 mm
- Depth: 197.5 mm
- Height: 356 mm
- Weight: 6700 g
Packaging data
- Quantity per pack: 1 pc(s)
- Package width: 497 mm
- Package depth: 345 mm
- Package height: 487 mm
- Package weight: 7900 g
Packaging content
- Cables included: Power
- Quick start guide: Yes
Security
- Cable lock slot type: Kensington
- Cable lock slot: Yes
