The ScanPal EDA61K enables small and medium businesses to profit from global e-commerce by ensuring the reliable flow of inventory, even in the face of seasonal fluctuation, unpredictable surge demand and a rapidly changing workforce.

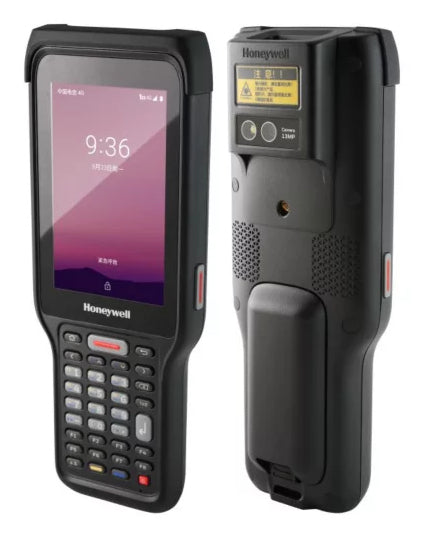

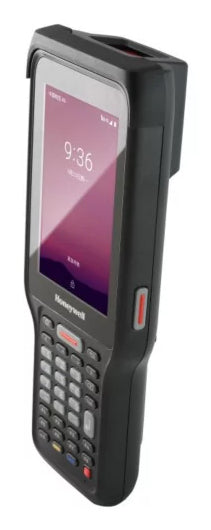

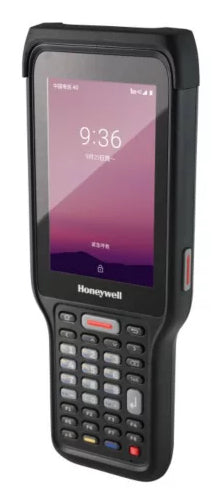

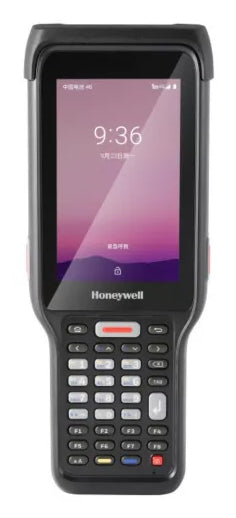

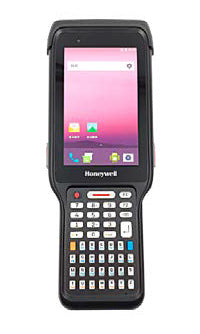

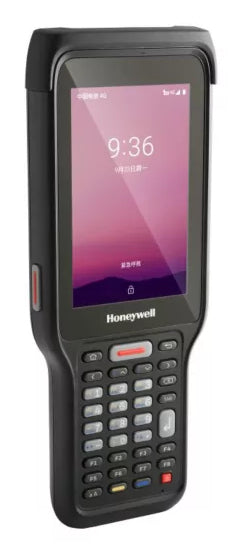

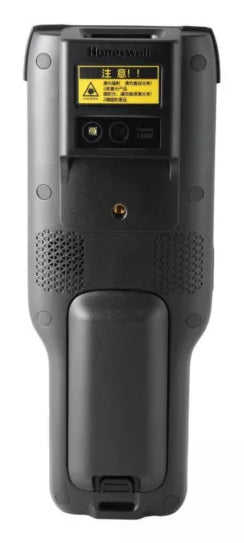

The Honeywell ScanPal™ EDA61K is a rugged, keyed mobile computer that helps businesses automate and error-proof workflows in indoor or outdoor warehouses, distribution centers and retail backrooms. With a battery that lasts for two to three shifts and a lightweight, ergonomically balanced design that minimizes user fatigue, the EDA61K helps keep material flowing smoothly all day long, even during peak season.
- Responsive performance and quick access to businesscritical information with the speedy Qualcomm 1.8 GHz octa-core chipset, ample memory and reliable Wi-Fi.
- Snappy, accurate data capture from a few centimeters to up to 15 meters (49.2 feet)with Honeywell’s slim N6703 and long-range EX20 scan imagers, and a 13-megapixel, autofocus camera.
- Uninterrupted operation for more than two full shifts with Honeywell’s 7,000 mAh, hotswappable, lithium-ion smart battery pack that lasts 25 hours on a single charge.
- Stay connected with fast, dual-band, 802.11 a/b/ g/n/ac Wi-Fi, Bluetooth® 4.2 and cellular support in most countries.
Available with both 34-key numeric and 47-key alpha-numeric keypad options, and a choice of scan engines that read from a few centimeters to up to 15 meters, the EDA61K is available in configurations suitable for most applications. The EDA61K comes with 4G LTE cellular support in many countries, making it possible to eliminate Wi-Fi infrastructure in some cases. Combined with a rugged package that survives repeated 1.5-meter (4.9 ft) drops to concrete, this means you can be confident that the EDA61K will deliver reliable, secure, compatible performance for years, maximizing return on investment. In addition to traditional keypads, the EDA61K is available with pre-licensed StayLinked SmartTE software and a sensitive, 4-inch touchscreen that make it suitable for younger workforces more accustomed to touchscreens, reducing training and adoption time – a key advantage for enterprises employing temporary workers during peak seasons.
Display
- Display diagonal: 4 "
- Display: LED
- Touch technology: Multi-touch
- Touchscreen type: Capacitive
- Touchscreen: Yes
Memory
- Internal memory: 3 GB
- Flash memory: 32 GB
- Compatible memory cards: MicroSD (TransFlash),MicroSDHC
- Maximum memory card size: 128 GB
Processor
- Processor frequency: 1.8 GHz
- Processor family: Qualcomm
- Processor model: 450
- Number of cores: 8
Network
- Wi-Fi: Yes
- Wi-Fi standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
- Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
- Bluetooth: Yes
- Bluetooth version: 4.2
GPS Performance
- GPS (satellite): Yes
Camera
- Built-in camera: Yes
- Rear camera resolution (numeric): 13 MP
- Built-in flash: Yes
- Auto focus: Yes
Ports & interfaces
- I/O ports: USB-C
Software
- Operating system installed: Android
- Operating system version: 9.0
Power
- AC adapter output voltage: 5 V
- AC adapter output current: 2 A
- AC adapter included: Yes
Weight & dimensions
- Weight: 435 g
- Width: 78 mm
- Depth: 41.9 mm
- Height: 206 mm
Operational conditions
- Operating relative humidity (H-H): 10 - 90 %
- Operating temperature (T-T): -20 - 50 °C
- Storage temperature (T-T): -30 - 70 °C
Packaging content
- Cables included: USB Type-C
Technical details
- Electrostatic Discharge (ESD) protection (air): 12 kV
- Electrostatic Discharge (ESD) protection (contact): 8 kV
