Universal Barcode Scanning Sled and Passport, OCR, Travel ID, Dot Code Reader.

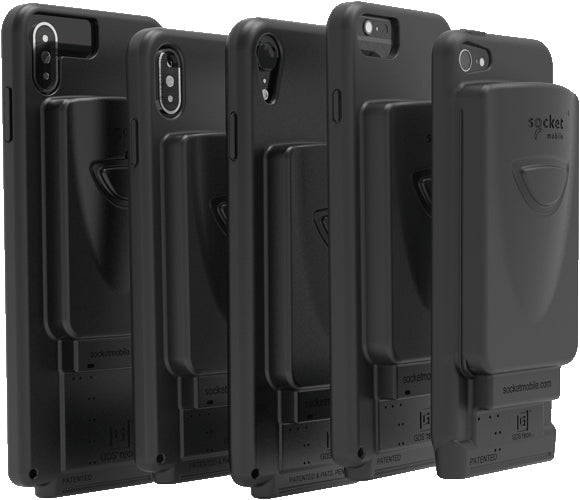

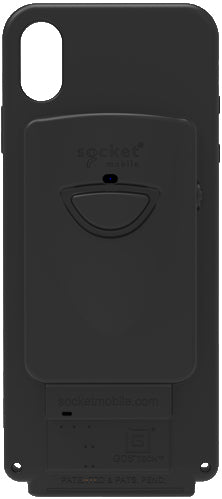

The DuraSled is a scanning sled for 1D/2D barcodes and travel identification reading, with Bluetooth wireless technology for iPhones and iPods. The DS860 scans 1D, 2D barcodes, OCR A & B fonts, OCR USC, OCR passport, OCR MICR (E13B) fonts and DotCode while the sled protects devices from tumbles. It is easy-to-use and ideal for the travel industry, retail point of sale, field service or mobile service workers. Simply insert your iPhone/iPod, pair your scanner and you are ready to go.
Scanning
- Type: Barcode module bar barcode readers
- Scanner type: 1D
- Linear (1D) barcodes supported: Codabar,Code 11,Code 128,Code 39,Code 93,EAN-13,EAN-8,GS1 DataBar Expanded,GS1-128 (UCC/EAN-128),Interleaved 2 of 5,MSI,U.P.C.
- 2D (matrix & stacked) barcodes supported: Aztec Code,Data Matrix,Dot Code A,Han Xin,MaxiCode,Micro QR Code,MicroPDF417,PDF417,QR Code
Ports & interfaces
- Connectivity technology: Wireless
- Standard interfaces: Bluetooth
- Wireless range: 10 m
- Bluetooth version: 2.1+EDR
Performance
- Product colour: Black
- Housing material: Elastomer
- International Protection (IP) code: IP40
Power
- Power source type: Battery
- Battery technology: Lithium-Ion (Li-Ion)
- Battery type: Built-in battery
- Number of reads per charge: 10000
- Battery life: 10 h
- Charging time: 4 h
Weight & dimensions
- Width: 60 mm
- Depth: 137.6 mm
- Height: 17.02 mm
- Weight: 87 g
Operational conditions
- Storage temperature (T-T): -30 - 70 °C
- Operating temperature (T-T): 0 - 50 °C
- Operating relative humidity (H-H): 5 - 95 %
Technical details
- Compliance certificates: RoHS
