The DuraSled™ DS860 is a barcode scanning sled for 1D/2D barcodes and travel identification reading, with Bluetooth® wireless technology for iPhones and iPods. The DS860 scans 1D, 2D barcodes, OCR A & B fonts, OCR USC, OCR passport, OCR MICR (E13B) fonts and DotCode while the sled protects devices from tumbles. It is easy-to-use and ideal for the travel industry, retail point of sale, field service or mobile service workers. Simply insert your iPhone/iPod, pair your scanner and you are ready to go.
The DuraSled’s core elements remain constant, enabling seamless transitions to the ever-changing iPhone models, using the same application and same DuraSled charging infrastructure. DuraSled supports the iPod, iPhone 6, 7, 8, iPhone X series and the entire iPhone 11 series. The core components don’t change when switching to a new iPhone model, enabling users to maintain their mobile deployment investment. The sled creates a one-handed solution that will allow merchants to scan barcodes of products and the passports of consumers with one device.
Scanning
- Type: Barcode module bar barcode readers
- Scanner type: 1D/2D
- 2D (matrix & stacked) barcodes supported: Aztec Code,Data Matrix,Han Xin,MaxiCode,Micro QR Code,MicroPDF417,PDF417,QR Code
- Linear (1D) barcodes supported: Codabar,Code 11,Code 128,Code 39,Code 93,Discrete 2 of 5,EAN-13,EAN-8,GS1 DataBar,GS1 DataBar Expanded,GS1 Databar Limited,GS1-128 (UCC/EAN-128),ISSN,Interleaved 2 of 5,MSI,Matrix 2 of 5,UPC-A,UPC-E
- Light levels (direct sunlight): 0 - 100000 lx
Ports & interfaces
- Connectivity technology: Wireless
- Standard interfaces: Bluetooth
- Wireless range: 10 m
- Bluetooth version: 2.1+EDR
Performance
- Product colour: Black
- Housing material: Elastomer
Power
- Power source type: Battery
- Battery technology: Lithium-Ion (Li-Ion)
- Battery type: Built-in battery
- Battery capacity: 1500 mAh
- Number of reads per charge: 10000
- Battery life: 10 h
- Charging time: 4 h
Weight & dimensions
- Width: 60 mm
- Depth: 17.02 mm
- Height: 137.6 mm
- Weight: 87 g
Packaging data

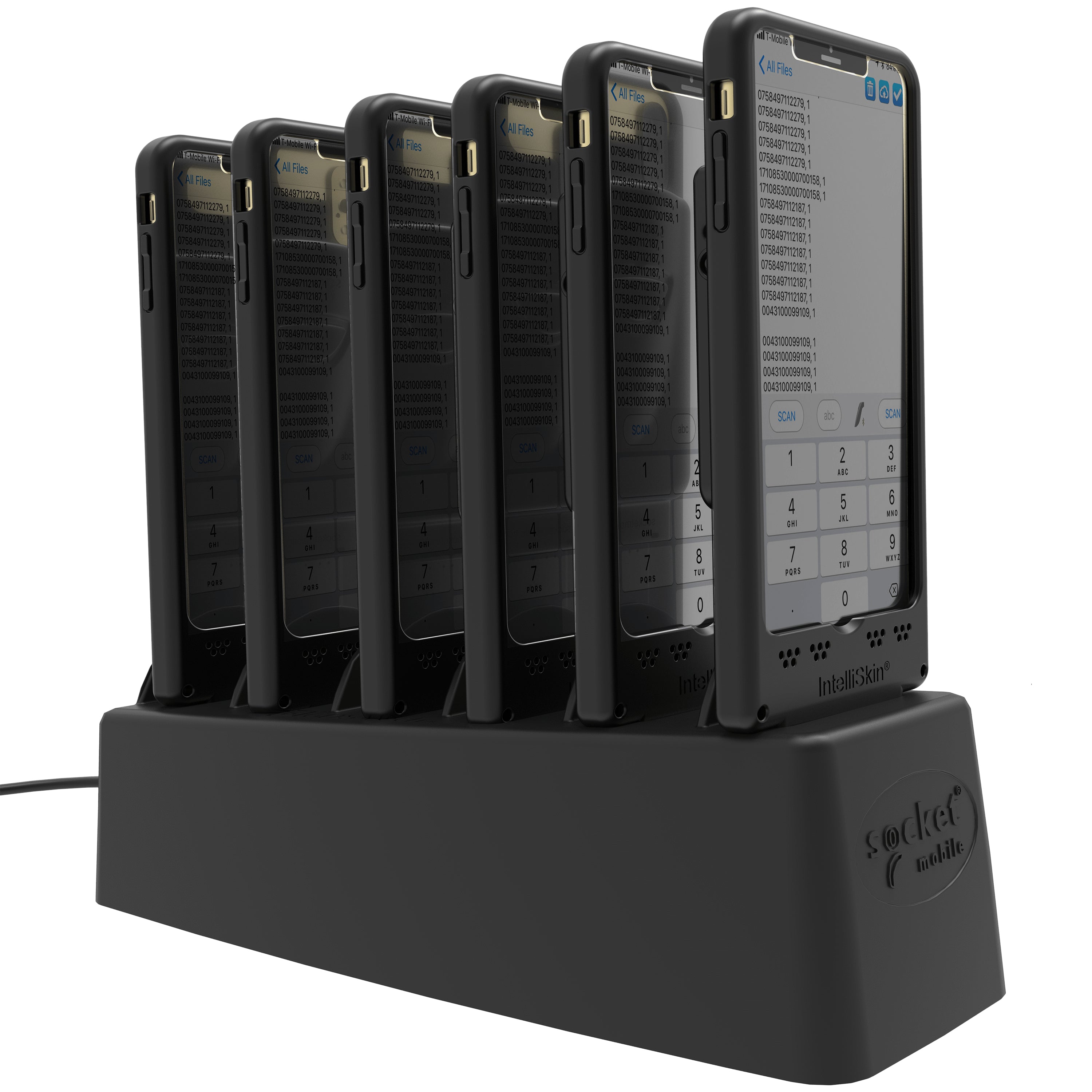

- Charging base: Yes
Operational conditions
- Operating relative humidity (H-H): 5 - 95 %
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -30 - 70 °C
Technical details
- Compliance certificates: RoHS
Logistics data
- Harmonized System (HS) code: 84716070
