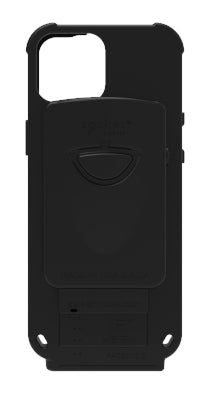

DuraSled DS840 for Apple
The DuraSled DS840 reads printed or on-screen barcodes. It is easy to use and ideal for delivery services, asset tracking, ticketing, and other application-driven mobile solutions. Its durable case protects phones from drop damage and provides a robust, versatile charging solution suitable for all workplace environments. Simply insert your iPhone, pair your scanner and you are ready to go. This makes it easy for workers to mix and match DuraSled solutions for iPhones, all while using the same accessories and SDK. The core components don’t change when switching to a new iPhone model, enabling users to maintain their mobile deployment investments for a relevant number of years. The CaptureSDK enables easy integration into native and/or web-based applications that use scanning to enhance the productivity of workers using iPhones.
Scanning
- Type: Smartphone barcode reader
- Scanner type: 1D/2D
- 2D (matrix & stacked) barcodes supported: Aztec Code,Data Matrix,MaxiCode,Micro QR Code,MicroPDF417,PDF417,QR Code
- Linear (1D) barcodes supported: Codabar,Code 11,Code 128,Code 39,Code 93,Discrete 2 of 5,EAN-13,EAN-8,GS1 DataBar,GS1 DataBar Expanded,GS1 Databar Limited,GS1-128 (UCC/EAN-128),Interleaved 2 of 5,Matrix 2 of 5,UPC-A,UPC-E
- Light levels (direct sunlight): 0 - 100000 lx
Ports & interfaces
- Connectivity technology: Wireless
- Standard interfaces: Bluetooth
- Wireless range: 10 m
- Bluetooth version: 2.1+EDR
Performance
- Product colour: Black
- Housing material: Rubber
- Protection features: Drop proof
- LED indicators: Yes
Power
- Power source type: Battery
- Battery technology: Lithium Polymer (LiPo)
- Number of batteries supported: 1
- Battery capacity: 700 mAh
- Battery voltage: 3.7 V
- Number of reads per charge: 10000
- Battery life: 11 h
- Charging time: 8 h
Weight & dimensions
- Width: 71.6 mm
- Depth: 7.8 mm
- Height: 147.6 mm
- Weight: 113.5 g
Packaging data
- Cables included: USB
Operational conditions
- Operating relative humidity (H-H): 0 - 95 %
- Storage temperature (T-T): -40 - 70 °C
- Operating temperature (T-T): 0 - 45 °C
Technical details
- Compliance certificates: RoHS
- Sustainability compliance: Yes
