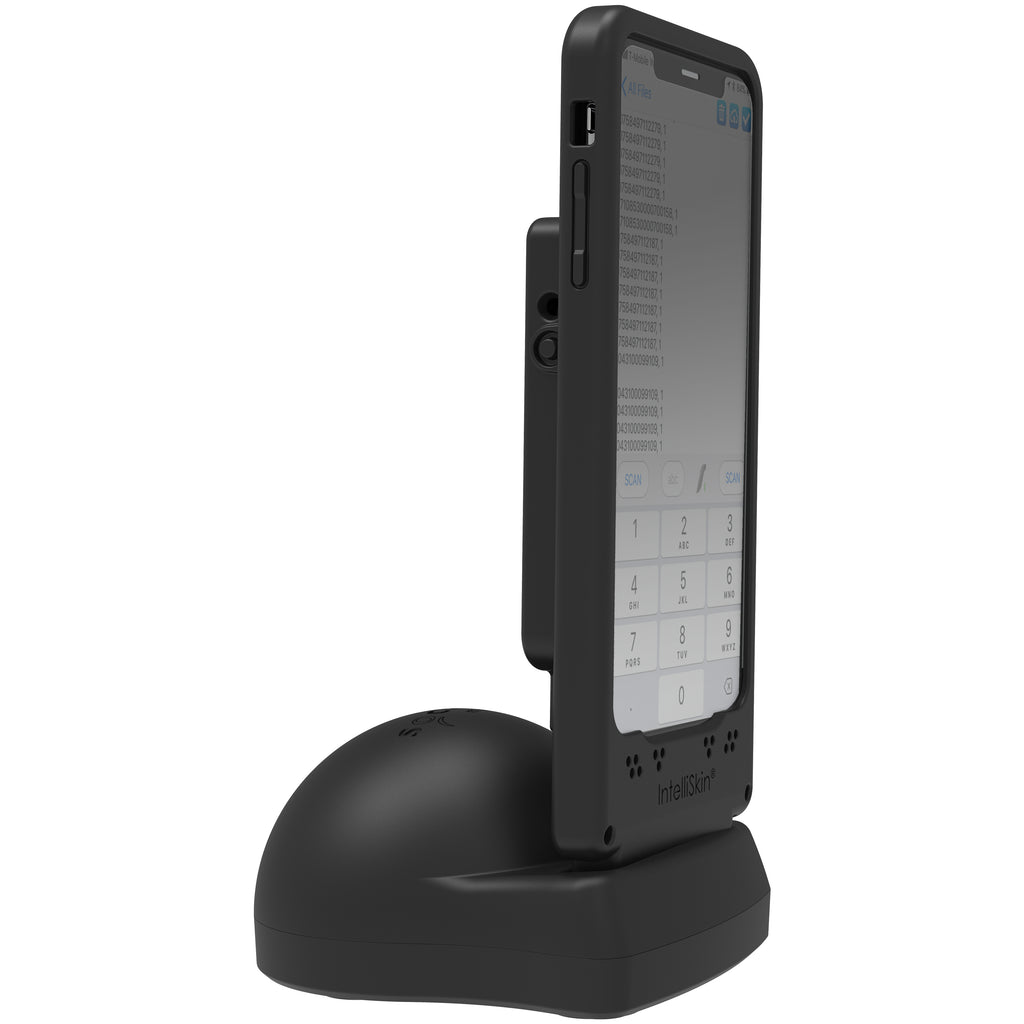

The DuraSled™ DS800 is a 1D barcode scanning sled with Bluetooth® wireless technology for Apple iPhones and iPods. The sled protects devices from tumbles, is easy-to-use and ideal for delivery services, stock counting, ticketing and other application-driven mobile solutions. Simply insert your iPhone/iPod, pair your scanner and you are ready to go.
The DuraSled’s core elements remain constant, enabling seamless transitions to the ever-changing iPhone models, using the same application and same DuraSled charging infrastructure. DuraSled supports the iPod, iPhone 6, 7, 8, iPhone X series and the entire iPhone 11 series. The core components don’t change when switching to a new iPhone model, enabling users to maintain their mobile deployment investments for a relevant number of years.
Certified by Apple for iOS devices (iPad, iPhone, iPod Touch devices) and compatible with Android and Windows.
Scanning
- Type: Barcode module bar barcode readers
- Scanner type: 1D
- 2D (matrix & stacked) barcodes supported: Not supported
- Linear (1D) barcodes supported: Codabar,Code 11,Code 128,Code 39,Code 93,Discrete 2 of 5,EAN-13,EAN-8,GS1 DataBar,GS1 DataBar Expanded,GS1 Databar Limited,GS1-128 (UCC/EAN-128),Interleaved 2 of 5,Matrix 2 of 5,UPC-A,UPC-E
- Light levels (direct sunlight): 0 - 100000 lx
Ports & interfaces
- Connectivity technology: Wireless
- Standard interfaces: Bluetooth
- Wireless range: 10 m
- Bluetooth version: 2.1+EDR
Performance
- Housing material: Elastomer
Power
- Power source type: Battery
- Battery technology: Lithium-Ion (Li-Ion)
- Battery type: Built-in battery
- Battery capacity: 1500 mAh
- Number of reads per charge: 10000
- Battery life: 10 h
- Charging time: 4 h
Weight & dimensions
- Width: 60 mm
- Depth: 17.02 mm
- Height: 137.6 mm
- Weight: 82 g
Packaging data
- Charging base: Yes
Operational conditions
- Operating relative humidity (H-H): 5 - 95 %
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -30 - 70 °C
Technical details
- Compliance certificates: RoHS
Logistics data
- Harmonized System (HS) code: 84716070
