Socket Mobile D760, Handheld bar code reader, 1D/2D, LED, AusPost, Codabar, Code 11, Code 128, Code 39, Code 93, Discrete 2 of 5, EAN-13, EAN-8, GS1..., Aztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, 1280 x 960...

SOCKET MOBILESKU: CX4356-3489
1D/2D, 1280x960px, Bluetooth 2.1+EDR, IP54, 1400 mAh Li-Po, 3.7V

Pris:
Reapris6,642.82 kr eks. mva.
Lager:
Preliminärt i lager

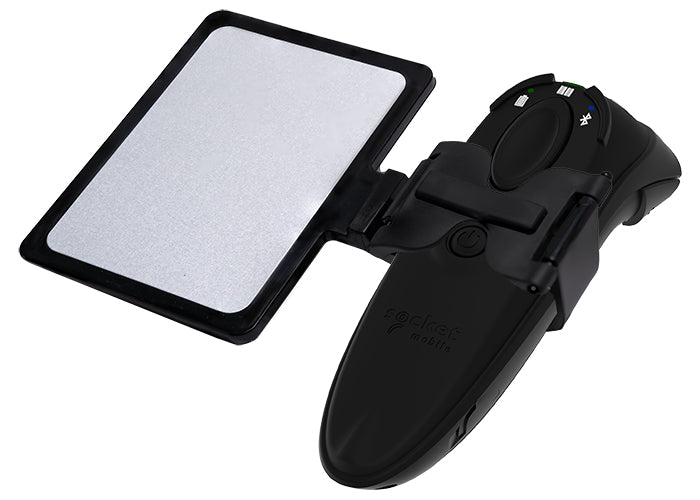

DuraScan D760

Travel merchants only need one device to scan purchased items and passports. Based on customer feedback, we've added a field-replaceable battery. The scanner is MFi certified and fully compatible with Android and Windows, with different CaptureSDK versions available. The D760 reads OCR fonts, passports, travel IDs, DotCode, and 2D/1D barcodes on paper and screen. It features great ergonomics, fits perfectly in your hand, and is small enough to fit in your pocket. The D760 is fully backward compatible with prior versions of Socket Mobile's SDK and can be used immediately with any application using native scanning support. To enjoy optimal reliability and performance from the D760, it is recommended that users check with their app provider to ensure they have upgraded to the latest version of CaptureSDK.

Scanning

  • Type: Handheld bar code reader
  • Scanner type: 1D/2D
  • Sensor type: LED
  • 2D (matrix & stacked) barcodes supported: Aztec Code,Data Matrix,Han Xin,MaxiCode,Micro QR Code,MicroPDF417,PDF417,QR Code
  • Linear (1D) barcodes supported: AusPost,Codabar,Code 11,Code 128,Code 39,Code 93,Discrete 2 of 5,EAN-13,EAN-8,GS1 DataBar,GS1 DataBar Expanded,GS1 Databar Limited,GS1-128 (UCC/EAN-128),ISSN,Interleaved 2 of 5,JAN,MSI,Matrix 2 of 5,UPC-A,UPC-E
  • Optical sensor resolution (W x H): 1280 x 960 pixels
  • Light levels (direct sunlight): 0 - 100000 lx

Ports & interfaces

  • Connectivity technology: Wireless
  • Standard interfaces: Bluetooth
  • Wireless range: 10 m
  • Bluetooth version: 2.1+EDR

Performance

  • Product colour: Black,White
  • International Protection (IP) code: IP54
  • Protection features: Drop proof
  • LED indicators: Yes
  • Buzzer: Yes
  • Print contrast: 25 %

Power

  • Power source type: Battery
  • Battery technology: Lithium Polymer (LiPo)
  • Battery capacity: 1400 mAh
  • Battery voltage: 3.7 V
  • Number of reads per charge: 85000
  • Battery life: 25 h
  • Charging time: 6 h

Weight & dimensions

  • Width: 38.1 mm
  • Depth: 132 mm
  • Height: 43.1 mm

Operational conditions

  • Operating temperature (T-T): 0 - 45 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 0 - 95 %

Technical details

  • Compliance certificates: RoHS
+
