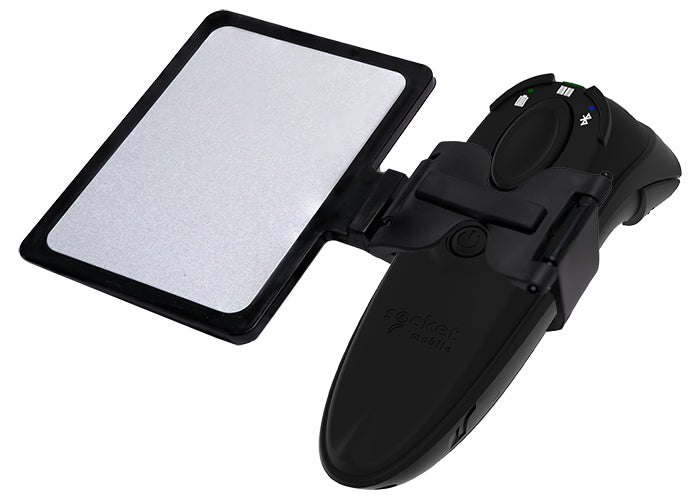

DuraScan D740
The D740 reads 1D, 2D, OCR A & B fonts, OCR USC, OCR passport, OCR MICR (E13B) fonts, and DotCode, covering most travel identification documents, including passports, international IDs, and micro QR codes on drivers’ licenses. It is an excellent option for solutions requiring age verification and tracking cannabis, alcohol, or tobacco sales.
Scanning
- Type: Handheld bar code reader
- Scanner type: 1D/2D
- Linear (1D) barcodes supported: Codabar,Code 11,Code 128,Code 39,Code 93,Discrete 2 of 5,EAN-13,EAN-8,GS1 DataBar,GS1 DataBar Expanded,GS1 Databar Limited,ISSN,Interleaved 2 of 5,JAN,MSI,Matrix 2 of 5,UPC-A,UPC-E
- 2D (matrix & stacked) barcodes supported: Aztec Code,Data Matrix,Han Xin,MaxiCode,Micro QR Code,MicroPDF417,PDF417,QR Code
- Sensor type: LED
- Light levels (direct sunlight): 0 - 100000 lx
Ports & interfaces
- Connectivity technology: Wireless
- Standard interfaces: Bluetooth
- Wireless range: 10 m
- Bluetooth version: 2.1+EDR
Performance
- Product colour: Black
- International Protection (IP) code: IP54
- Protection features: Drop proof
- LED indicators: Yes
Power
- Power source type: Battery
- Battery technology: Lithium Polymer (LiPo)
- Battery capacity: 1400 mAh
- Battery voltage: 3.7 V
- Number of reads per charge: 85000
- Battery life: 20 h
- Charging time: 6 h
Weight & dimensions
- Width: 38.1 mm
- Depth: 132 mm
- Height: 132.2 mm
Operational conditions
- Operating relative humidity (H-H): 0 - 95 %
- Operating temperature (T-T): 0 - 45 °C
- Storage temperature (T-T): -40 - 70 °C
Technical details
- Compliance certificates: RoHS
