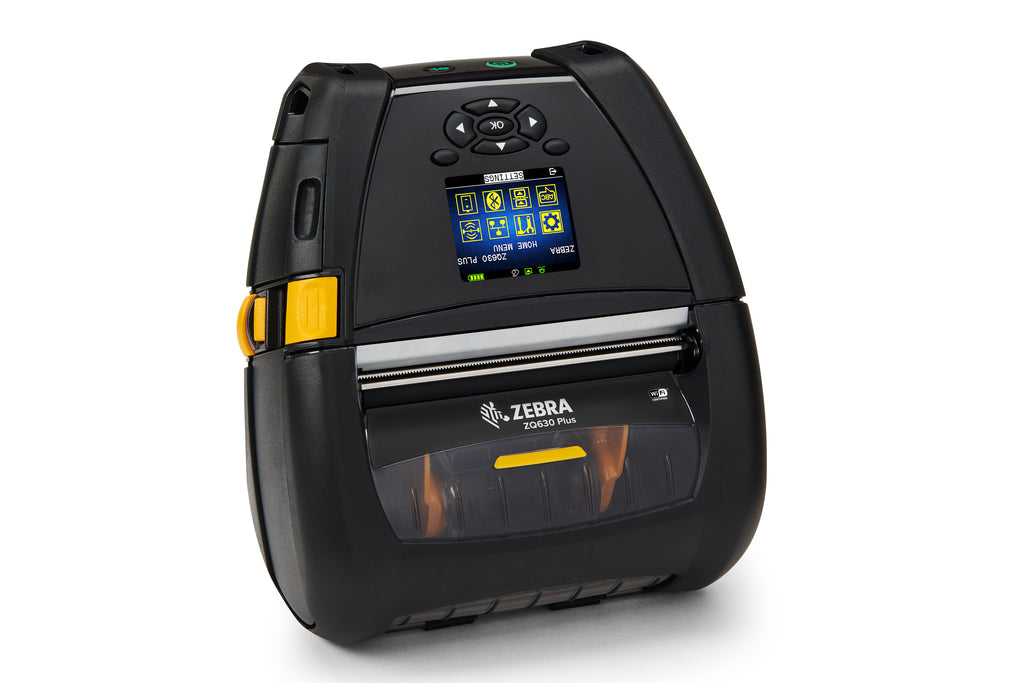

Always on the edge of innovation, Zebra offers premium RFID mobile printers to give your workers a leading advantage. The ZQ630 Plus RFID rounds out Zebra’s ZQ600 Plus Series printers with advanced technology and innovative design that drive productivity, ease-of-use and manageability to a new level. Save time, reduce errors, print and encode RFID labels and tags on the spot with ease. A large color display takes all the guesswork out of printer status. Advanced battery technology and more battery capacity–6600 mAh–power every minute of the longest shift. The instant wake-up feature on Wi-Fi™ or Bluetooth® ensures the ZQ630 Plus RFID never sleeps on the job. And, the ZQ630 Plus RFID is easier to integrate, manage, setup and secure, thanks to Zebra’s Link-OS® printer operating system and powerful Print DNA™ suite of applications, utilities and developer tools.
Printing
- Print technology: Direct thermal
- Maximum resolution: 203 x 203 DPI
- Print speed: 115 mm/sec
- Maximum printing width: 104 mm
Paper handling
- Supported paper width: 112 mm
- Maximum media length: 813 mm
Ports & interfaces
- Connectivity technology: Wired & Wireless
- Ethernet LAN: No
- Wi-Fi: Yes
- Wi-Fi standards: Wi-Fi 5 (802.11ac)
- Bluetooth: Yes
- Bluetooth version: 4.2
- Bluetooth Low Energy (BLE): Yes
- USB port: Yes
- RS-232 ports: 1
Performance
- Internal memory: 256 MB
- Flash memory: 512 MB
- Built-in barcodes: AZTECCODE,CODABAR (NW-7),Code 39,Code 93,Code-128 Codabar Library,Data Matrix,EAN128,EAN13,EAN8,GS1 DataBar,Interleaved 2/5,Macro PDF417,MaxiCode,PDF417,Plessey,QR Code,TLC39,UPC-A,UPC-E
- Built-in RFID module: Yes
Design
- Product colour: Black
- Display resolution: 288 x 240 pixels
Power
- Battery technology: Lithium-Ion (Li-Ion)
- Battery capacity: 6600 mAh
- Power source type: Battery
Operational conditions
- Operating relative humidity (H-H): 10 - 90 %
- Storage relative humidity (H-H): 10 - 90 %
- Storage temperature (T-T): -25 - 65 °C
- Operating temperature (T-T): -20 - 50 °C
Weight & dimensions
- Width: 82.5 mm
- Depth: 165.1 mm
- Height: 186.7 mm
- Weight: 1100 g
