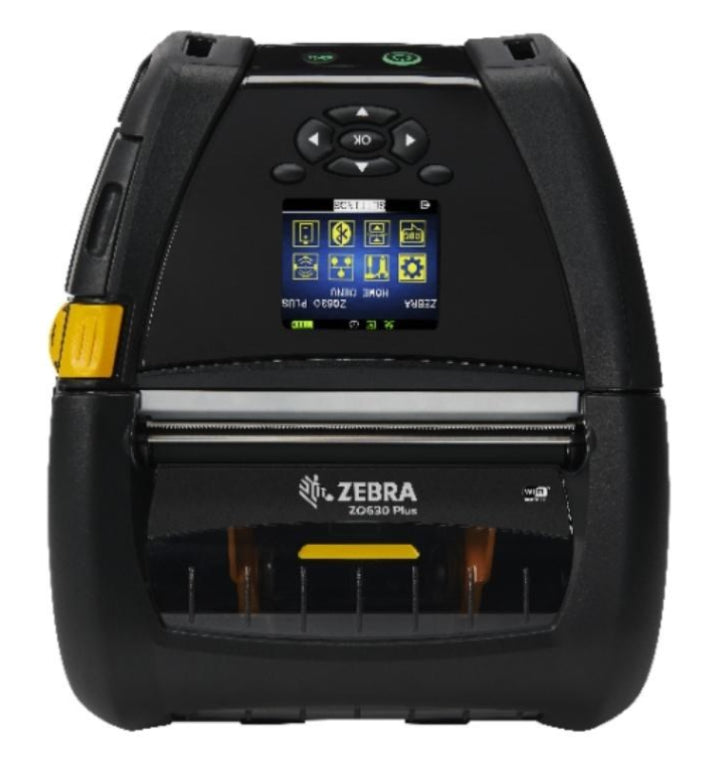

The ZQ630 Plus premium mobile printer offers the fastest, most dependable wireless connections inside the four walls - with support for 802.11ax Wi-Fi 6 and Bluetooth 5.
While the ZQ630 Plus is lightweight and comfortable to wear all shift long, it is loaded with features that give it long-lasting durability, including over-molding, a tempered-glass display and seamless one-piece design.
Printing
- Print technology: Direct thermal
- Colour: No
- Maximum resolution: 203 x 203 DPI
- Print speed: 115 mm/sec
- Maximum printing width: 104 mm
- Minimum print length: 12.7 mm
- Vertical printing: Yes
Paper handling
- Maximum label width: 104 mm
- Maximum roll diameter: 66 mm
- Media thickness: 2.3, 5.5, 6.5 mm
Ports & interfaces
- Connectivity technology: Wired & Wireless
- Wi-Fi: Yes
- Wi-Fi standards: Wi-Fi 6 (802.11ax)
- Bluetooth: Yes
- Bluetooth version: 5.3
- USB port: Yes
Performance
- Page description languages: CPCL-native,EPL,ZBI,ZPL
- Internal memory: 256 MB
- Flash memory: 512 MB
- Built-in barcodes: 2D,AZTECCODE,CODABAR (NW-7),Code 128 (A/B/C),Code 93,Data Matrix,EAN128,EAN13,EAN8,GS1 DataBar,Interleaved 2/5,MaxiCode,Micro QR Code,MicroPDF417,PDF417,QR Code,TLC39,UPC-A,UPC-E
- Built-in processor: Yes
- Number of fonts: 26
- Security algorithms: 802.1x RADIUS,AES,EAP-FAST,EAP-TLS,EAP-TTLS,LEAP,PEAP,TKIP,WEP,WPA,WPA2
- Certification: FCC Part 15, Subpart B, EN55022 Class-B, EN60950, EN55024 and VCCI class B, EN55024, EN61000-4-2, EN61000-4-3, EN61000-4-4, and EN61000-4-5, CE, TUV, CSA, Made for iPod/iPhone/iPad
Design
- Product colour: Black
- Built-in display: Yes
- Display: LCD
- Display resolution: 288 x 240 pixels
- Colour display: Yes
Power
- Battery type: Built-in battery
- Number of batteries supported: 1
- Battery technology: Lithium-Ion (Li-Ion)
- Battery capacity: 6600 mAh
Operational conditions
- Operating relative humidity (H-H): 10 - 90 %
- Storage relative humidity (H-H): 10 - 90 %
- Storage temperature (T-T): -25 - 65 °C
- Operating temperature (T-T): 0 - 50 °C
Weight & dimensions
- Width: 165.1 mm
- Depth: 186.7 mm
- Height: 82.5 mm
- Weight: 1100 g
