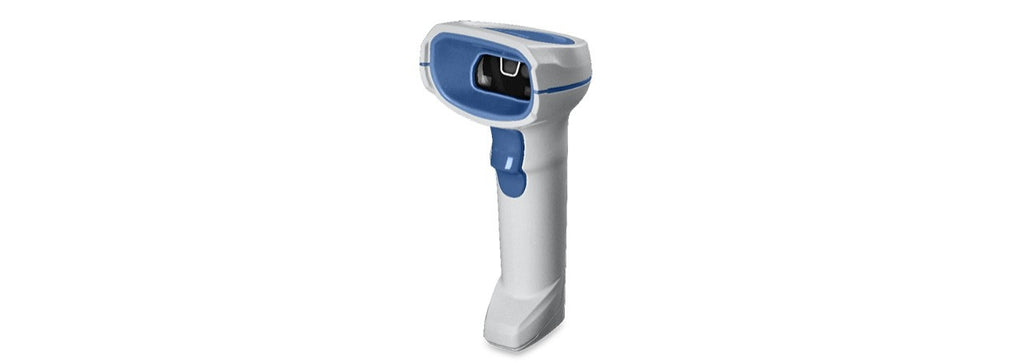

DS8178-HC FIPS DESK/WALL CRADLE USB KIT: DS8178-HCMF00BVMWW SCANNER, CBA-U21-S07ZBR SHIELDED USB CABLE, CR8178-SC100FBWW CRADLE
Scanning
- Type: Handheld bar code reader
- Scanner type: 1D/2D
- Linear (1D) barcodes supported: Codabar,Code 11,Code 128,Code 39,Code 93,GS1 DataBar Expanded,Interleaved 2 of 5,MSI,Plessey,U.P.C.
- Sensor type: LED
- 2D (matrix & stacked) barcodes supported: Aztec Code,Composite Codes,Data Matrix,Han Xin,MaxiCode,Micro QR Code,MicroPDF417,PDF417,QR Code,TLC-39
- Wavelength: 528 nm
- Tilt reading angle: 0 - 360 °
- Pitch reading angle: -60 - 60 °
- Yaw reading angle: -60 - 60 °
Ports & interfaces
- Connectivity technology: Wireless
- Standard interfaces: Bluetooth,USB
- Wireless range: 100 m
- Bluetooth version: 4.0
- Bluetooth Low Energy (BLE): Yes
Performance
- Product colour: White
- International Protection (IP) code: IP42
Power
- Power source type: Battery
- Battery technology: Lithium-Ion (Li-Ion)
- Battery type: Built-in battery
- Number of batteries supported: 1
- Battery capacity: 2500 mAh
- Number of reads per charge: 65000
- Battery life: 83 h
- Input voltage: 5 V
Weight & dimensions
- Width: 66 mm
- Depth: 107 mm
- Height: 168 mm
- Weight: 235 g
Operational conditions
- Operating relative humidity (H-H): 5 - 95 %
- Storage temperature (T-T): -40 - 70 °C
- Operating temperature (T-T): 0 - 50 °C
Logistics data
- Harmonized System (HS) code: 84716070
