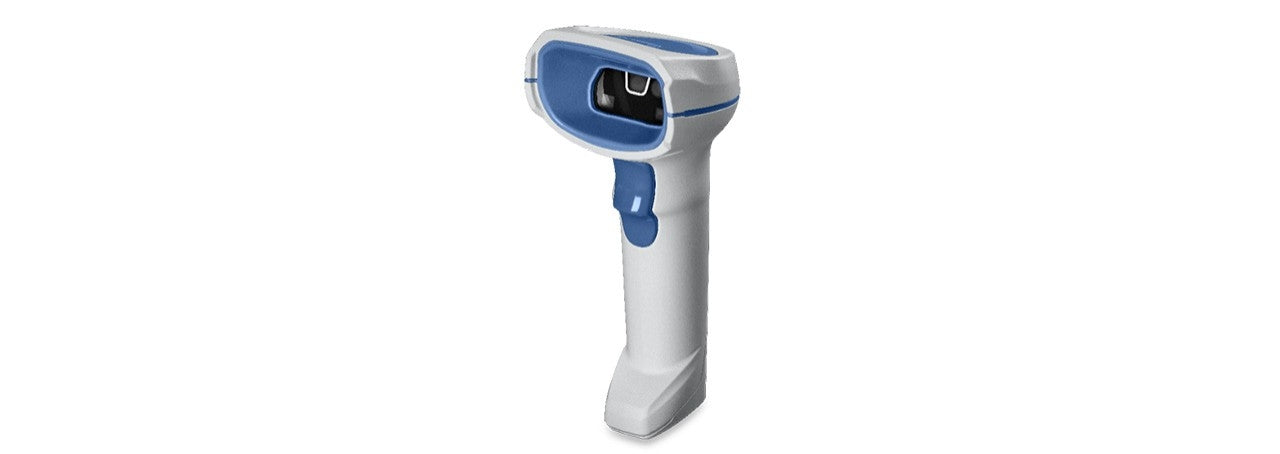

Zebra's premium DS8178-HC cordless scanner is purpose-built for healthcare environments and clinician workflows. With unparalleled performance to read the toughest barcodes in any condition, clinicians can stay focused on patient care. Two interchangeable power options can be swapped at any time, right in your facility, providing the flexibility to meet changing business needs while protecting your original investment.
Scanning
- Type: Handheld bar code reader
- Scanner type: 1D/2D
- 2D (matrix & stacked) barcodes supported: Aztec Code,Composite Codes,Data Matrix,Han Xin,MaxiCode,Micro QR Code,MicroPDF417,PDF417,QR Code,TLC-39
- Sensor type: LED
- Linear (1D) barcodes supported: Codabar,Code 11,Code 128,Code 39,Code 93,GS1 DataBar Expanded,Interleaved 2 of 5,MSI,Plessey,U.P.C.
- Wavelength: 528 nm
- Tilt reading angle: 0 - 360 °
- Pitch reading angle: 0 - 60 °
- Yaw reading angle: 0 - 60 °
Ports & interfaces
- Connectivity technology: Wired & Wireless
- Standard interfaces: RS-232,USB,Keyboard wedge
- Wireless range: 100 m
- Bluetooth Low Energy (BLE): Yes
- Bluetooth version: 4.0
- PC connection: RS-232/USB
Performance
- Product colour: White
- International Protection (IP) code: IP42
Power
- Power source type: Battery
- Battery technology: Lithium-Ion (Li-Ion)
- Battery type: Built-in battery
- Number of batteries supported: 1
- Battery capacity: 2500 mAh
- Number of reads per charge: 65000
- Battery life: 83 h
- Input voltage: 5 V
Weight & dimensions
- Width: 66 mm
- Depth: 107 mm
- Height: 168 mm
- Weight: 235 g
Operational conditions
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 5 - 95 %
- Operating temperature (T-T): 0 - 50 °C
Logistics data
- Harmonized System (HS) code: 84716070
