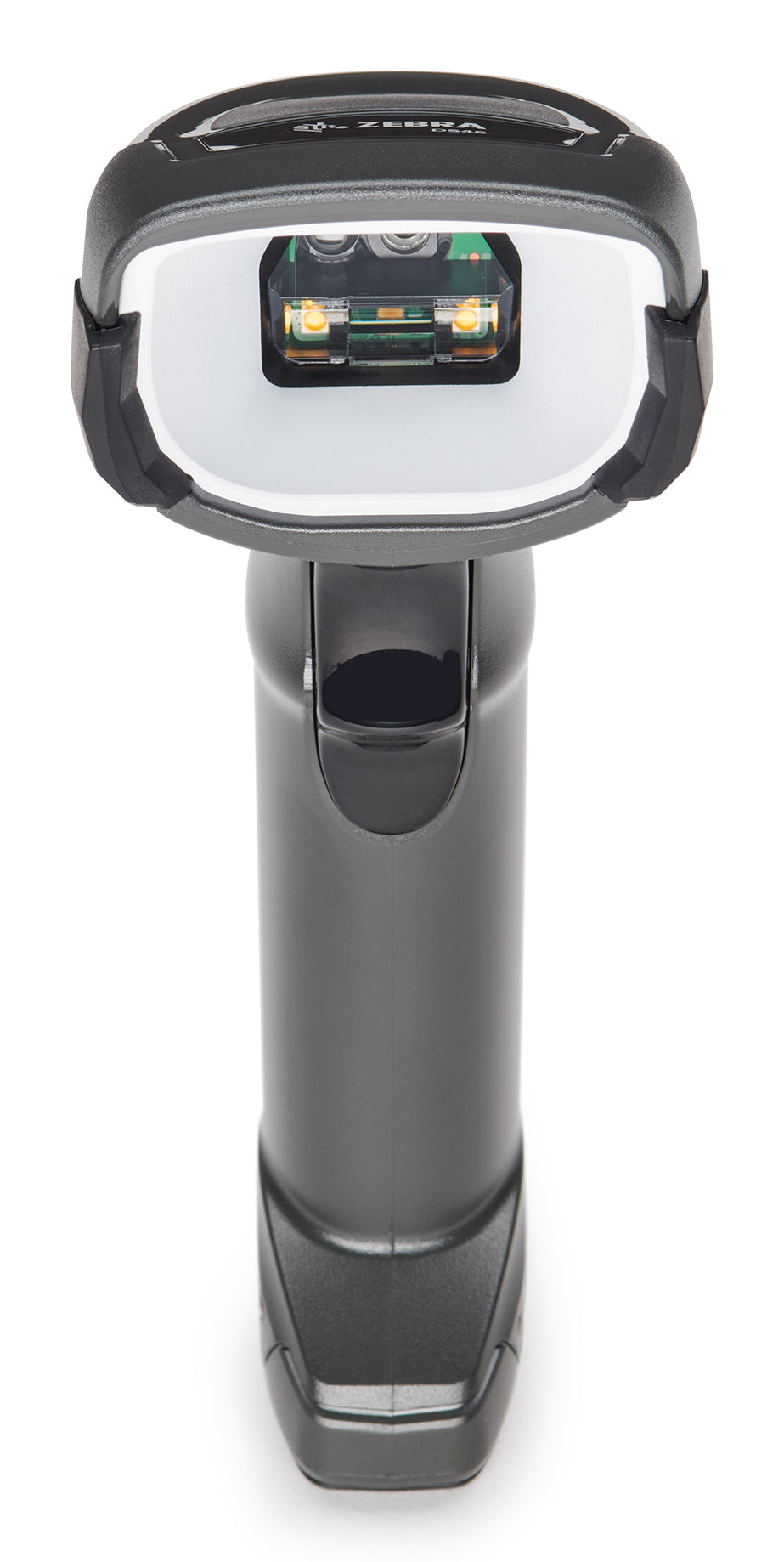

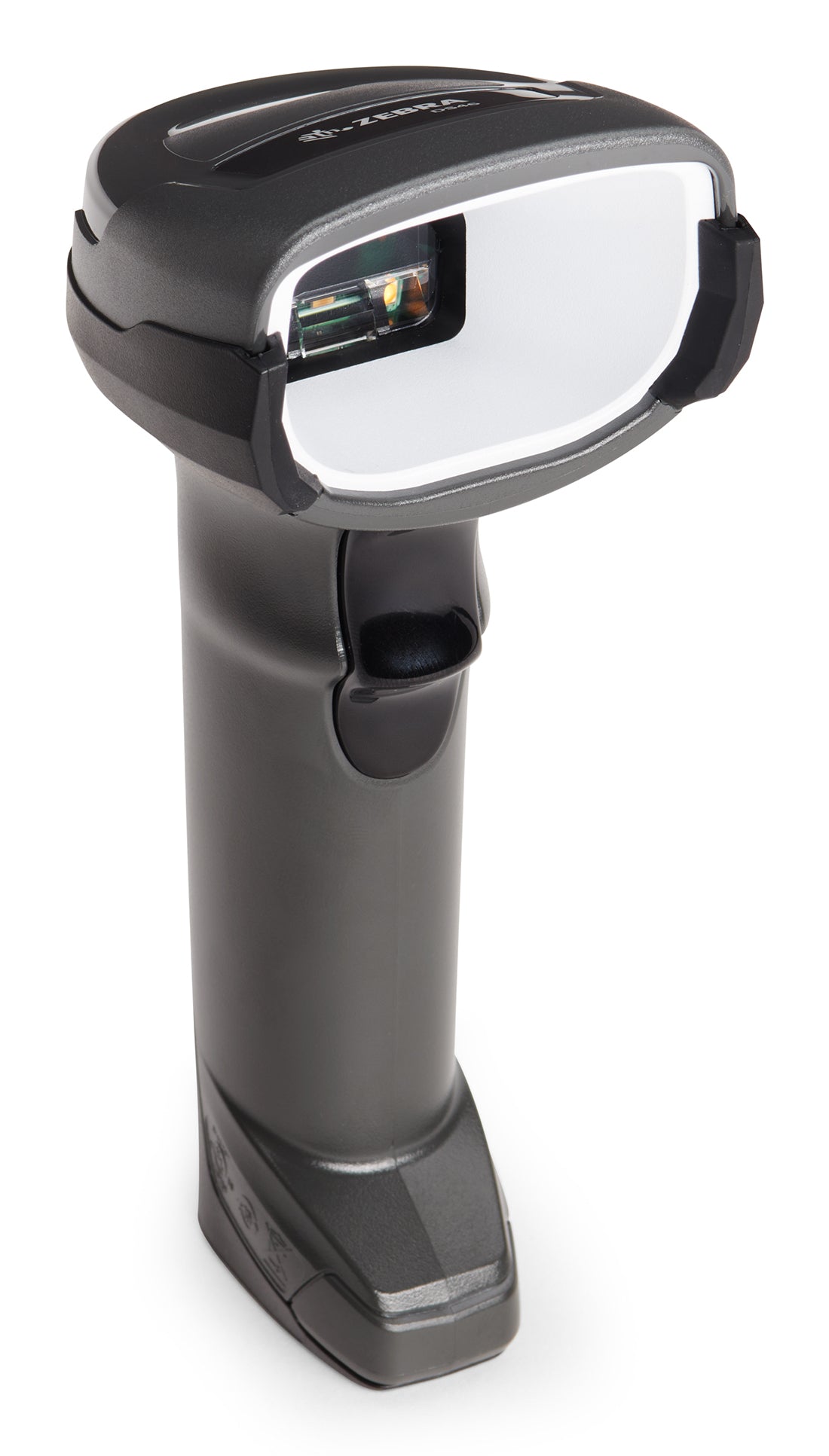

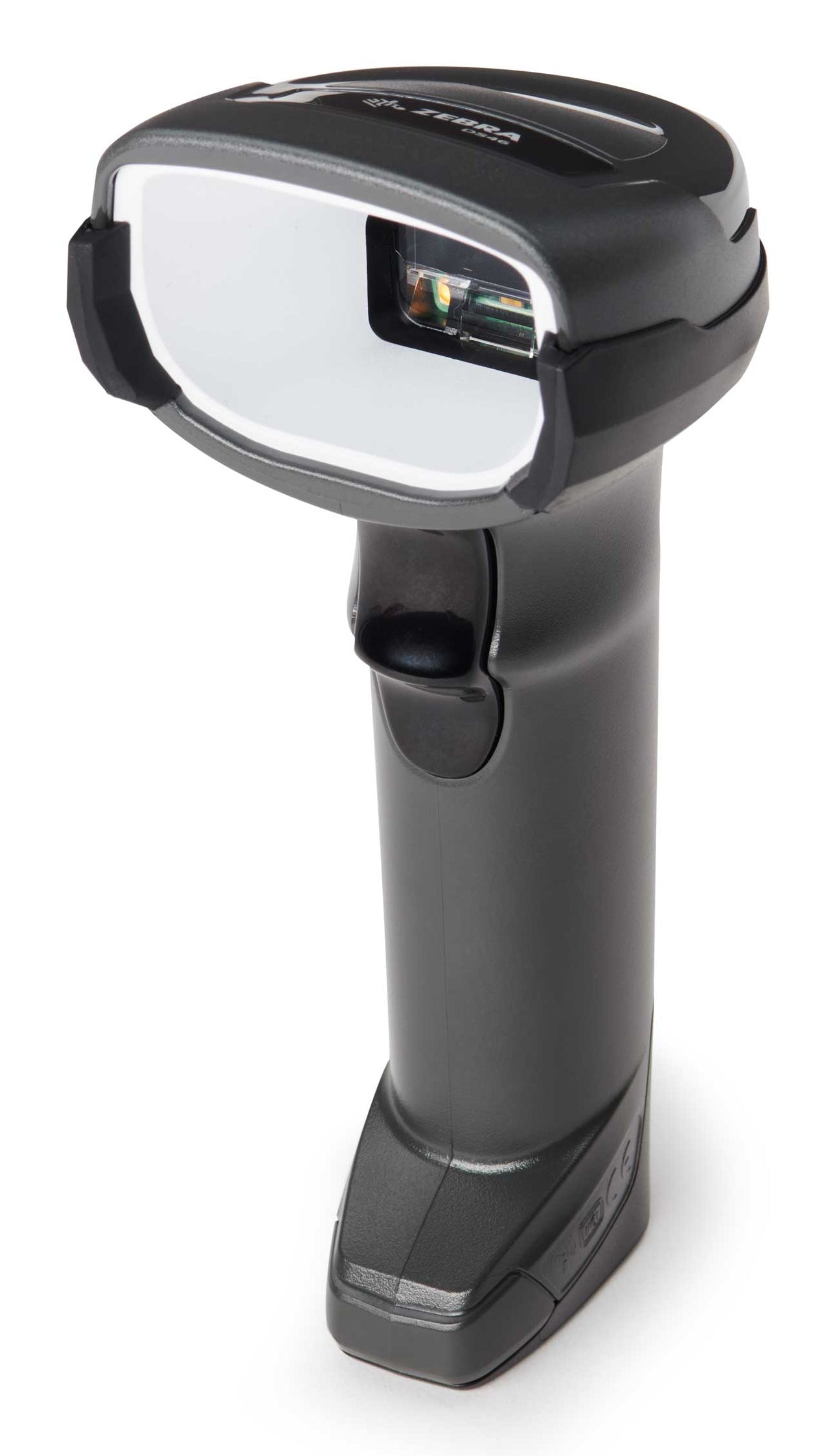

The cordless DS4678-DPE is purpose built to capture whatever type of barcodes are found in your electronics manufacturing operations-from laser etched direct part marks, high density and low contrast codes, to 4-inch wide barcodes. It's battery delivers more than 50,000 scans in a single charge.
Scanning
- Type: Handheld bar code reader
- Scanner type: 1D/2D
- Sensor type: LED
- 2D (matrix & stacked) barcodes supported: Aztec Code,Composite Codes,Data Matrix,Han Xin,MaxiCode,Micro QR Code,MicroPDF417,PDF417,QR Code,TLC-39
- Linear (1D) barcodes supported: Codabar,Code 11,Code 128,Code 39,Code 93,EAN 128,EAN 2,EAN 5,EAN-13,EAN-8,GS1 DataBar,MSI-Plessey,U.P.C.,UPC-A,UPC-E,UPC-E0,UPC-E1
- Optical sensor resolution (W x H): 1280 x 800 pixels
- Horizontal field of view: 31.6 °
- Vertical field of view: 22.6 °
- Light levels (direct sunlight): 0 - 107000 lx
- Tilt reading angle: 0 - 360 °
- Pitch reading angle: -60 - 60 °
- Yaw reading angle: -60 - 60 °
Ports & interfaces
- Connectivity technology: Wireless
- Standard interfaces: Bluetooth
- Bluetooth Low Energy (BLE): Yes
- Bluetooth version: 5.2
Performance
- Product colour: Black
- International Protection (IP) code: IP52
- LED indicators: Yes
- Image formats supported: BMP,JPEG,TIFF
- Built-in processor: Yes
- Processor frequency: 800 MHz
- Vibration function: Yes
Power
- Power source type: Battery
- Battery technology: Lithium-Ion (Li-Ion)
- Battery capacity: 2500 mAh
- Number of reads per charge: 50000
- Charging time: 2.25 h
Weight & dimensions
- Width: 66 mm
- Depth: 107 mm
- Height: 168 mm
- Weight: 225 g
Operational conditions
- Drop resistance: 1.8 m
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 5 - 95 %
- Operating temperature (T-T): 0 - 50 °C
- Storage relative humidity (H-H): 5 - 95 %
Technical details
- Warranty period: 3 year(s)
- Compliance certificates: Federal Communications Commission (FCC),Trade Agreements Act (TAA)
