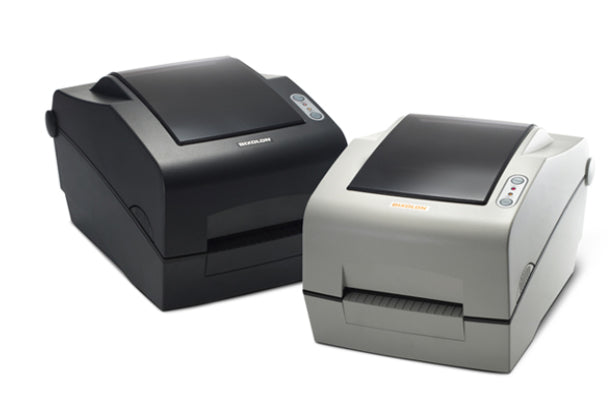

The SLP-TX400 is BIXOLON’s NEW direct thermal/thermal transfer label printer for 4 inch wide printing. This high-quality label printer features fast print speed up to 178mm/sec(7ips) and high compatibility based on perfect emulation support. The SLP-TX400 label printer has Smart Media Detection function which automatically recognizes various types of labels when loading labels.
Powerful Printing Performance
- Paper feeding speed up to 7ips(178mm/sec)
- High data processing speed of various labels including graphic data, vector font etc. (Fast processor 400MHz). Unicode supported
Smart Media Detection
- Smart Media Detection is the special function of SLP-TX400 to detect paper type automatically such as Gap Media, Black Mark Media and Short length Media paper. Easy operation by just pushing the Feed button.
Printing
- Print technology: Thermal transfer
- Colour: No
- Maximum resolution: 203 DPI
- Print speed: 178 mm/sec
- Printing colours: Black
- Maximum printing width: 108 mm
- Maximum print height: 1000 mm
Paper handling
- Ribbon width: 110 mm
- Ribbon length: 300 m
- Supported paper width: 25 - 116 mm
- Core diameter: 25.4 mm
- Maximum roll diameter: 130 mm
- Media thickness: 0.06 - 0.20 mm
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN: No
- Wi-Fi: No
- USB port: Yes
- USB 2.0 ports quantity: 1
- Parallel ports quantity: 1
- RS-232 ports: 1
- Optional connectivity: Parallel,Serial (RS-232),USB 2.0
Performance
- Page description languages: BPL
- Internal memory: 64 MB
- Flash memory: 128 MB
- Built-in barcodes: 1D,2D,AZTECCODE,CODABAR (NW-7),Code 11,Code 39,Code 49,Code 93,Code-128 Codabar Library,Data Matrix,EAN13,EAN8,GS1 DataBar,Industrial 2/5,Interleaved 2/5,MaxiCode,MicroPDF417,PDF417,POSTNET,QR Code,TLC39,UPC-A,UPC-E
Design
- Product colour: Grey
Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
Operational conditions
- Operating relative humidity (H-H): 5 - 40 %
- Storage relative humidity (H-H): -20 - 60 %
- Operating temperature (T-T): 10 - 80 °C
- Storage temperature (T-T): 10 - 90 °C
Weight & dimensions
- Width: 214 mm
- Depth: 310 mm
- Height: 195 mm
- Weight: 2850 g
Logistics data
- Harmonized System (HS) code: 84433210
Technical details
- Sustainability certificates: ENERGY STAR
Other features
- Navigation key: Yes
