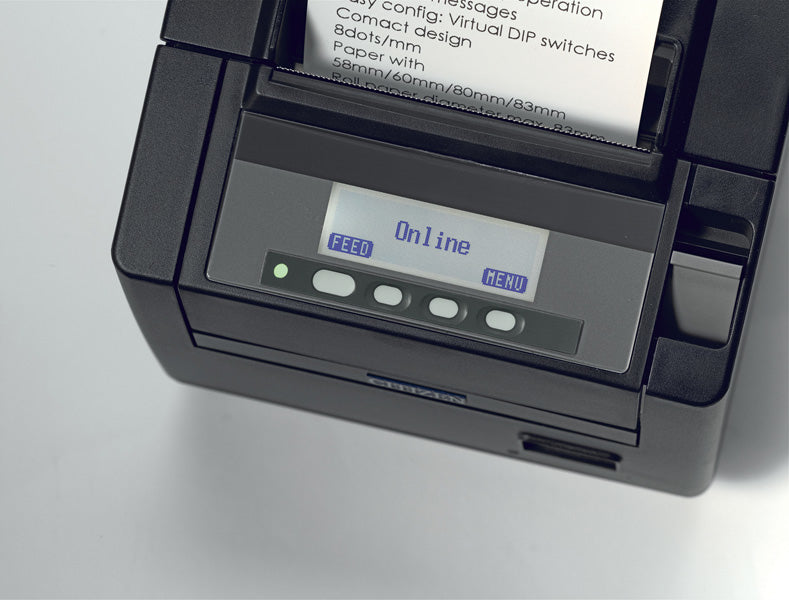

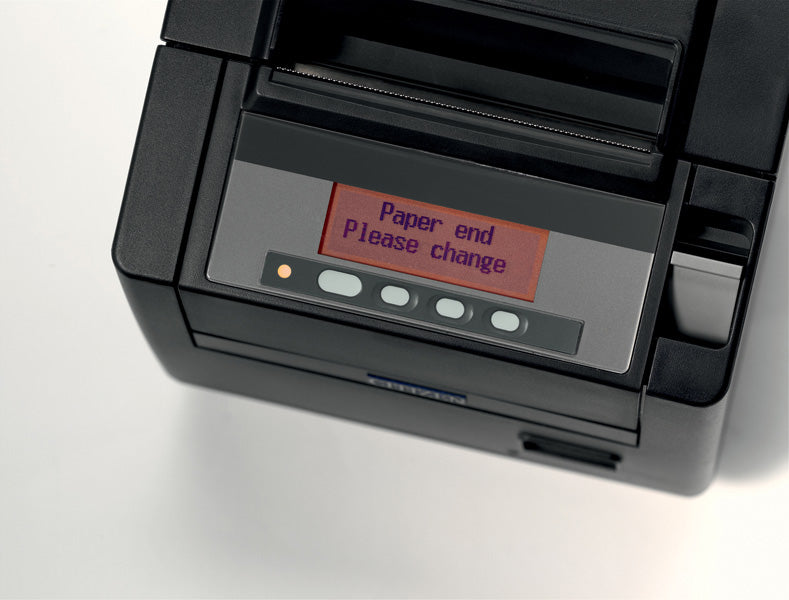

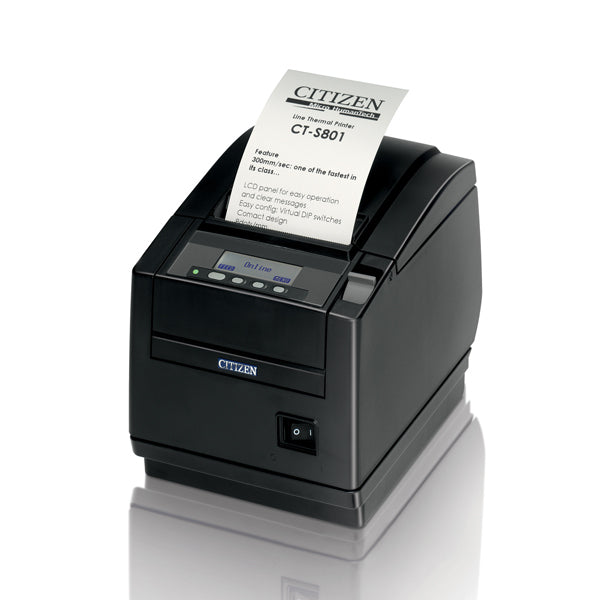

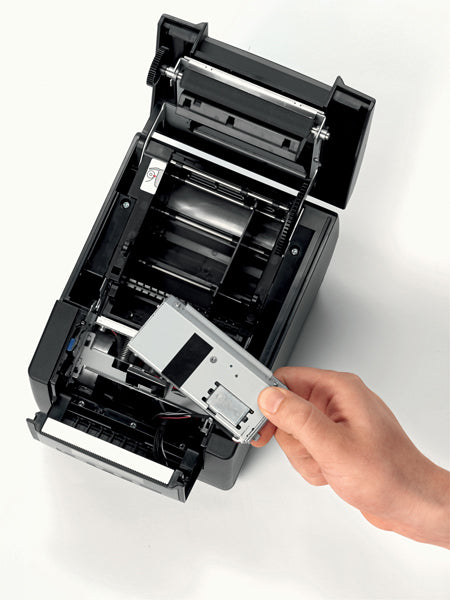

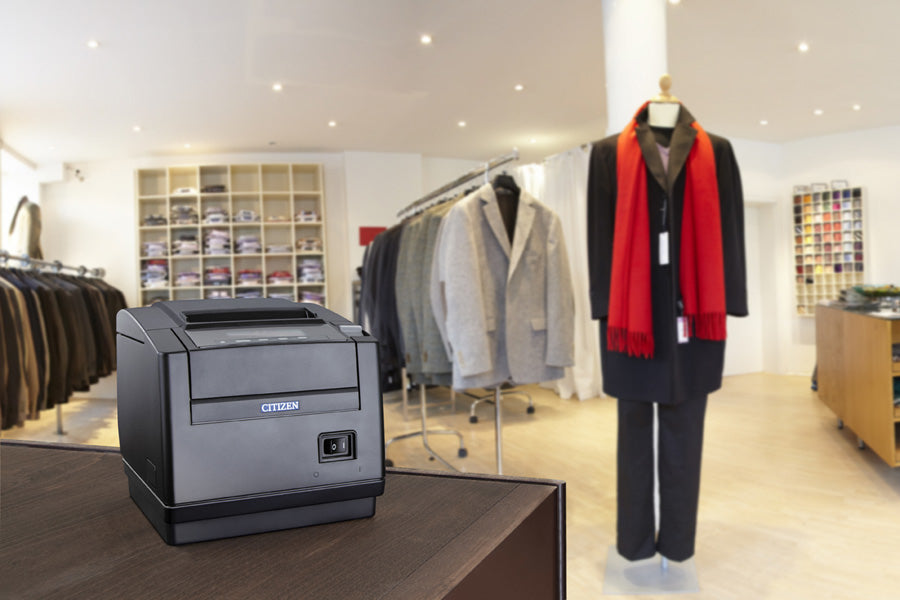

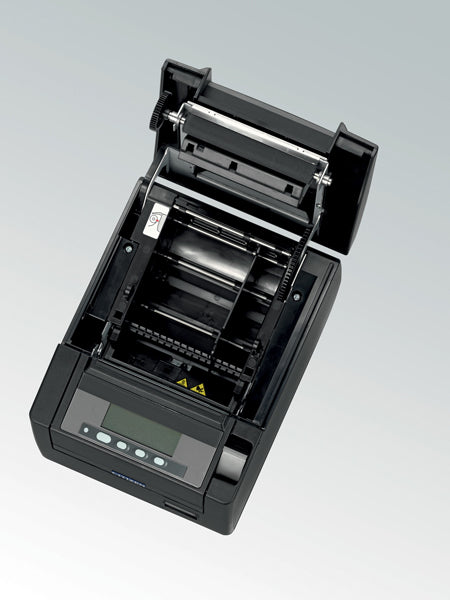

With a print speed of 300mm/sec, the CT-S801II originally set the standard for high speed POS printing and is still among the fastest machines in its class. Offering a top paper exit for retail applications, the CT-S801II has an advanced, two-colour backlit LCD, ensuring quick setup and total control of all print functions. Full error checking, with simple messages and on-screen help make operation fast and efficient - a benefit that is extended still further through features such as a soft-close cover and the self-retracting snap-in cutter.
Printing
- Print technology: Direct thermal
- Type: POS printer
- Maximum resolution: 203 x 203 DPI
- Print speed: 300 mm/sec
- Character size: 1.5 x 3 mm
- Character sets: Katakana,PC437,PC850,PC858,PC860,PC863,PC865,Thai code 18,WPC1252
Paper handling
- Maximum roll diameter: 83 mm
- Supported paper width: 80/83 mm
- Printing media thickness: 65-75/75-150 µm
Network
- Ethernet LAN: No
- Wi-Fi: No
Features
- Built-in barcodes: CODABAR (NW-7),Code 128 (A/B/C),Code 39,Code 93,PDF417,QR Code,UPC-A,UPC-E
- Flash memory: 0.384 MB
- Cutter: Yes
- Autocutter durability: 2 million cuts
- Ribbon life: 200 million characters
- Certification: UL, C-UL, FCC A, TUV-Bauart, CE
Design
- Product colour: Black
- Built-in display: Yes
- Display: LCD
Power
- Power source type: DC
- Power consumption (printing): 45 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
Operational conditions
- Storage temperature (T-T): -20 - 60 °C
- Storage relative humidity (H-H): 10 - 90 %
- Operating relative humidity (H-H): 10 - 90 %
- Operating temperature (T-T): 5 - 45 °C
System requirements
- Windows operating systems supported: Windows 2000,Windows Vista,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
Weight & dimensions
- Width: 145 mm
- Depth: 192 mm
- Height: 148 mm
- Weight: 2000 g
Logistics data
- Harmonized System (HS) code: 84433210
Technical details
- Sustainability certificates: ENERGY STAR
Other features
- Buffer size: 4 KB
